Extinguishing control panel. User manual
22 June 2011 16
Keyswitch installation
Replace the front cover label with the one supplied with the keyswitch.
To fit the key, remove nuts and washers from the cylinder lock and introduce the cylinder with
cables into the keyswitch hole (A) from the outside of the cover.
Keep the cylinder lock in its position,
completely fitted into the hole (A) and fit
washers and nuts from the inside of the
cover, through the cable up to their position
in the cylinder. Tighten with a proper wrench
until the cylinder cannot be moved.
Connect the cable to the switch (B) and
close the cover carefully making sure that
the cables do not get caught. Finally, fit the
cover to the rear box with mounting screws.

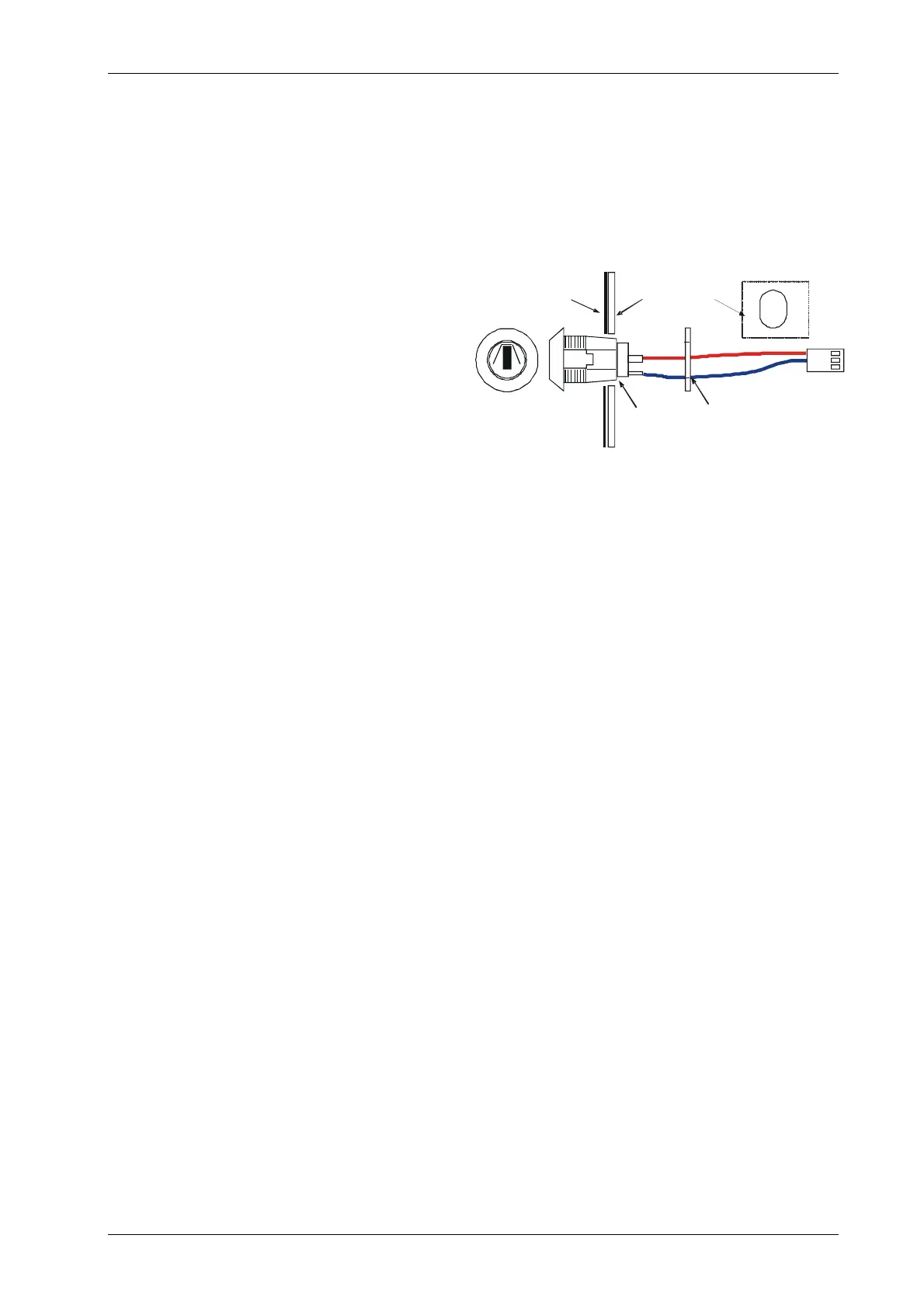

Front door
Cylinder plug
Nut
Hole (A)
Front panel
fascia
Connector
(B)
