Revision 1 SLN 700 SmartLine NCR Level Transmitter User’s Manual Page 9
For the conical vessel with a flat tank top, the best installation position of instrument is the top
center of the vessel, which ensures that the bottom of the container is measured.

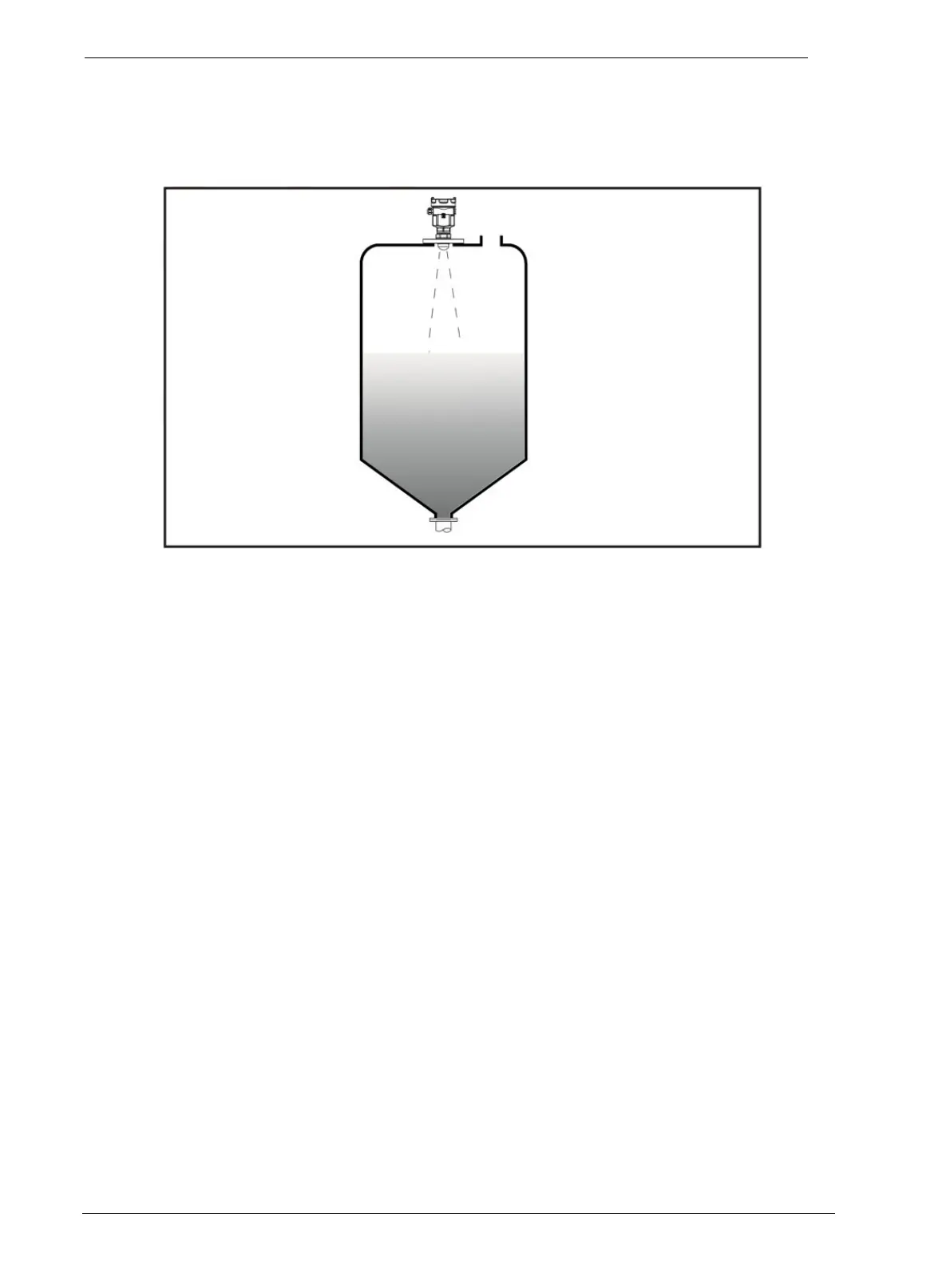

Figure 3-4: Conical vessel installation
