Revision 1 SLN 700 SmartLine NCR Level Transmitter User’s Manual Page 11

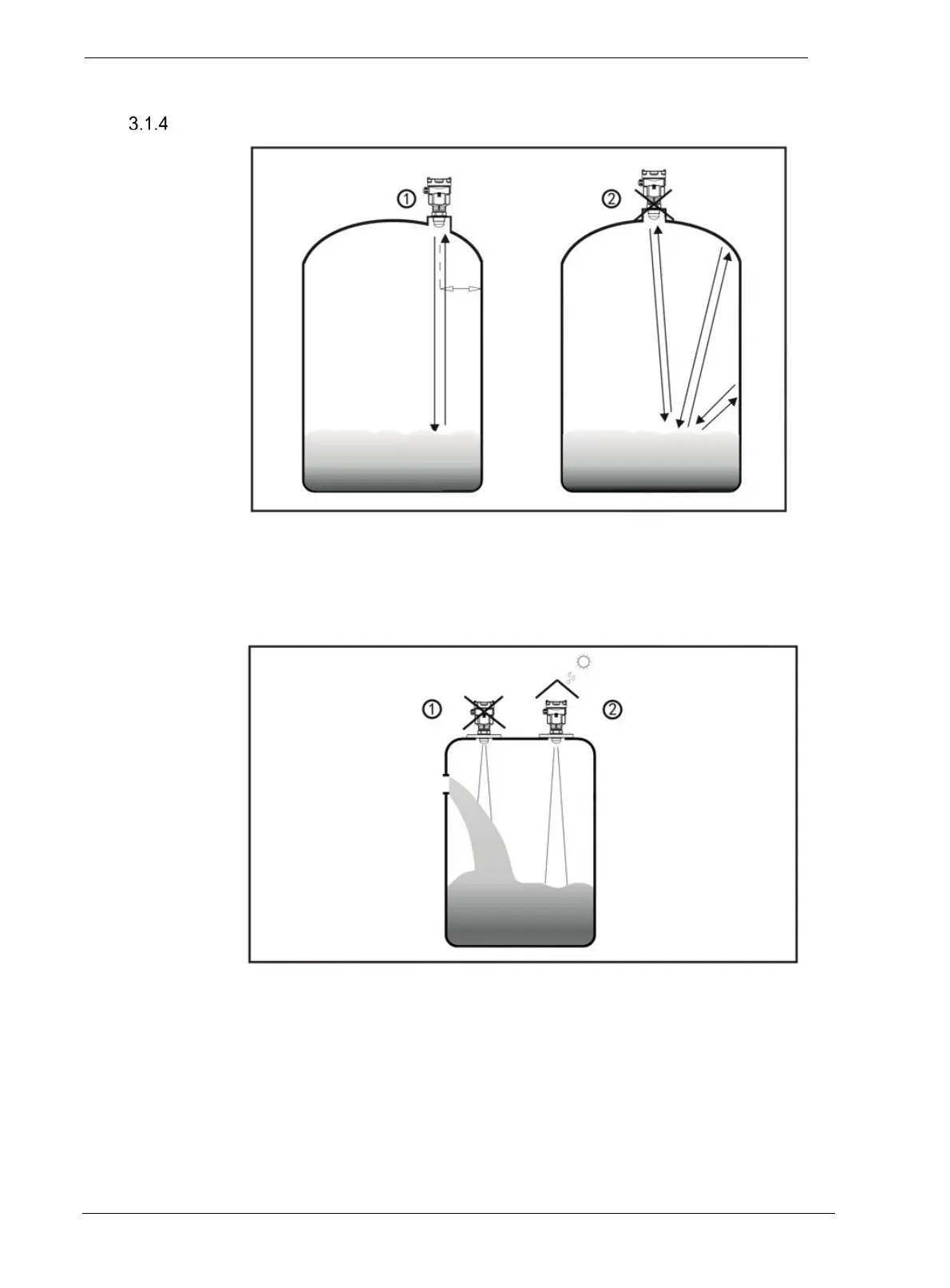

Correct and incorrect Installation position
1. Correct
2. Incorrect: Instruments are installed in the arched or round top of the tank, which will result in
multiple echoes. This should be avoided as much as possible during the installation.
Figure 3-6: Correct and incorrect installation position
1. Incorrect Instruments should not be installed above the fluid in-take , in order to ensure that the
dialectic surface will be detected rather than the charging material flow
2. Correct
Figure 3-7: Correct and incorrect installation position
Note: sun-shading and rain proof measures should be adopted for the outdoor
installationInstallation of reflecting plate
If there are barriers in the tank, the reflecting plate can be installed to reflect the echo wave away
from the sensor. If necessary, "virtual echo learning" can be turned on.
