SPM Flex Gas Detector
Sun shield

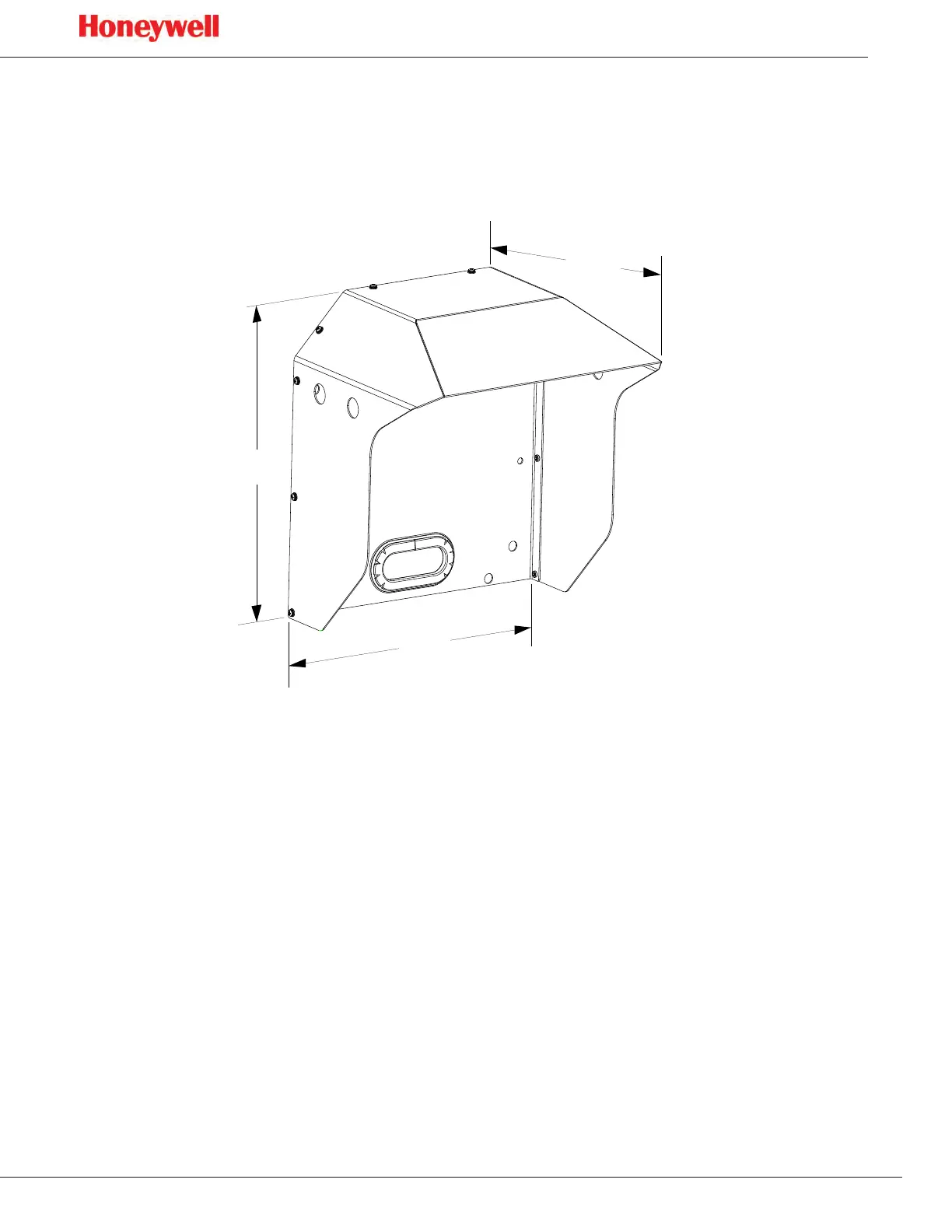

Figure 22 shows the sun shield for outdoor applications� The shield has three
sides, which protect the detector from the elements� It is designed to facilitate
convenient servicing of the detector� (The shield is not necessary for the
detector’s IP 65 rating�)
15.0 in.
38.1 cm
16.0 in.
40.6 cm
12.3 in.
31.2 cm
Figure 22. Sun shield
The detector, a standard bracket, and the sun shield can be mounted to a wall
using a minimum of 6 screws� If the backward-compatible mounting bracket is
used, at least 4 screws are necessary� When using either of the brackets, insert the
screws through the bracket, then through the inside of the sun shield, and then into
the wall� See “Specifications” on page 63 for a description of the appropriate
screws�
The optional sun shield can be used with either mounting plate�
