SPM Flex Gas Detector
Dimensions
6.4 in.
(16.3 cm)
9.5 in.
(24.1 cm)
7.2 in.
(18.3 cm)
12.3 in. (31.2 cm)
13.2 in.
(33.6 cm)

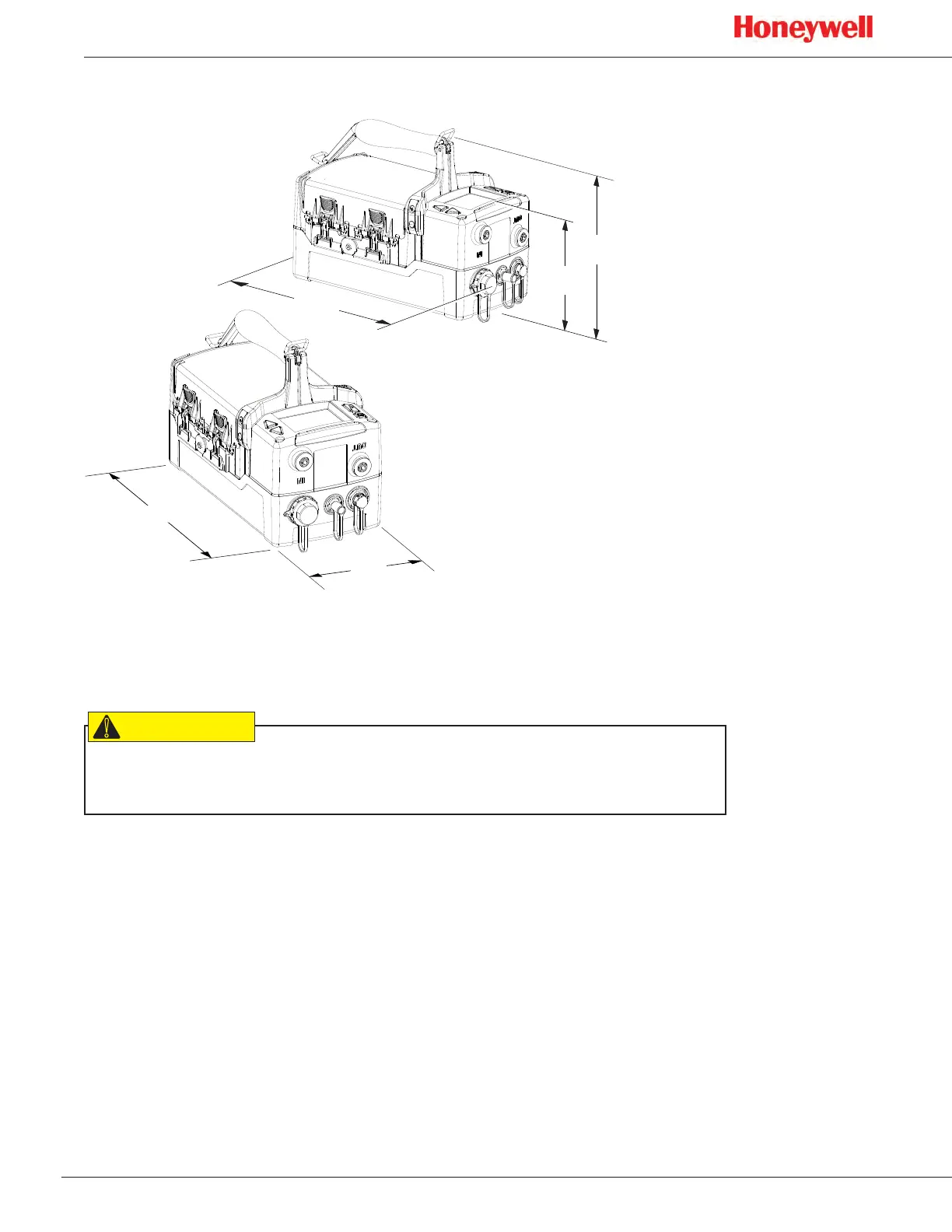

Figure 19. Dimensions of the detector
Mounting options
The SPM Flex detector must be installed only by qualified professional
personnel in accordance with local codes�
CAUTION
!
The SPM Flex gas detector has an optional mounting bracket assembly that is
easily affixed to a suitable vertical surface such as a wall, tool housing, mounting
plate on a pole etc�
Two mounting bracket options are available for fixed detectors: The standard
kit is for typical/new applications in which the detector is to be mounted to, for
example, a wall� A second option, a retrofit mounting, is a plate to be used when
replacing a Honeywell Analytics SPM detector with the SPM Flex detector�
Mount the detector with at least two appropriate fasteners (e�g�, concrete screws
when mounting on concrete, etc�)� The fastener combination must be capable of
securely holding four times the detector’s weight, approximately 40 lbs (18�2 kg)�
When mounting the detector on sheetrock, the fasteners must be attached to studs�
