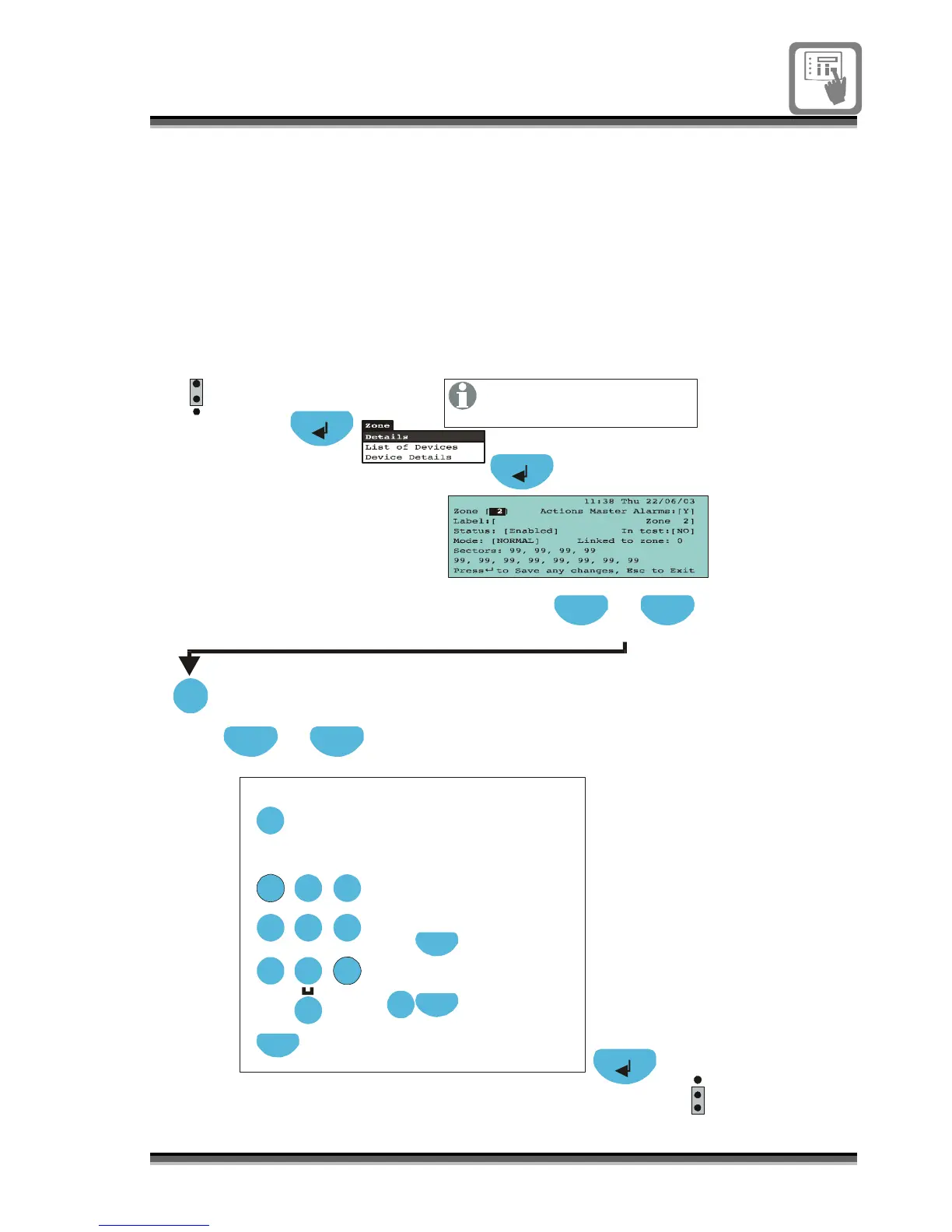

To edit a zone label
Each zone can have an individual 32 -
character label. A zone label is used to
describe the sub division of the protected
building where there is an event detected. In
the event of a fire the zone label is displayed
on the screen.
Enter access level 2 (A2) and use the
navigation buttons to highlight and
select options:
Press to select [Zone] field
Press select to change to a required
zone number
Previous Next
Select
A2
mi n
Press to select [label] field
Previous Next
Next
If necessary, press
Next to move to the
next character position.
Using the numeric keypad
enter the label.
ABC
DEF
GHI JKL
MNO
PQRS
TUV WXYZ
1 2 3
4 5 6
7
8 9
0
Edit
Press Edit button to
allow label editing.
To edit text in a field:
Each press of an alphanumeric
key will scroll character
string, eg each press of key 2 will
scroll characters: A B C 2 a b c.
Each press of key 1 will scroll
character string 1 ? , . ; & * /
Each press of key 0 will scroll
character string 0 ( ) : @ [ ]
Function
To copy text
Highlight a label
field and press
the Function key.
Function
To pas te text
Highlight a label
field and press edit and
then the Function key.
1
2
3
P1
EEPROM
enable
1
2
3
P1
EEPR
