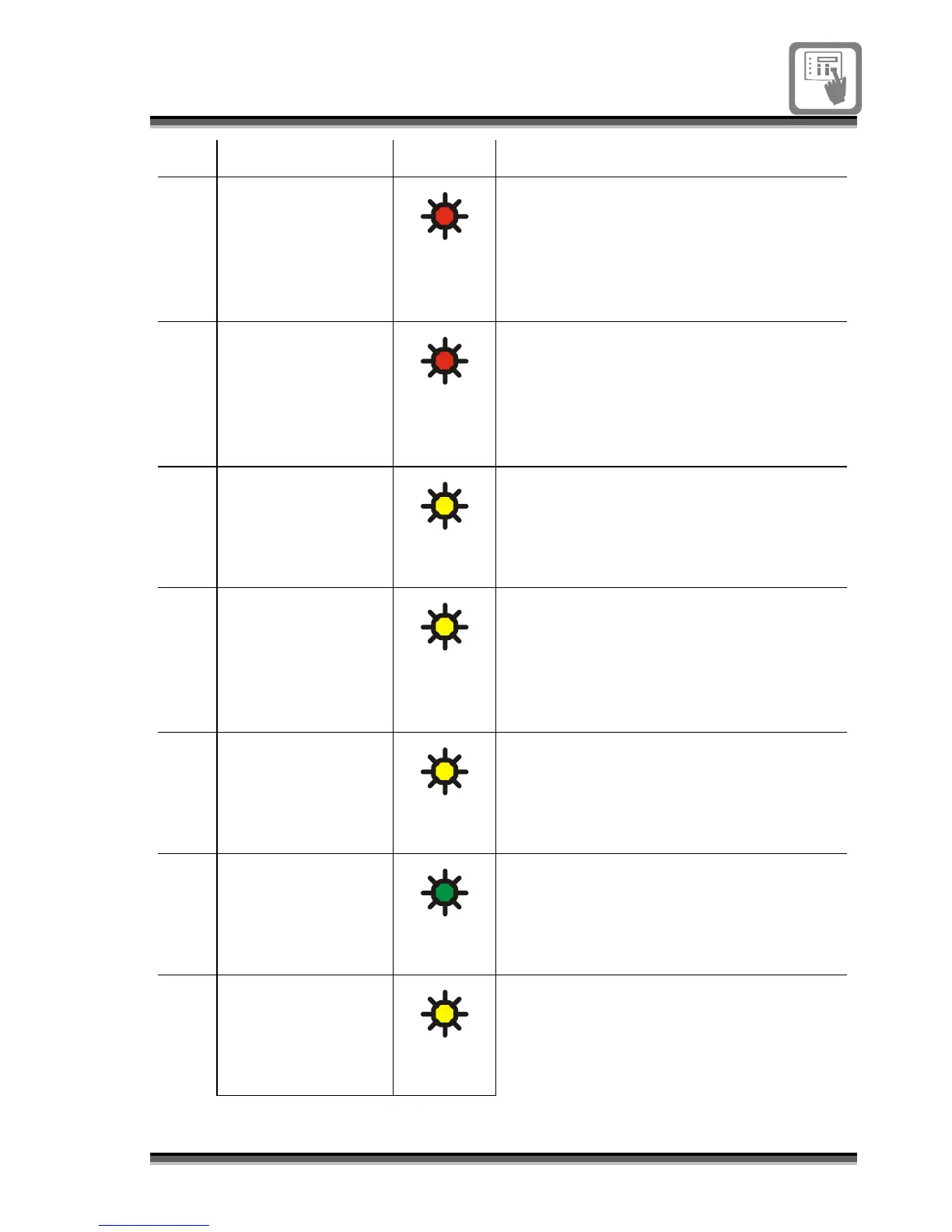

No. label light operation and meaning
17
Fire Protection
Activated
(red)
STEADY – The fire protection
output (fixed extinguishing) is
active.
OFF – The fire protection output is
not active.
18
Pre Alarm
(red)
STEADY – There is at least one
coincidence zone / device in pre-
alarm.
OFF – There is no zone / device in
coincidence fire.
19
Delay
(yellow)
STEADY – The delay mode is
active.
OFF – The delay mode is not
active.
20
Verification
(yellow)
STEADY – The verification delay is
active and alarms are being
delayed from sounding.
OFF – The verification delay is not
active.
21
Fault
(yellow)
STEADY – There is at least one
fault in the system, view the fault log
for details, see page 18.
OFF – There are no faults.
22
Power
(green)
STEADY – The mains and battery
supplies are healthy.
OFF – There is no mains supply
nor battery supply at the panel.
23
System fault
(yellow)
STEADY – There is a system fault
(Micro failure and non-volatile
memory corruption).
OFF – There is no system fault.
