5.1.4 Remove the workstation from an Icon Series console
To remove the workstation from an Icon Series console
1. Shut down the Windows operating system before you turn off power to the workstation.
2. Turn off power to the workstation if it has a separate power switch, and disconnect the AC power
cord.
3. Turn off power to the console station.

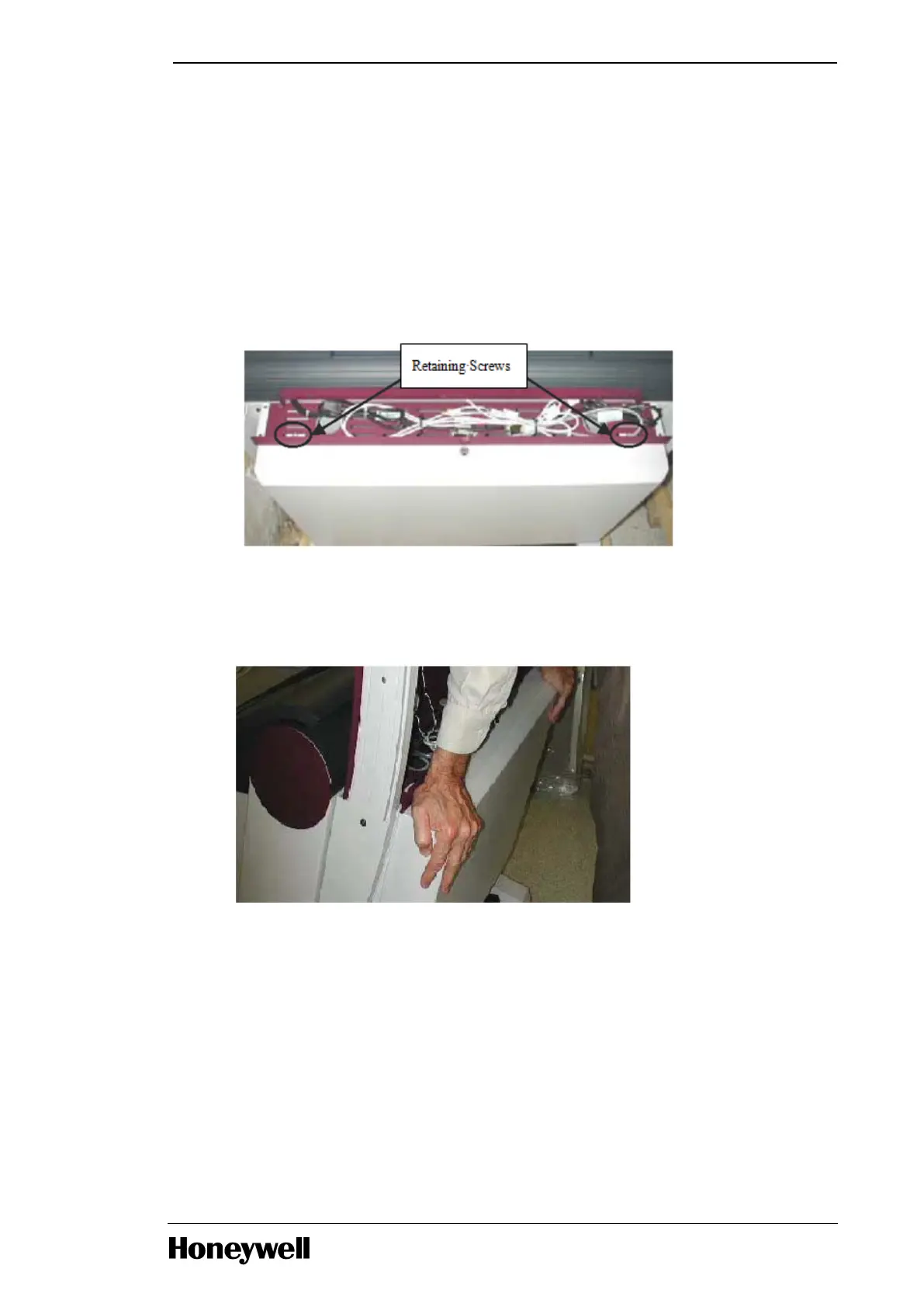

4. From the back of the console, remove the two retaining screws that secure the electronic enclosure
to the lower valance.
5. If you have the Power Work surface version, stand to the side, the enclosure lowers atomically. Use
the key to unlock the electronics enclosure and open the latch.
If you have an earlier version of Icon Series console, hold the top of the electronic enclosure and
push down to open it and guide it down to the floor.
6. Disconnect the cables that are connected to the back panel connectors of the workstation. Do not
disconnect the peripheral ends of the cables unless specifically instructed to do so. Tag the cables
- 71 -
Chapter 5 - Servicing
