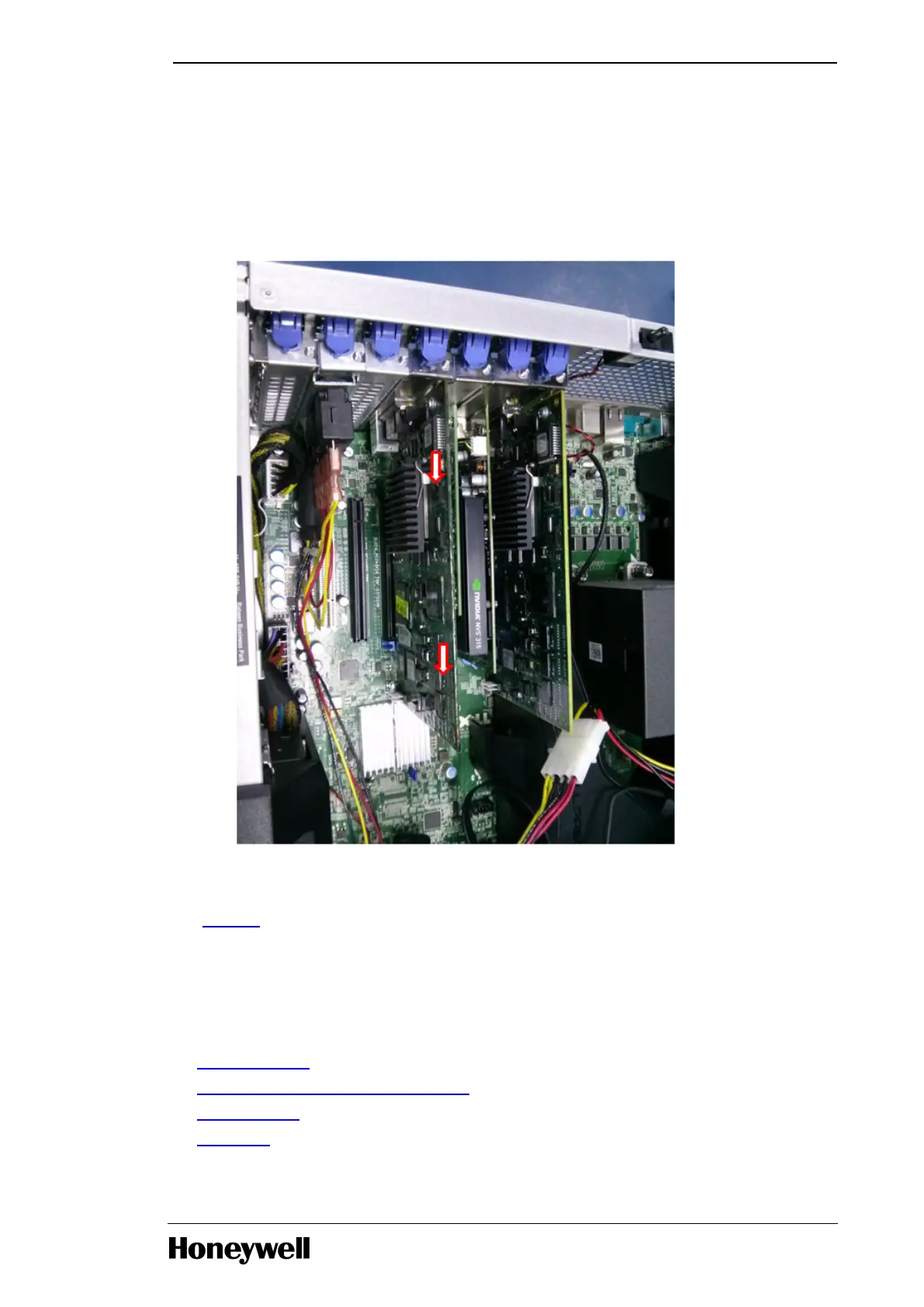

5.5.2 To install the second video card for quad video
1. Remove the side cover of the workstation.
2. Locate the PCI slot 4. Press the blue color notch and push the cardholder back.
3. Remove the PCI slot 4 filler.
4. Insert the second LCNP4E / LCNP4e2 card.
5. Replace the cardholder and ensure that the tab locks in its place.
6. Replace the workstation cover and place the workstation in the furniture. Refer to the section,
Installing for installing the workstation in the furniture.
5.6 Verifying BIOS settings
Honeywell configures specific BIOS settings in the factory for each workstation platform configuration,
and this setting must not be altered. BIOS settings for the workstations are listed in this section.
l Entering the BIOS
l BIOS settings for workstations with Tab 100
l Exiting the BIOS
l Spare parts
- 89 -
Chapter 5 - Servicing
