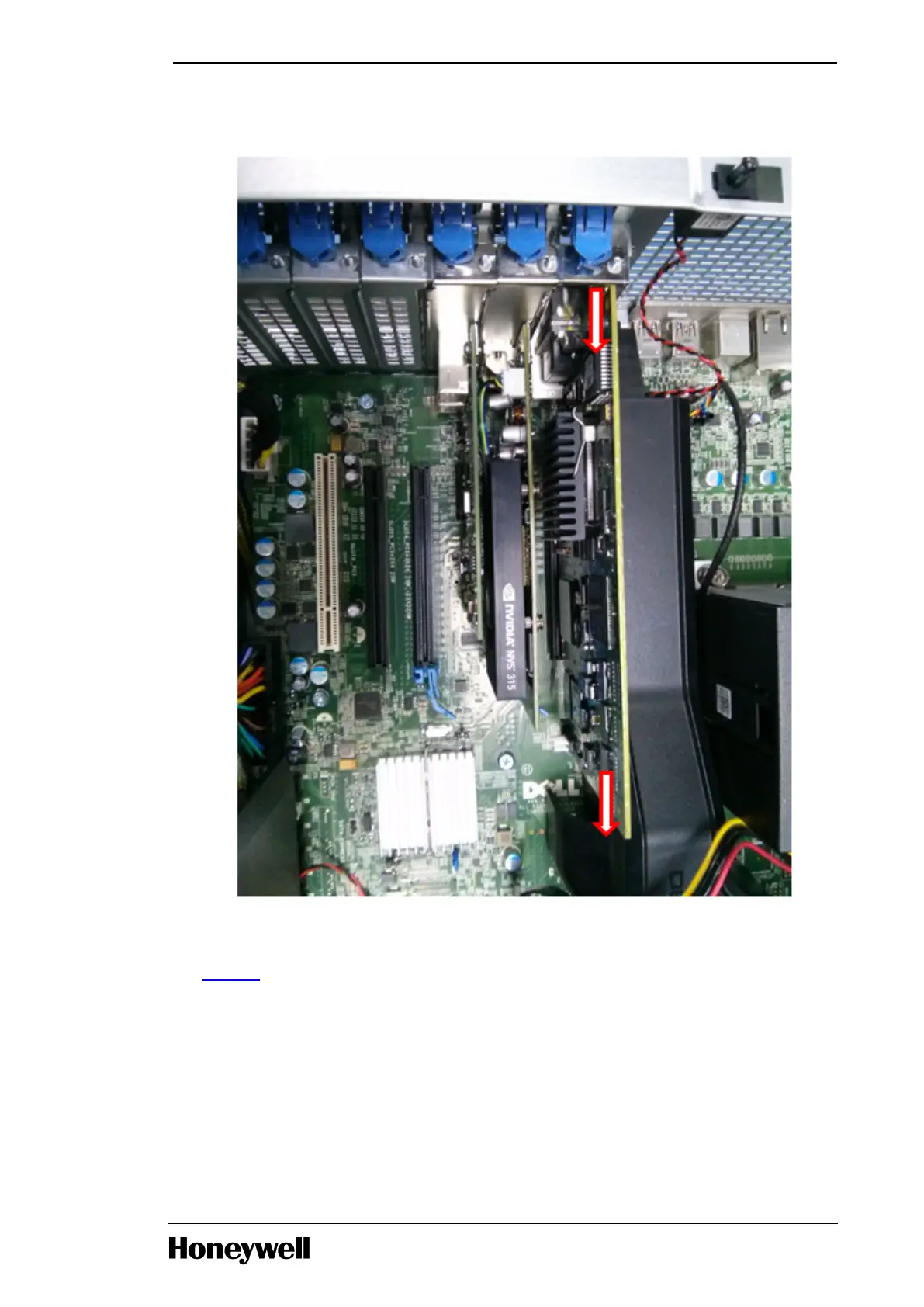

4. Insert the replacement LCNP4E / LCNP4e2 board assembly in the PCIe slot 1 as illustrated in the
following image.
5. Replace the cardholder and ensure that the tab locks in its place.
6. Replace the workstation cover and place the workstation in the furniture. Refer to the section
Installing for installing the workstation in the furniture.
7. Reconnect the LCN MAU cable.
8. Turn-on the workstation and log into the operating system.
5.3 Replacing/adding optional components
This section provides instructions for adding or replacing optional components in the workstation. The
video card is located in the PCI-E slot 2 in the workstation.
- 77 -
Chapter 5 - Servicing
