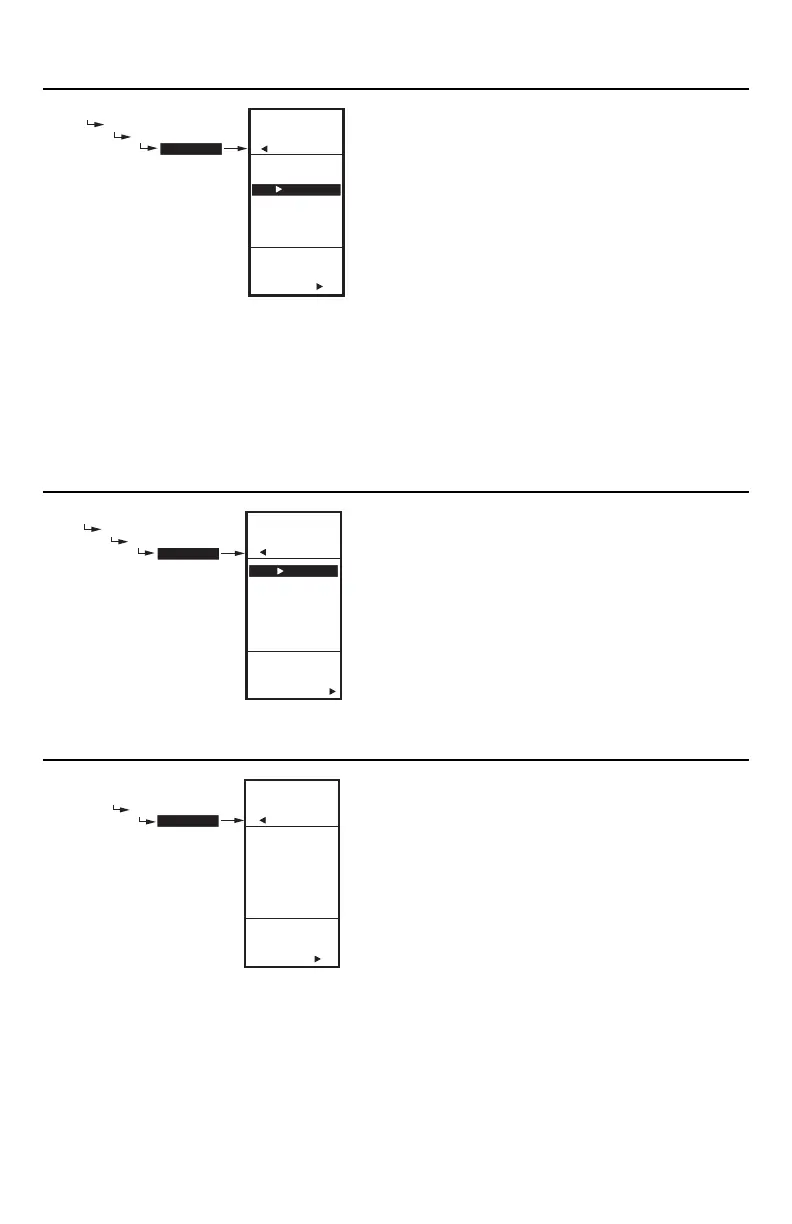

Fig. 61. Setup - Outputs - Mod Out - Reset.
3.3.3.1.6. RESET
This selection enables the controller’s Reset function, and
allows each output to be individually programmed for
Reset or No Reset.
IMPORTANT
To use the Reset function of the controller, the
first output (MOD1 or Relay 1 depending on the
model) must be set for Reset here.
The RESET choice is offered for all outputs in setup
mode, and you can set any or all of them for Reset=YES
or Reset=NO. The default is Reset=NO.
For the remaining outputs, if Reset=YES, then these
outputs use the reset curve programmed for the first
output.
1. From the Mod menu, use the  and  buttons to
highlight RESET.
2. Use the  and  buttons to highlight the desired
value.
Default: NO
3. Press the  button to accept the selection and
return to the Mod menu.
Fig. 62. Setup - Outputs - Mod 1/2- Hide.
3.3.3.1.7. Hide
The Hide option is used to prevent the MOD 1 and MOD 2
outputs from displaying on the Home screen.
1. From the Mod menu, use the  and  buttons to
highlight HIDE.
2. Use the  and  buttons to highlight YES or NO.
Default: YES
3. Press the  button to accept the selection and
return to the MOD menu.
NOTE: The MOD1 and MOD2 outputs are still active
even when hidden from the Home screen.
Fig. 63. Setup - Outputs - Number of Relays.
3.3.4. NBR OF RELAYS
1. From the Outputs menu, use the and  buttons
to highlight # RELAYS.
2. Press the  button to display the number of relays.
3. Use the  and  buttons to display the number
from 1 to 4 depending on the model. (See note
below).
4. Press the  button to accept the value and display
the Outputs menu.
NOTES:
1. The T775R models have the following outputs
available:
(a)T775R2001 up to 4 relay outputs
(b)T775R2019 up to 4 relay outputs
(c)T775R2027 up to 2 relay outputs
(d)T775R2035 up to 2 relay outputs
(e)T775R2043 no relay outputs
2. The number of relays entered here display on
the home screen.
