Page 12 Connecting the Cables
jumper JP3
pin 1-2 = MAG-TEK
pin 2-3 = Proxy
keyboard cable
(4 rightmost keys)
connection with
LCD controller
lamp cable for rear-
lighting of LCD
jumper JP2
pin 1 -2 = MAG-TEK
pin 2-3 = bidirectiona
serial interface
TemaServer mother
board connection
keyboard cable
(4 leftmost keys)
keyboard cable
(6 central keys)
4x4 keyboard
(optional)

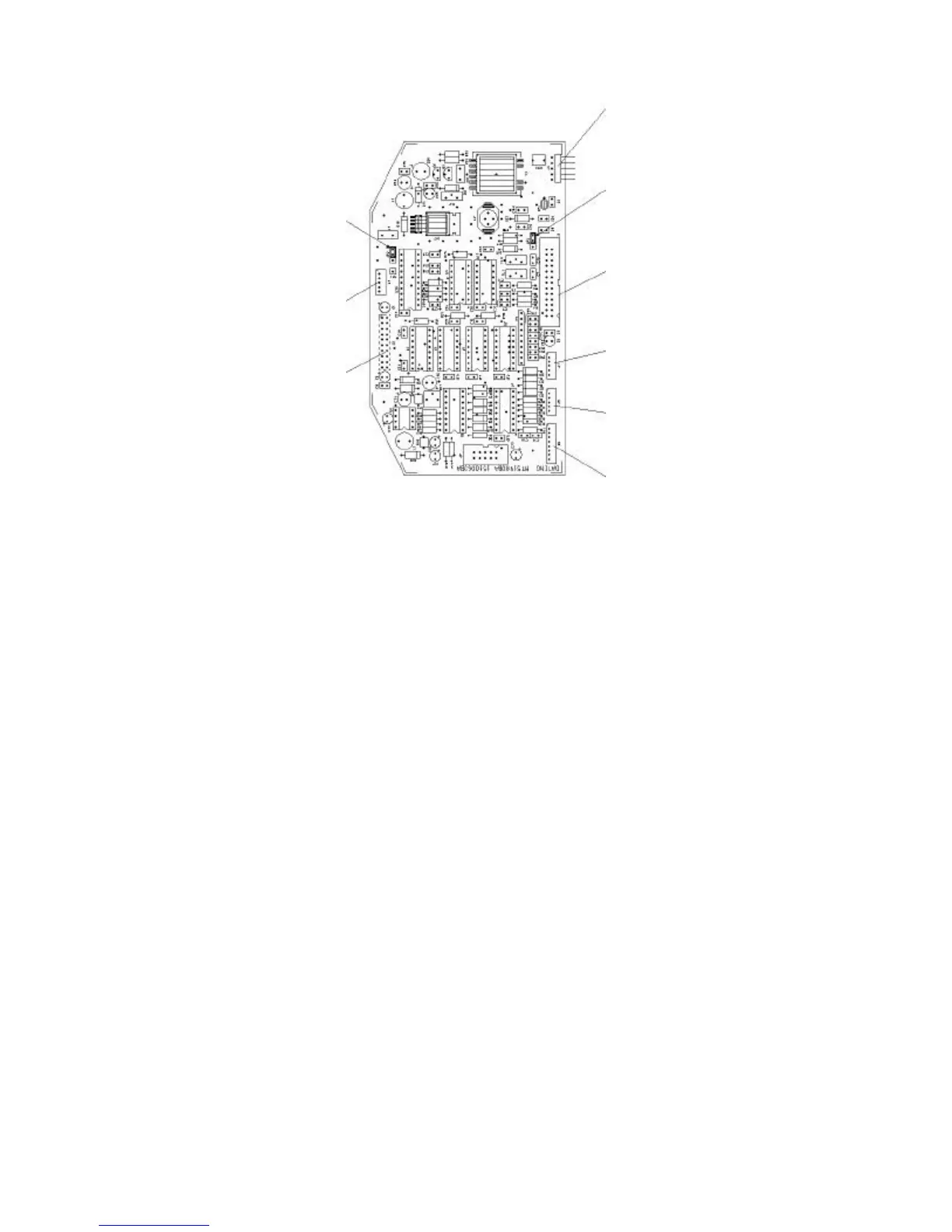

Figure 9: Display board details
