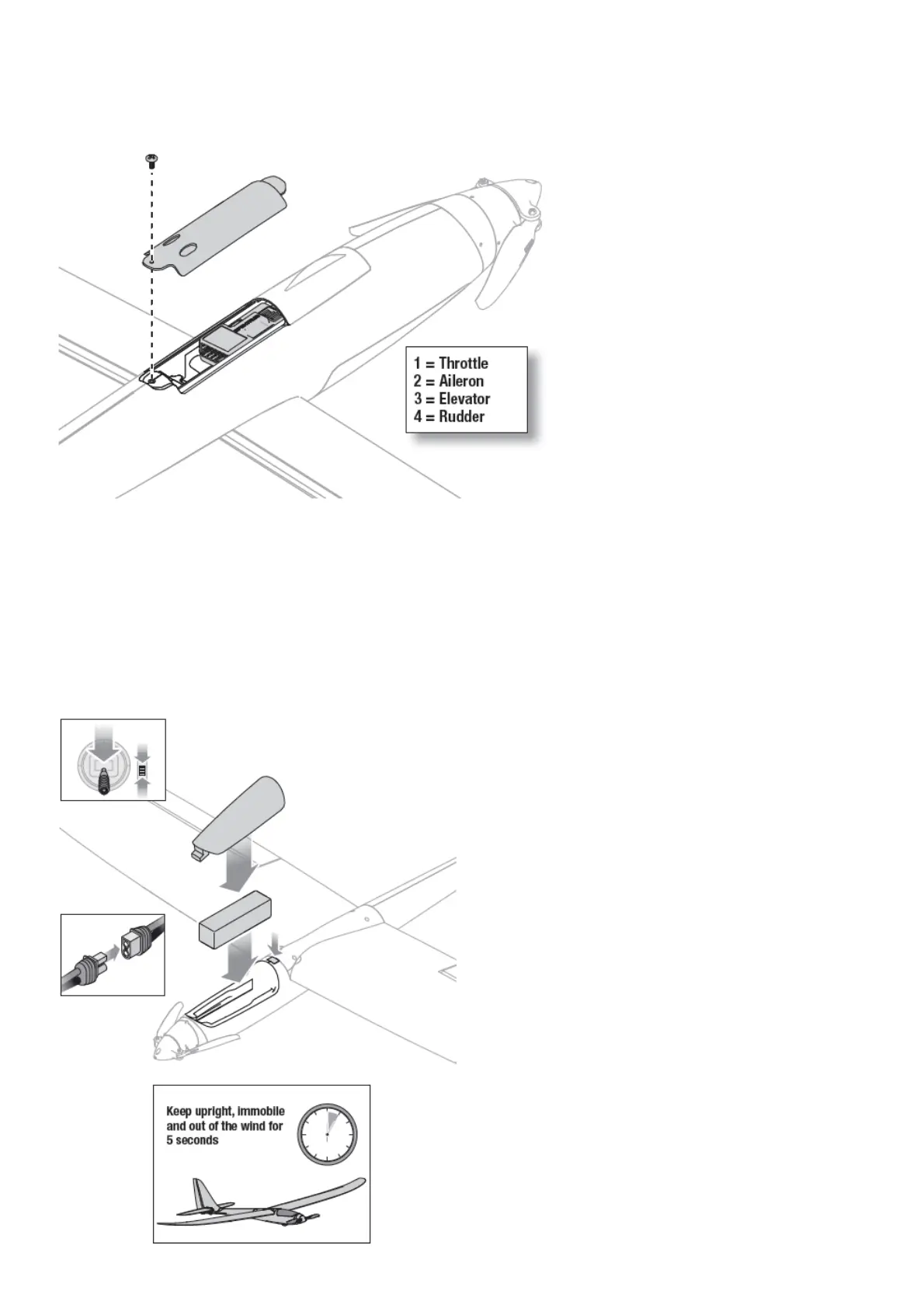

3. Using double-sided servo tape, mount the receiver to the flat area ahead behind the ESC, as shown. The
receiver should be mounted in the orientation shown, parallel to the length of the fuselage, with the label facing
down and the servo ports facing the rear of the aircraft. The orientation of the receiver is critical for all AS3X®
and SAFE® technology setups.
Battery Installation and ESC Arming
CAUTION: Always disconnect the Li-Po flight battery from the aircraft receiver when not flying to avoid over-
discharging the battery. Batteries discharged to a voltage lower than the lowest approved voltage may become
damaged, resulting in loss of performance and potential fire when batteries are charged.
CAUTION: Always keep hands away from the propeller. When armed, the motor will turn the propeller in response to
any throttle movement.
