PNP Receiver Selection and Installation

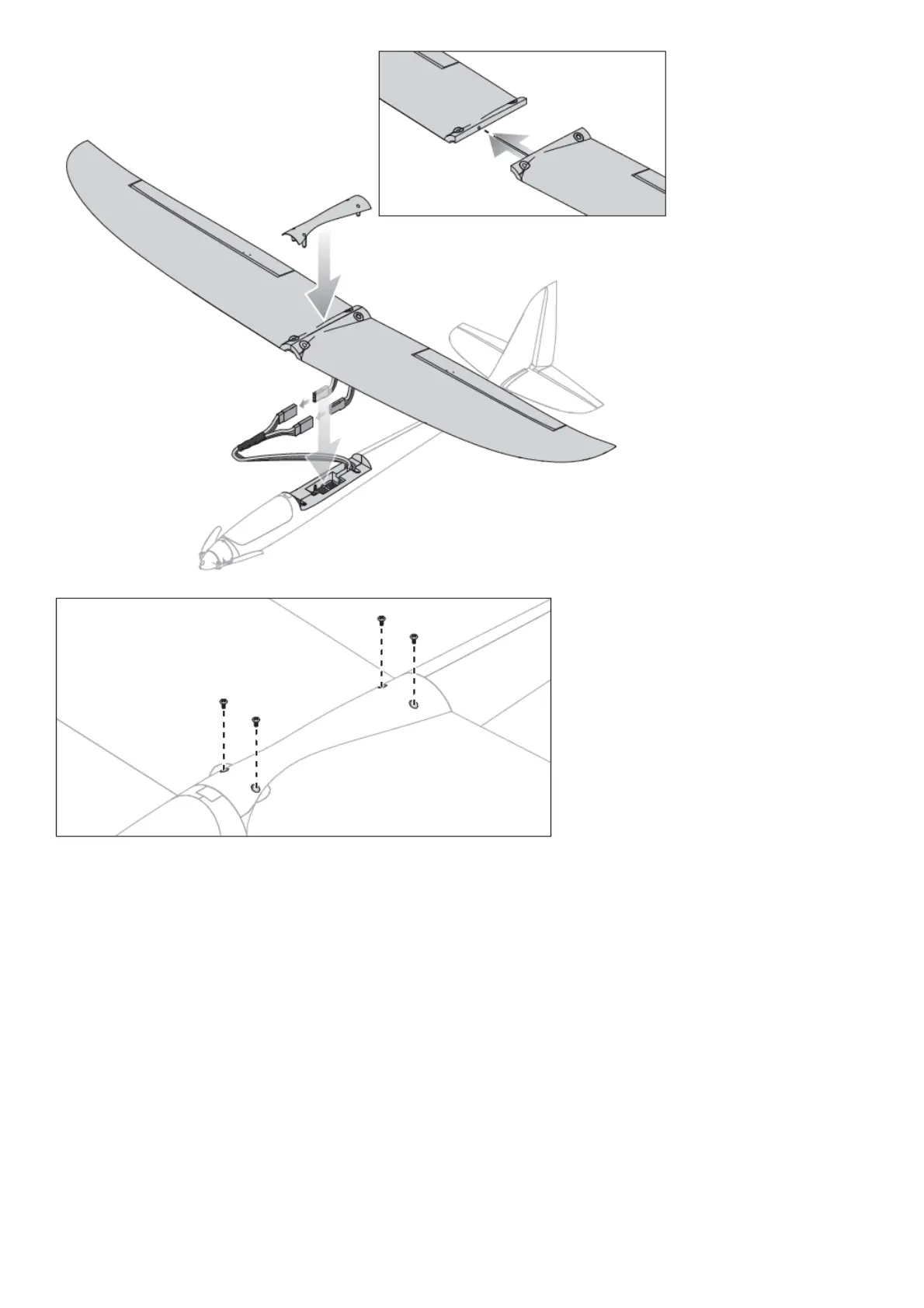

Wing Installation continued
1. Slide the wing halves together on the wing tube.
2. Install the plastic center cap on the center of the wing.
3. Connect the aileron servos to the Y-harness. The left and right aileron servos can be connected to either side of
the Y-harness.
4. Be sure not to pinch the wiring between the wing and fuselage and when you install the wing, .
5. Tighten the four 12mm x 3mm machine screws to secure the wing assembly to the fuselage.
6. Disassemble in reverse order.
The recommended receiver for this aircraft is the Spektrum AR637T.
If you choose to install a different receiver, it needs to be a 4 channel or more full range (sport) receiver. Refer
to the manual of your chosen receiver for correct installation and operation instructions.
AR637T Installation
1. Remove the hatch on the bottom of the fuselage.
2. Attach the appropriate control surfaces to their respective ports on the receiver using the table at the right.
