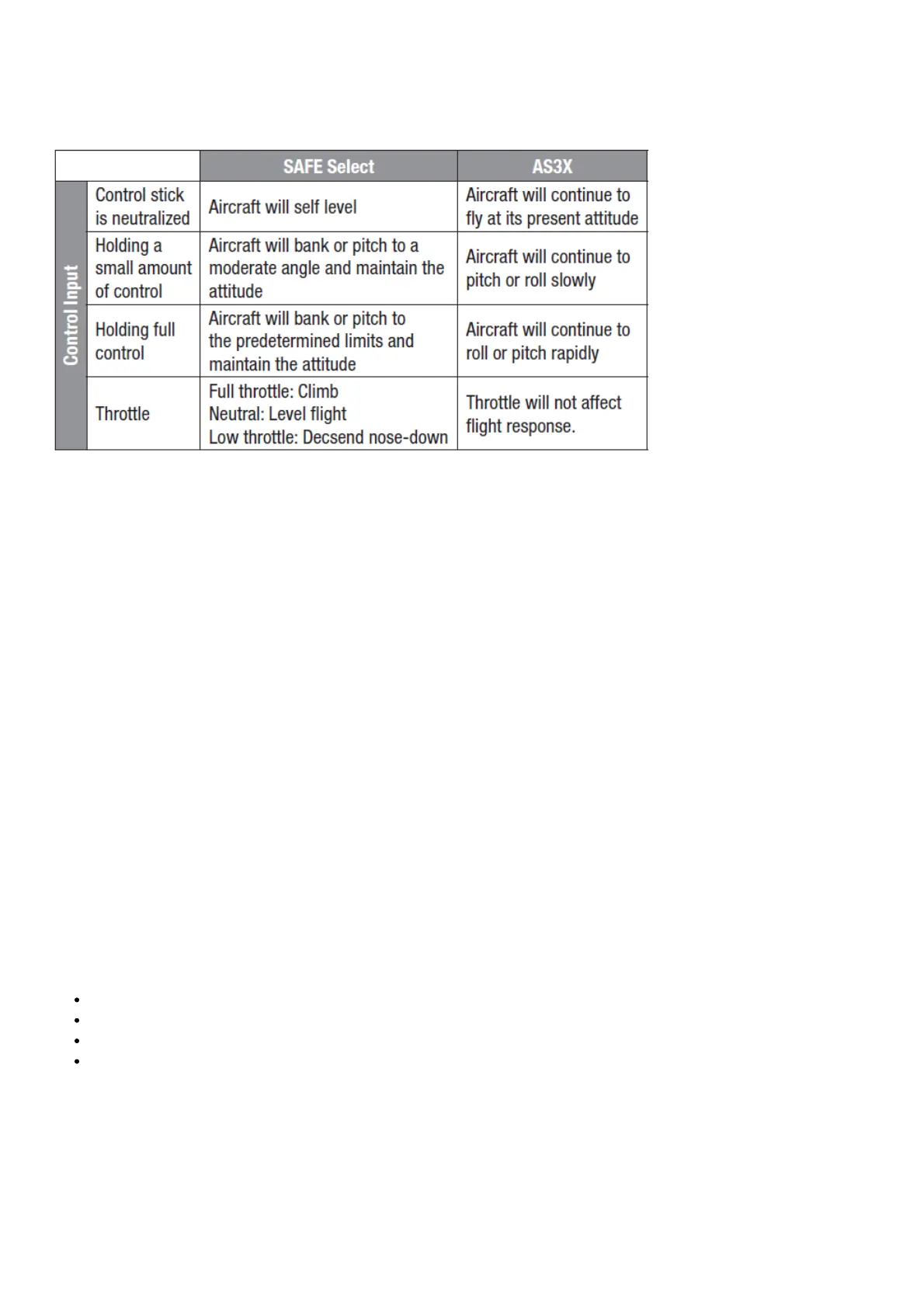

Differences between SAFE Select and AS3X modes
This section is generally accurate but does not take into account flight speed, battery charge status, and other
limiting factors.
Post Flight
1. Disconnect the flight battery from the ESC (Required for Safety and battery life).
2. Power OFF the transmitter.
3. Remove the flight battery from the aircraft.
4. Recharge the flight battery.
5. Repair or replace all damaged parts.
6. Store the flight battery apart from the aircraft and monitor the battery charge.
7. Make note of the flight conditions and flight plan results, planning for future flights.
Power Components Service
CAUTION: Always disconnect the flight battery before performing service on any of the power system components.
Disassembly
1. Remove the 3mm machine screws from the spinner.
2. Remove the folding propeller from the motor.
3. Remove the four 2mm self tapping screws from the cowl, remove the cowl.
4. Remove the four screws securing the motor mount to the fuselage
5. Remove the four 3mm screws from the back of the motor to remove the motor mount.
Assembly
Assemble in reverse order.
Correctly align and connect the motor wire colors with the ESC wires.
Ensure the spinner is fully secured for safe operation.
Ensure no wiring is pinched by any of the power components.
