Hydraulics
WARNING
Unintentional hydraulic movements may lead to
severe accidents and injuries!
¾ Secure or lock the control units on the tractor.
¾ Instruct persons to leave the slewing range of
foldable machine parts.
¾ Switch all control units to the locked position
before switching on the tractor again.
¾ Connect the hydraulic lines only when the
hydraulics have been de-pressurized on both
machine and equipment sides.
NOTE
¾ Operate the machine with mineral-based
hydraulic oil.
Do not mix mineral oils with organic or ester
oils!
The hydraulic circulation of the tractor must
contain mineral-based hydraulic oil.
¾ Oil purity acc. to ISO 4406: 18/16/13
¾ Always plug in all hydraulic lines! Otherwise
components may get damaged because of
interrelated functions.
¾ Ensure cleanliness and tight t of all plug-and-
socket connections!
¾ Observe the notes on hydraulics and pressure
accumulator in chapter Safety and responsibility!

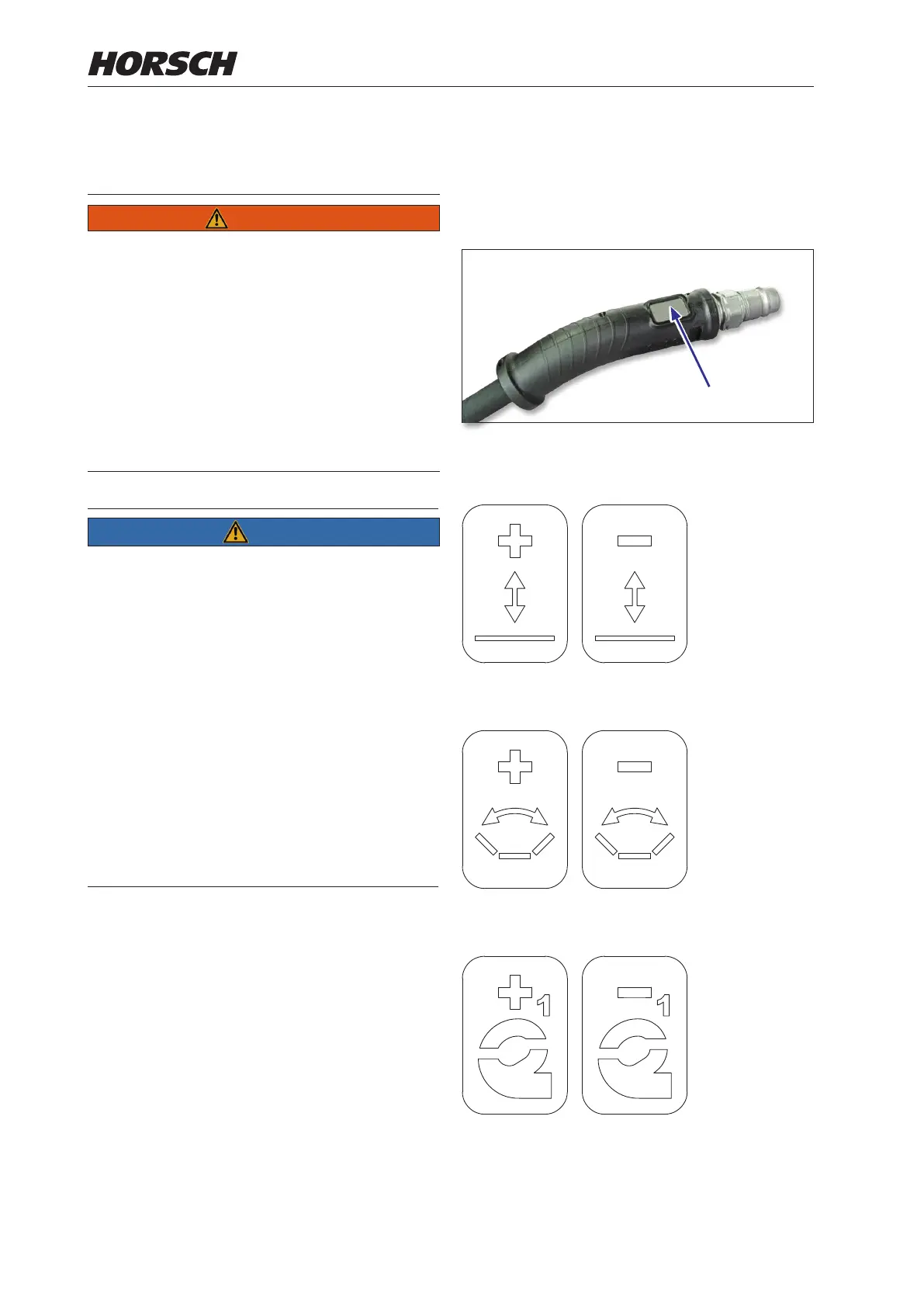

Marking of hydraulic hoses
Symbols on the handles of the hydraulic cou-
plings indicate the function of the respective
hoses:
Lift / lower
Unfolding / Folding in
Fan 1
24
