horsch Sprinter 18 NT - Lighting

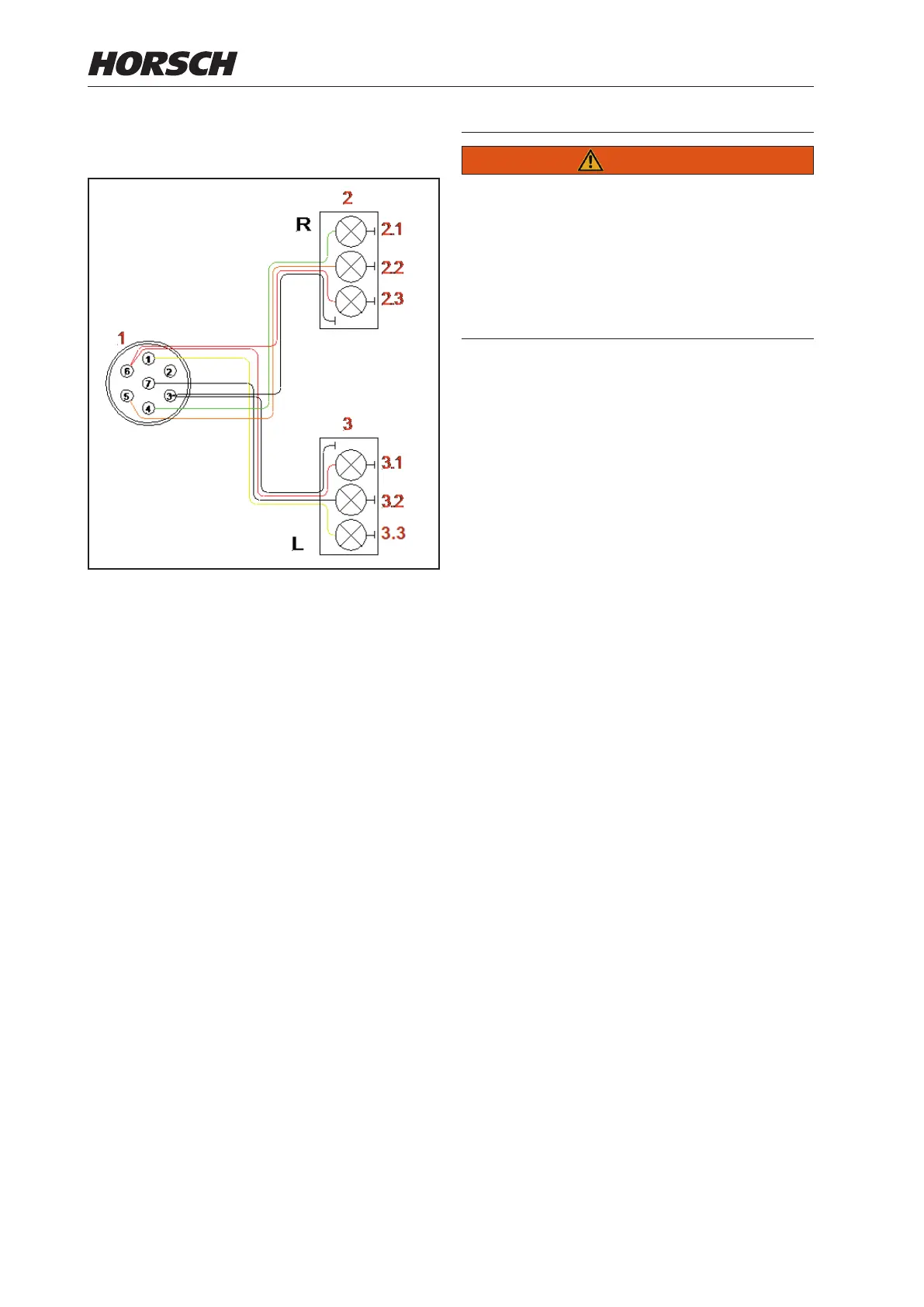

Lighting
1 7-pin plug
2 Rear light, right
2.1 Lamp, blinker
2.2 Lamp, taillight
2.3 Lamp, brake light
3 Rear light, left
3.1 Lamp, brake light
3.2 Lamp, taillight
3.3 Lamp, blinker
Plugs and cable assignment
No. Desig. Colour Function
1 L yellow Blinker left
2 54 g --- ---
3 31 white Earth
4 R green Blinker right
5 58 R brown Rear light, right
6 54 red Brake light
7 58 L black Rear light, left
WARNING
Tra󰘲c accidents caused by defective lighting.
¾ Ensure cleanliness and tight 󰘰t of the plug-
and-socket connections.
¾ Check the lighting before setting o󰘯.
¾ Check warning boards and lighting equipment
for cleanliness.
