a
b

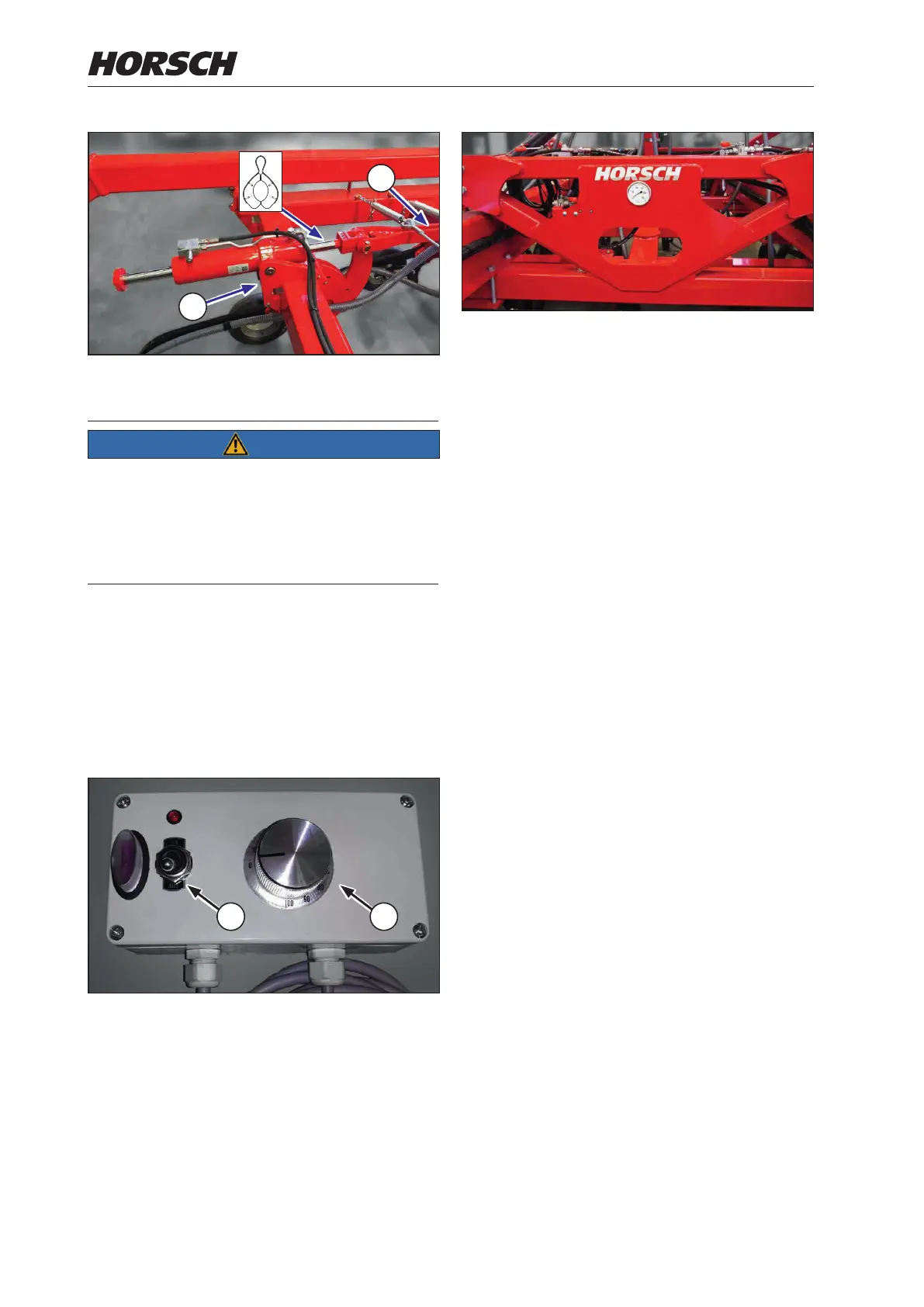

(a) Bracket for aluminium clips not needed
(b) Push rod
NOTE
¾ Insert the clips in the guide with the spring
pointing up so that the clips cannot twist or
fall out.
¾ Place the same number and colour of clips
on all hydraulic cylinders.
Adjusting the coulter pressure
The coulter pressure is adjusted dierently de-
pending on working with the machine:
• with seed wagon via terminal / E-Manager
• without seed wagon via separate box in the
tractor cab:
a b
Box for coulter pressure adjustment
(a) ON/OFF switch
(b) Adjustment wheel
¾ Set the coulter pressure while the fan is run-
ning and check it on the pressure gauge.
Pressure gauge coulter pressure
Coulter pressure too high:
¾ The rollers may sink especially into loose soil
or experience unnecessary loads.
• The rear support wheels are lifted temporarily
or constantly.
coulter pressure too low:
• The placing depth is not ensured. The tine is
not kept steady in the soil.
• The seed is not suciently covered or pressed
down.
38
