Hoshizaki MODULAR CUBELET SERENITY SERIES FS-1022MLH-C User Manual

19
3. Controls and Adjustments
CAUTION
Dip switches are factory set. Failure to maintain factory settings may adversely
affect performance and warranty coverage. For more information, contact
Hoshizaki Technical Support at 1-800-233-1940.

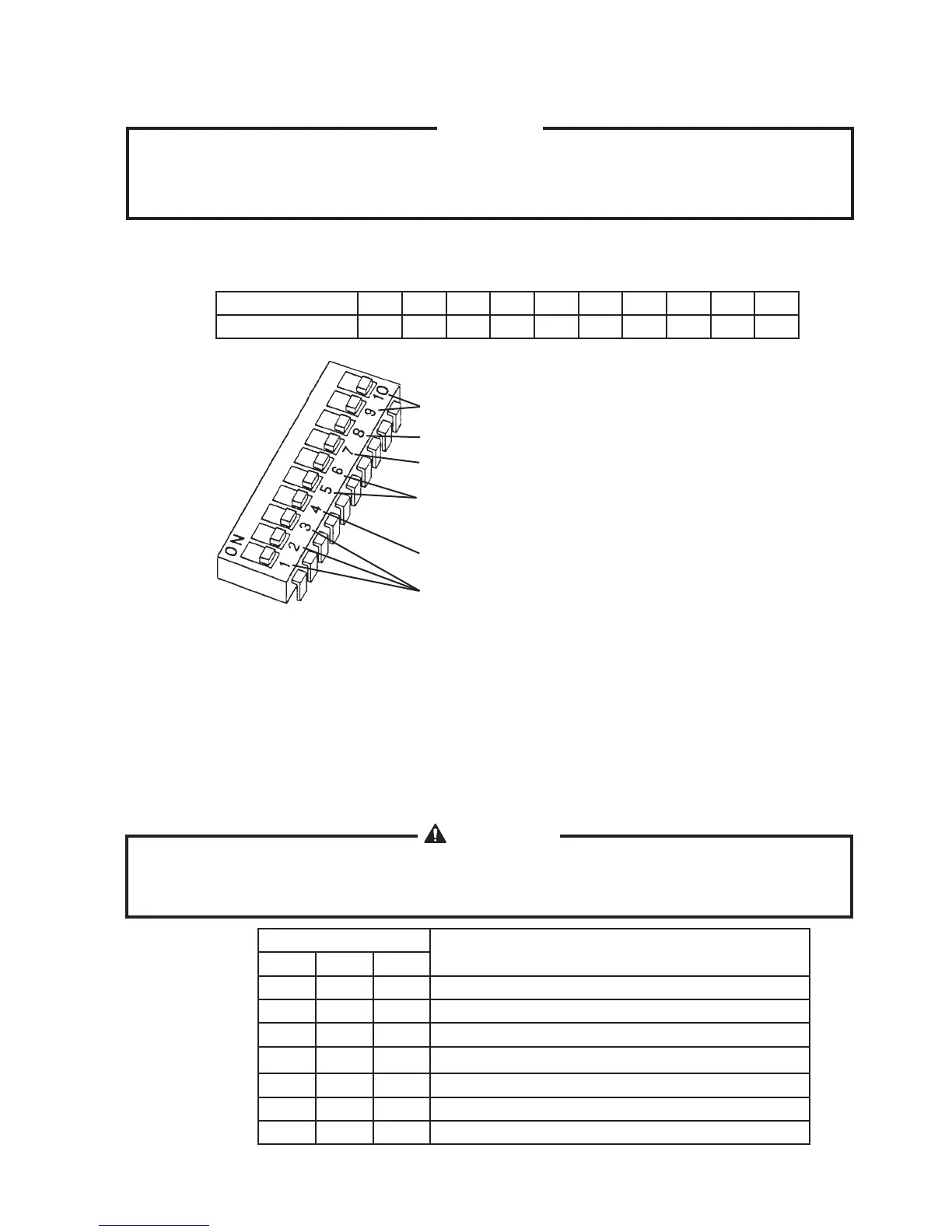

a) Default Dip Switch Settings
The S1 dip switch settings are factory-set to the following positions:
S1 Dip Switch No. 1 2 3 4 5 6 7 8 9 10
FS-1022MLH-C ON OFF OFF OFF OFF OFF ON ON OFF OFF
Infrared Sensor Shutdown Delay
Continuous Dispensing Timer
(DCM models only, do not adjust on modular icemakers)
Drain Frequency Control
Bin Control Selector
Mechanical Backup Bin Control Shutdown Delay
Normally off (factory use)
b) Infrared Sensor Shutdown Delay (S1 dip switch 1, 2, 3)
Infrared sensor shutdown delay is the delay between the infrared sensor detecting ice
(yellowLEDashingorsteady)andthestartoftheshutdownsequence.Fordispenser
unit applications, the ice level at shutoff may need to be adjusted depending on the
dispenser agitation or dispense method. Increasing the shutdown delay setting allows for
a higher level of ice in the bin before the icemaker shuts down. For a typical dispenser
unit application, a 100-second shutdown delay is recommended. When used with a
standard Hoshizaki storage bin, any shutdown delay setting is acceptable.
WARNING
Increasing the shutdown delay allows a higher level of ice in the dispensing
unit/storage bin before shutdown. This could lead to icemaker movement or ice
overow.
S1 Dip Switch Setting
Infrared Sensor Shutdown Delay
No. 1 No. 2 No. 3
OFF OFF OFF 0 Seconds
ON OFF OFF 100 Seconds (1.6 minutes) (Factory Default)
OFF ON OFF 1100 Seconds (18.3 minutes)
OFF OFF ON 1650 Seconds (27.5 minutes)
ON ON OFF 2200 Seconds (36.7 minutes)
OFF ON ON 0 Seconds
ON ON ON 0 Seconds
