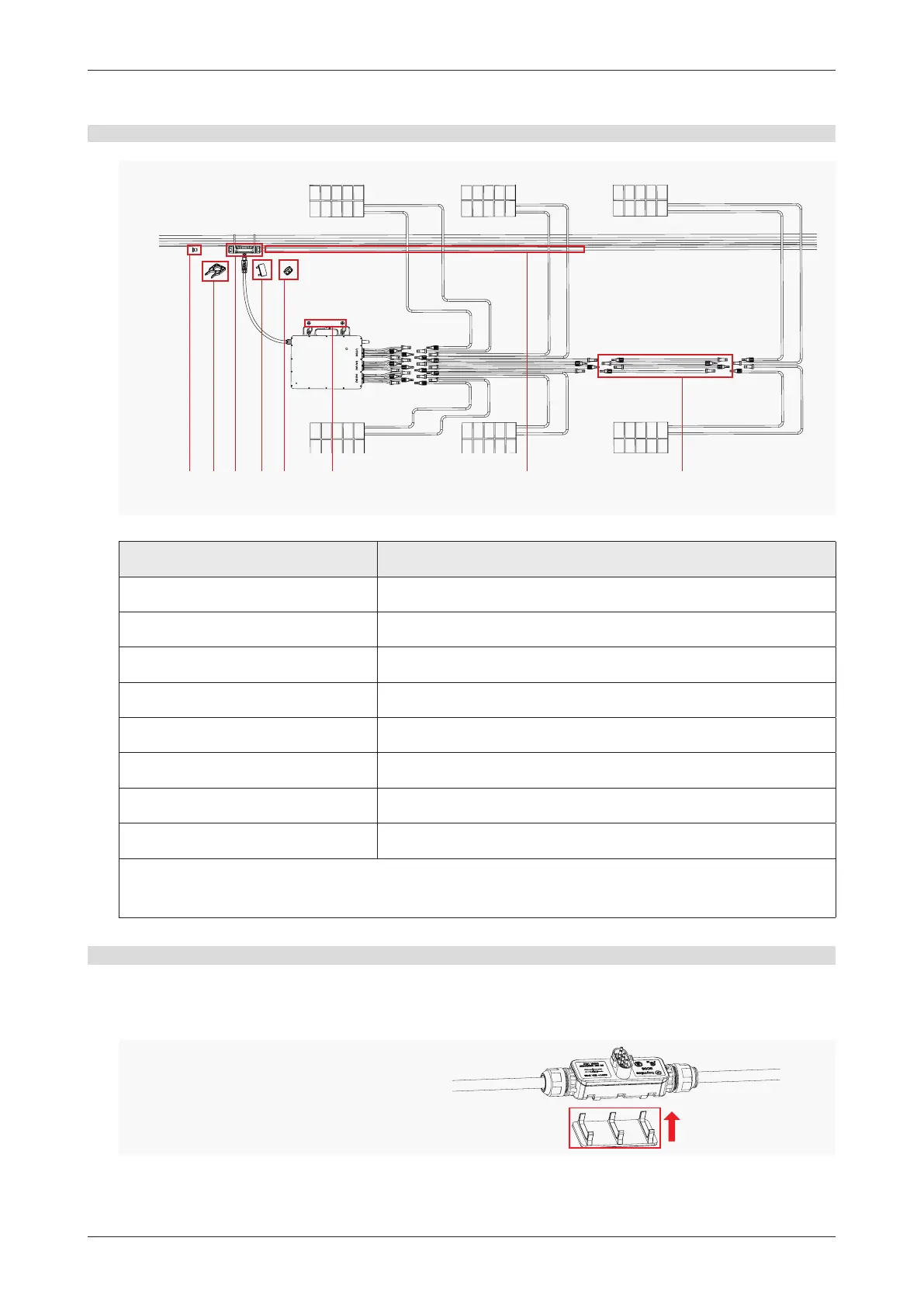

5. Microinverter Installation
5.1 Accessories
A B C D E F H G
Item Description
A 3P-AC Bus End Cap, IP67
B 3P-AC Connector Unlock Tool
C 3P-AC Bus Connector
D 3P-Bus Connector Unlock Tool
E 3P-AC Sub Cap
F M8*25 screws
G DC Extension Cable,1m
H 3P-AC Bus Cable, 12/10 AWG Optional
*Note: All accessories above are not included by the package, will need to be purchased separately. Please contact
our sales representative for the price (M8 screws will need to be prepared by installer-self).
• Use the 3P-Bus connector unlock tool to
unlock the connector upper cover;
5.2 Pre-installation
A ) Plan the cable length to allow the bus cable align with each PV module.
B ) Install the AC bus end cap:
© 2020 Hoymiles Power Electronics Inc. All rights reserved.
09
Three-phase Microinverter HMT-1800/2250 About Installation
