Hard drive
NOTE: The hard drive spare part kit does not include the hard drive bracket.
Table 5-4 Hard drive descriptions and part numbers
Description Spare part number
Hard drive, 1 TB, 5400 rpm, 7 mm 762990-005
Hard drive, 500 GB, 5400 rpm, 7 mm 778186-005
Hard drive cable L23187-001
Hard drive bracket L24490-001
Before removing the hard drive, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 31).
2. Remove the rubber feet (see Computer feet on page 31).
3. Remove the bottom cover (see Bottom cover on page 33).
4. Remove the battery (see Battery on page 35).
To remove the hard drive:

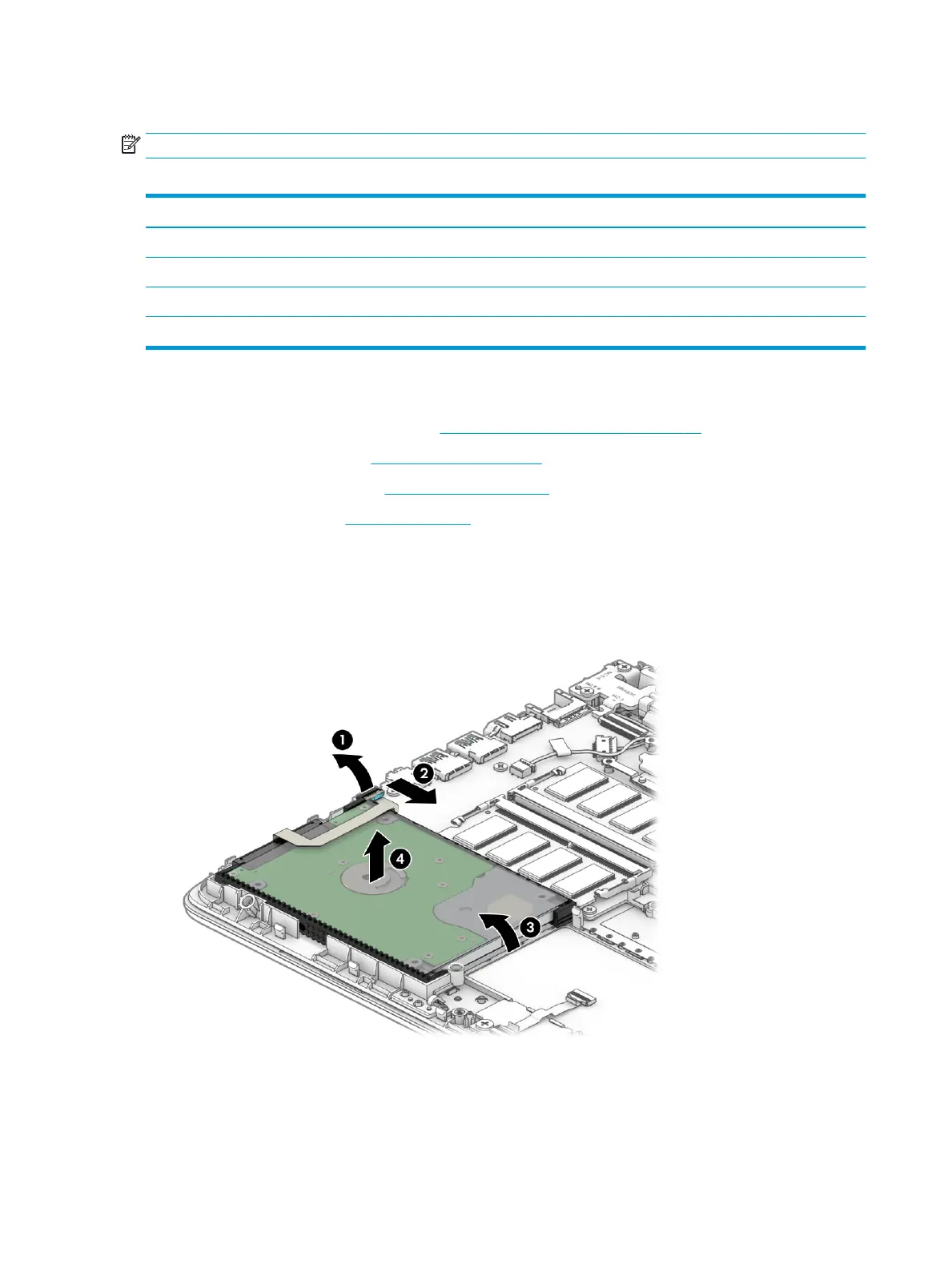

1. Disconnect the cable (1) from the system board and remove the cable (2).
2. Lift the hard drive (3), and then remove it (4) from the computer.
3. To remove the hard drive bracket, pull the holder sides (1) up and away from the hard drive, and then
remove the bracket cover (2) from the hard drive.
36 Chapter 5 Removal and replacement procedures for authorized service provider parts
