Solid-state drive
Table 5-8 Solid-state drive descriptions and part numbers
Description Spare part number
Solid-state drive, PCIe:
● 512 GB, value L53824-001
● 512 GB, TLC L56925-001
● 256 GB L53823-001
Solid-state drive, SATA-3, TLC:
● 256 GB L53822-001
● 128 GB L53821-001
Solid-state drive bracket L24488-001
Solid-state drive board L24487-001
Before removing the solid-state drive, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 31).
2. Remove the rubber feet (see Computer feet on page 31).
3. Remove the bottom cover (see Bottom cover on page 33).
4. Remove the battery (see Battery on page 35).
Remove the solid-state drive:

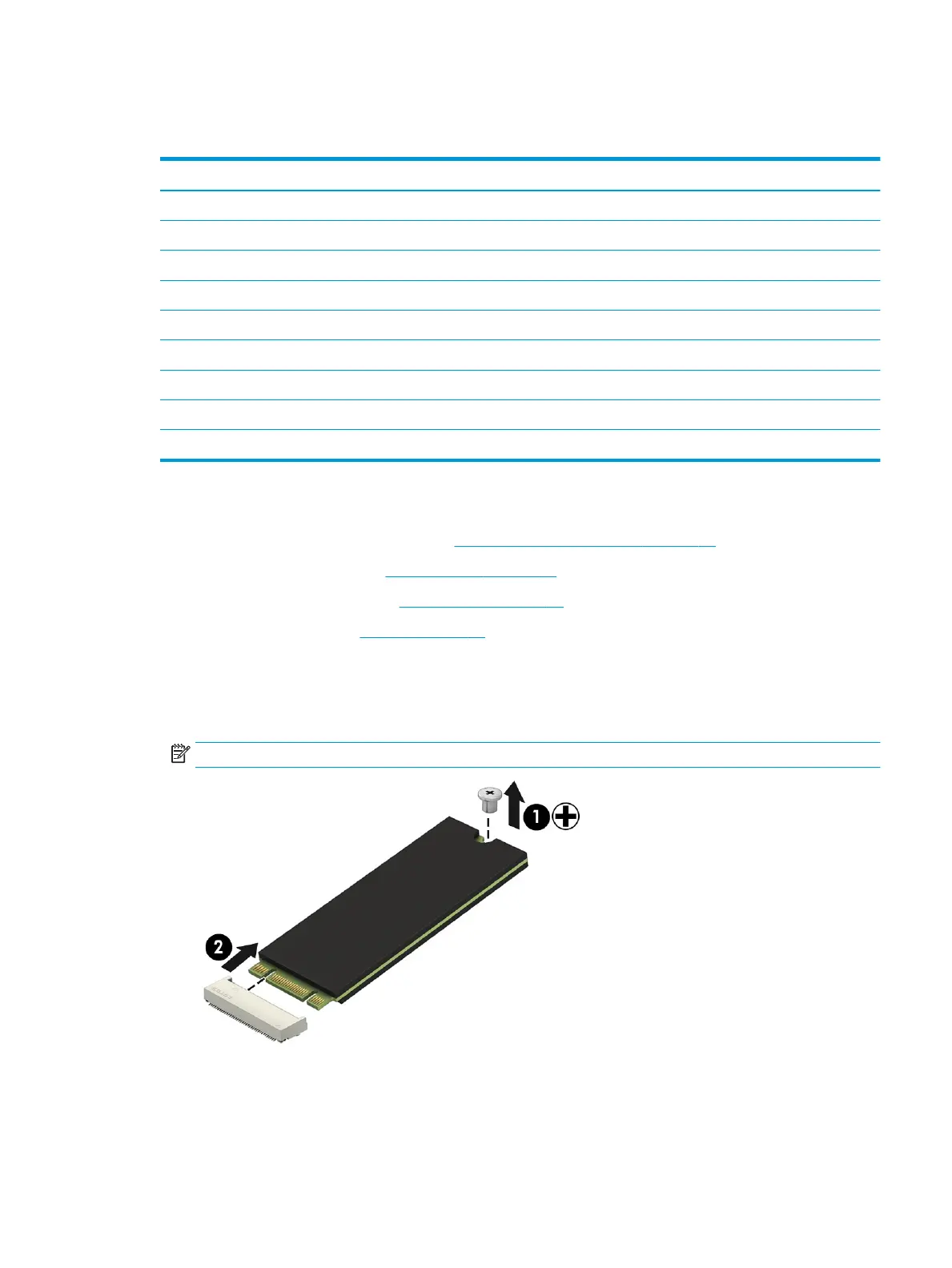

1. Remove the Phillips M2.0 × 2.0 screw (1) that secures the drive to the system board.
2. Remove the drive (2) by pulling it away from the connector.
NOTE: Solid-state drives are designed with notches to prevent incorrect insertion.
Reverse this procedure to install the solid-state drive.
Component replacement procedures 43
