eMMC board
Table 5-5 eMMC board descriptions and part numbers
Description Spare part number
eMMC board, 64 GB L23398-001
eMMC bracket L23387-001
eMMC cable L23397-001
Before removing the eMMC board, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 31).
2. Remove the rubber feet (see Computer feet on page 31).
3. Remove the bottom cover (see Bottom cover on page 33).
4. Remove the battery (see Battery on page 35).

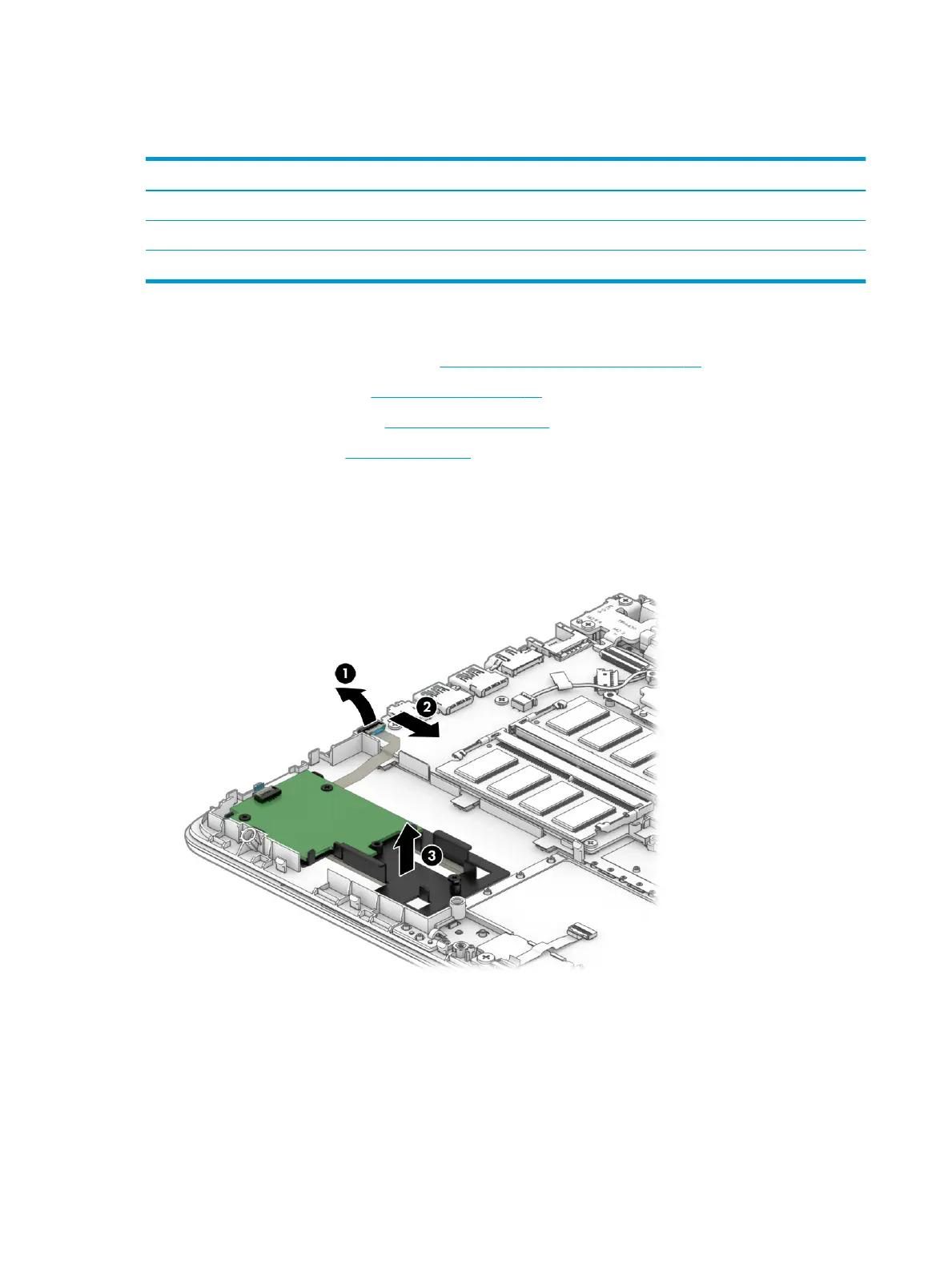

To remove the eMMC board:
1. Lift the ZIF connector (1), and then disconnect the cable (2) from the eMMC board.
2. Lift the assembly from the computer (3).
38 Chapter 5 Removal and replacement procedures for authorized service provider parts
