Power connector
Table 5-10 Power connector description and part number
Description Spare part number
Power connector L23188-001
Before removing the power connector cable, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 31).
2. Remove the rubber feet (see Computer feet on page 31).
3. Remove the bottom cover (see Bottom cover on page 33).
4. Remove the battery (see Battery on page 35).
5. Remove the right hinge screw and lift the right hinge (see Display assembly on page 56).

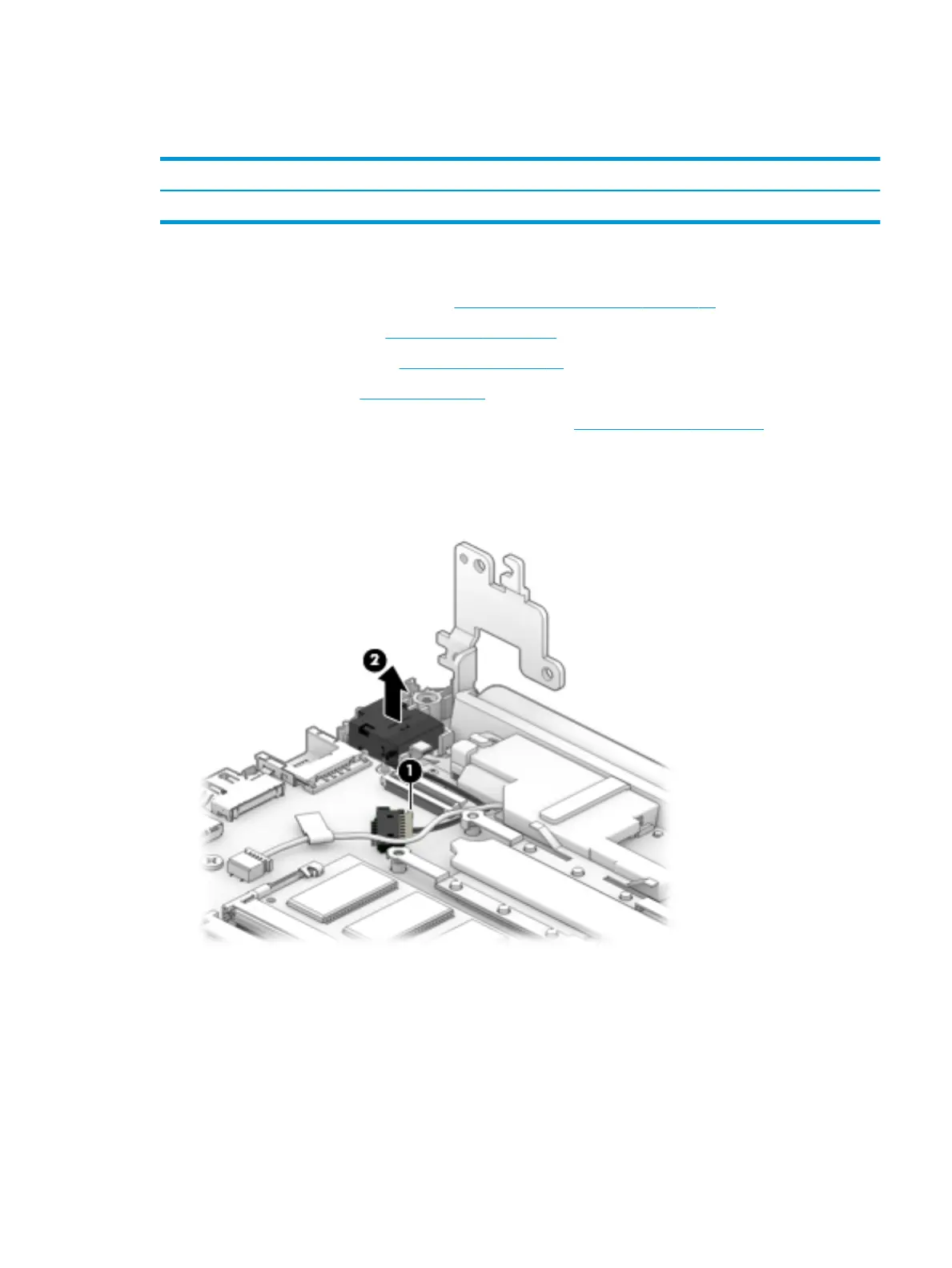

To remove the power connector:
1. Disconnect the power connector cable (1) from the system board.
2. Lift the power connector (2) to remove it.
Reverse this procedure to install the power connector.
Component replacement procedures 45
