Speakers
Table 5-9 Speaker description and part number
Description Spare part number
Speakers (includes left and right speakers and cable) 926558-001
Before removing the speakers, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 31).
2. Remove the rubber feet (see Computer feet on page 31).
3. Remove the bottom cover (see Bottom cover on page 33).
4. Remove the battery (see Battery on page 35).

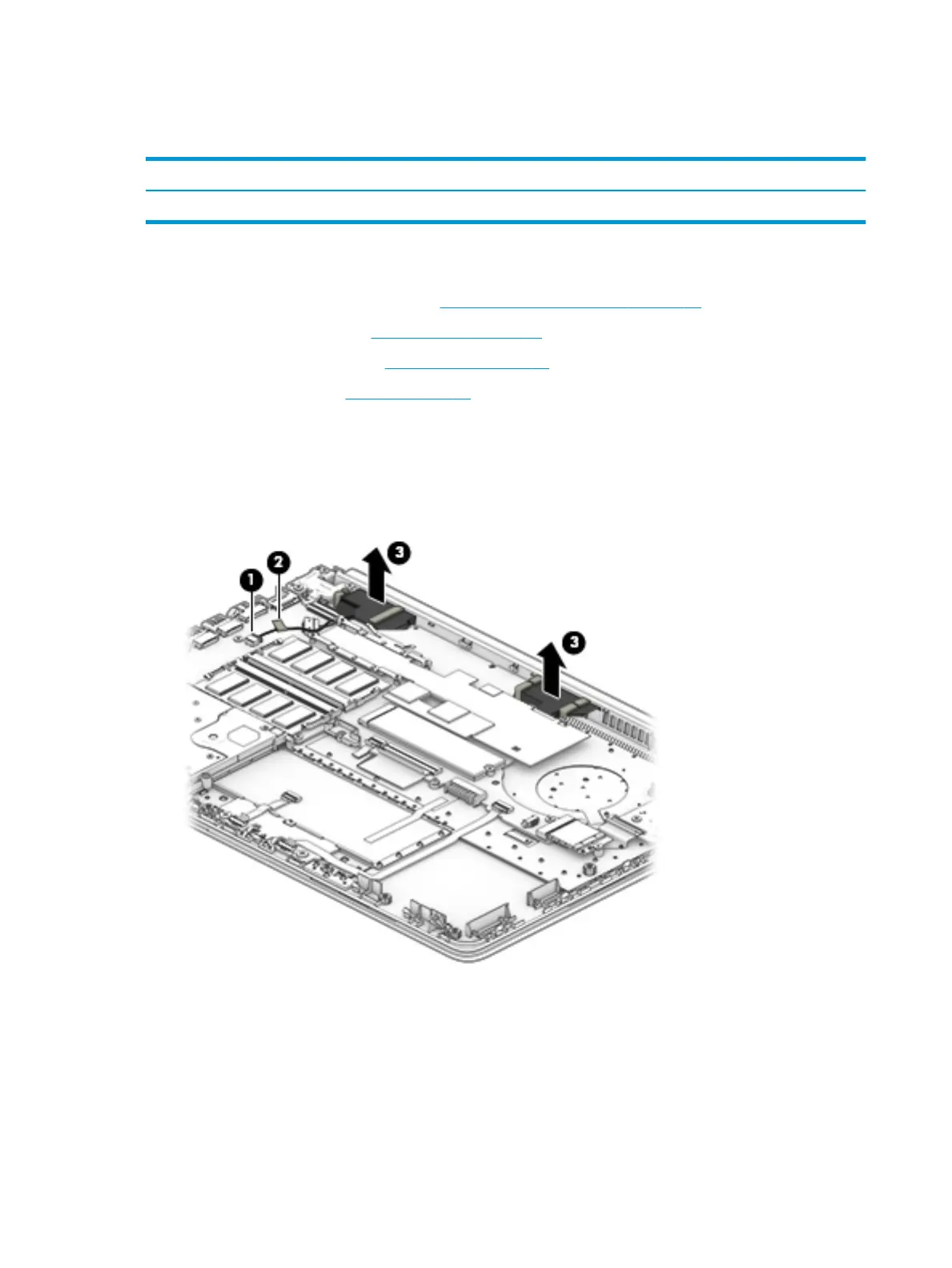

To remove the speakers:
1. Disconnect the speaker cable from the system board (1).
2. Remove the tape (2) securing the cable.
3. Lift the speakers out of the computer (3).
Reverse this procedure to install the speakers.
44 Chapter 5 Removal and replacement procedures for authorized service provider parts
