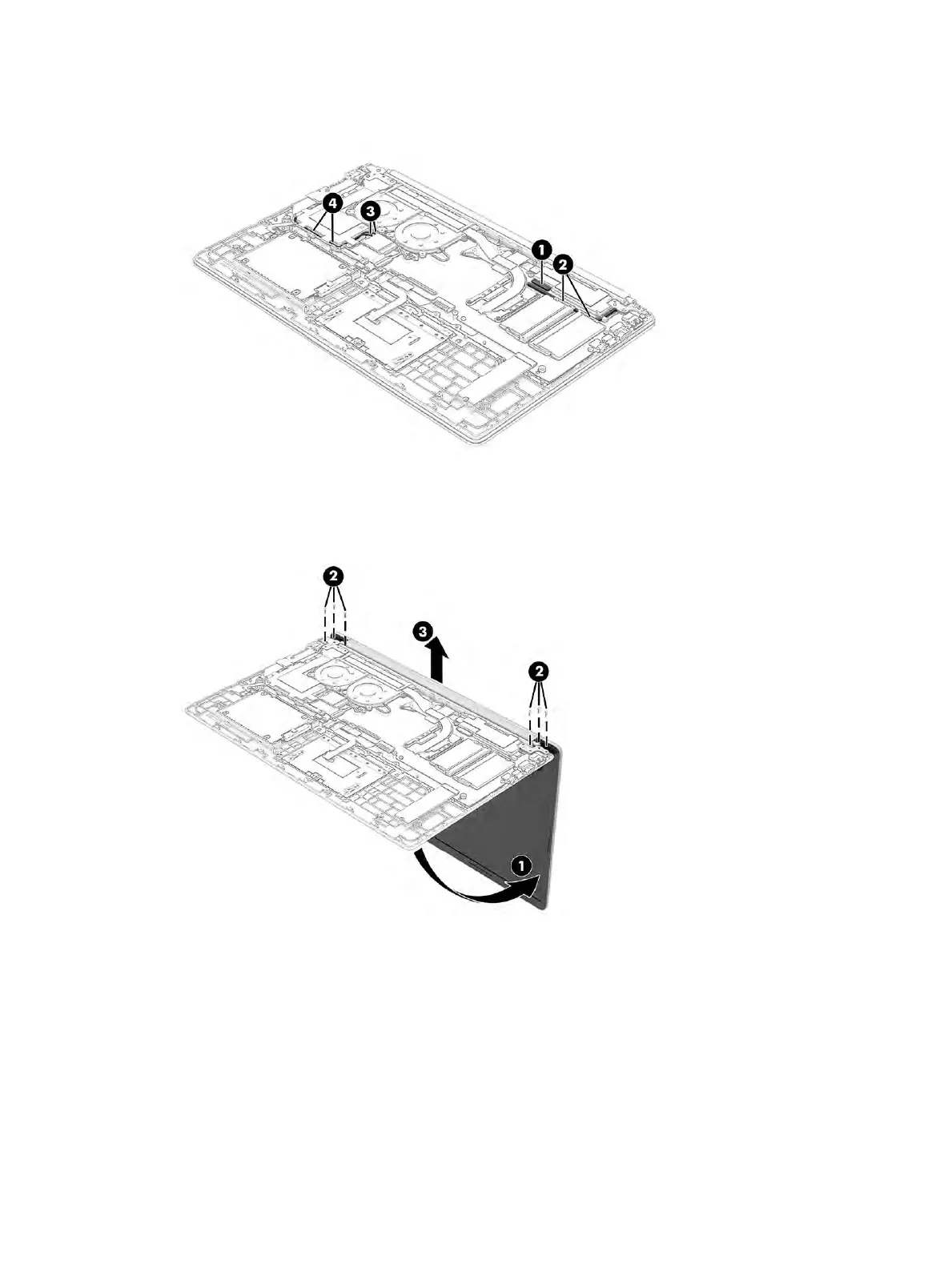

2. Disconnect the antenna cables from the WLAN module (3), and then remove the cables from the clips on
the bottom and left sides of the speaker (4).
3. Rotate the display to open the hinges (1).
4. Remove the six Phillips M2.5 × 6.0 screws (2) that secure the display assembly to the computer.
5. Separate the display assembly from the computer (3).
6. If you need to remove the hinge cover:
▲ Squeeze the hinge cover (1), and then remove the hinge cover from the display (2).
The hinge covers are available as the following spare part numbers:
M50403-001: Jet black
M50404-001: Evening blue
M50405-001: Natural silver
M50406-001:
Snowake white
52 Chapter 5 Removal and replacement procedures for authorized service provider parts
