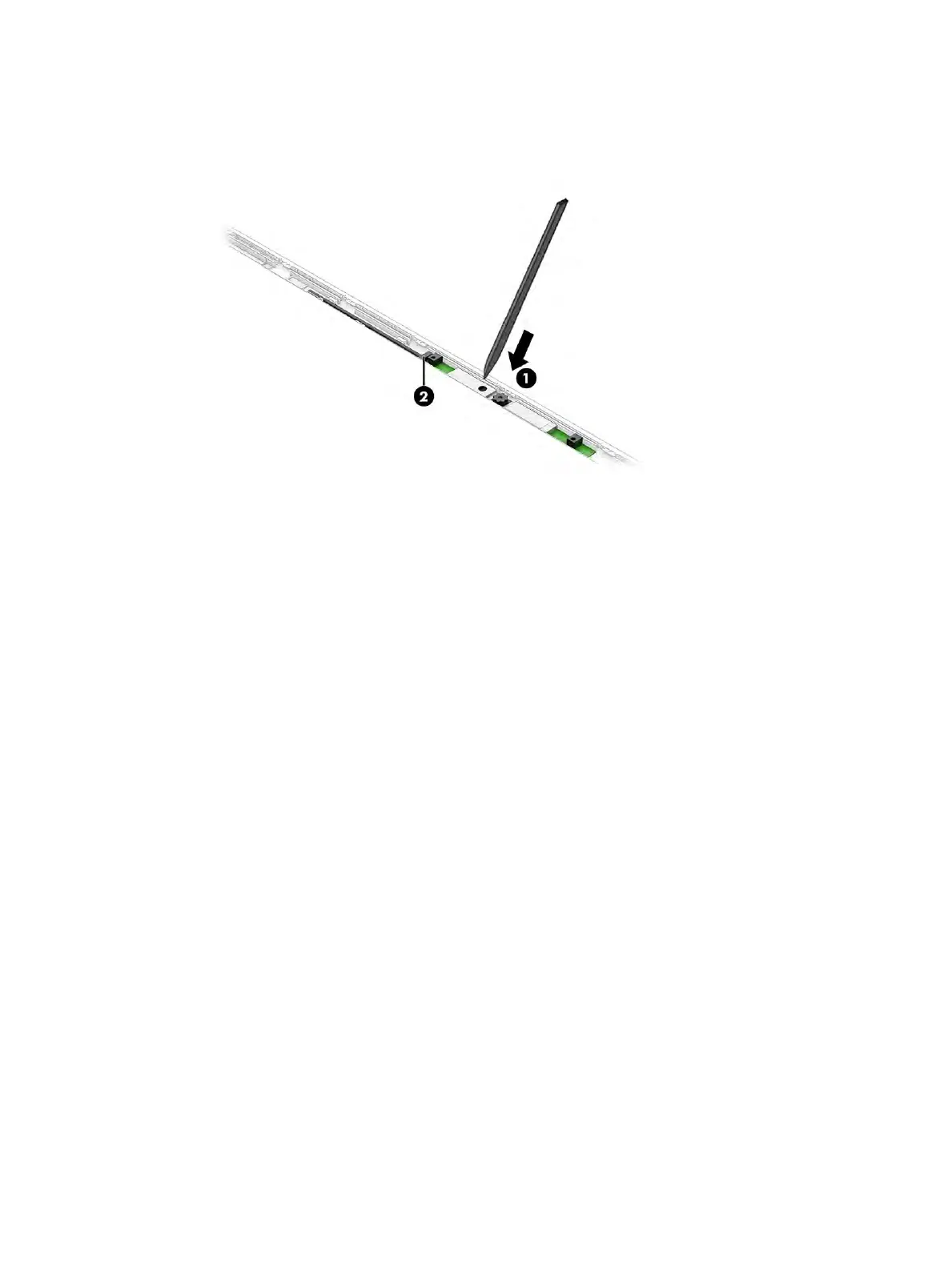

▲ Use a tool to lift up evenly across the module and peel the module up from the display back cover
(1), and then disconnect the cable from the module (2).
The camera module is available as spare part number M50436-001.
9. If you need to remove the display panel:
a. The display panel is secured to the display enclosure with tape that is installed under the left and
right sides of the panel. To remove the panel, use tweezers to grasp the end of the tape (1). While
turning the tweezers, wrap the tape around the tweezers (2) as you continue to pull the tape out
from behind the display panel (3). You must pull the tape multiple times before it is completely
removed.
54 Chapter 5 Removal and replacement procedures for authorized service provider parts
