11. If you need to remove the touch control board from the display:

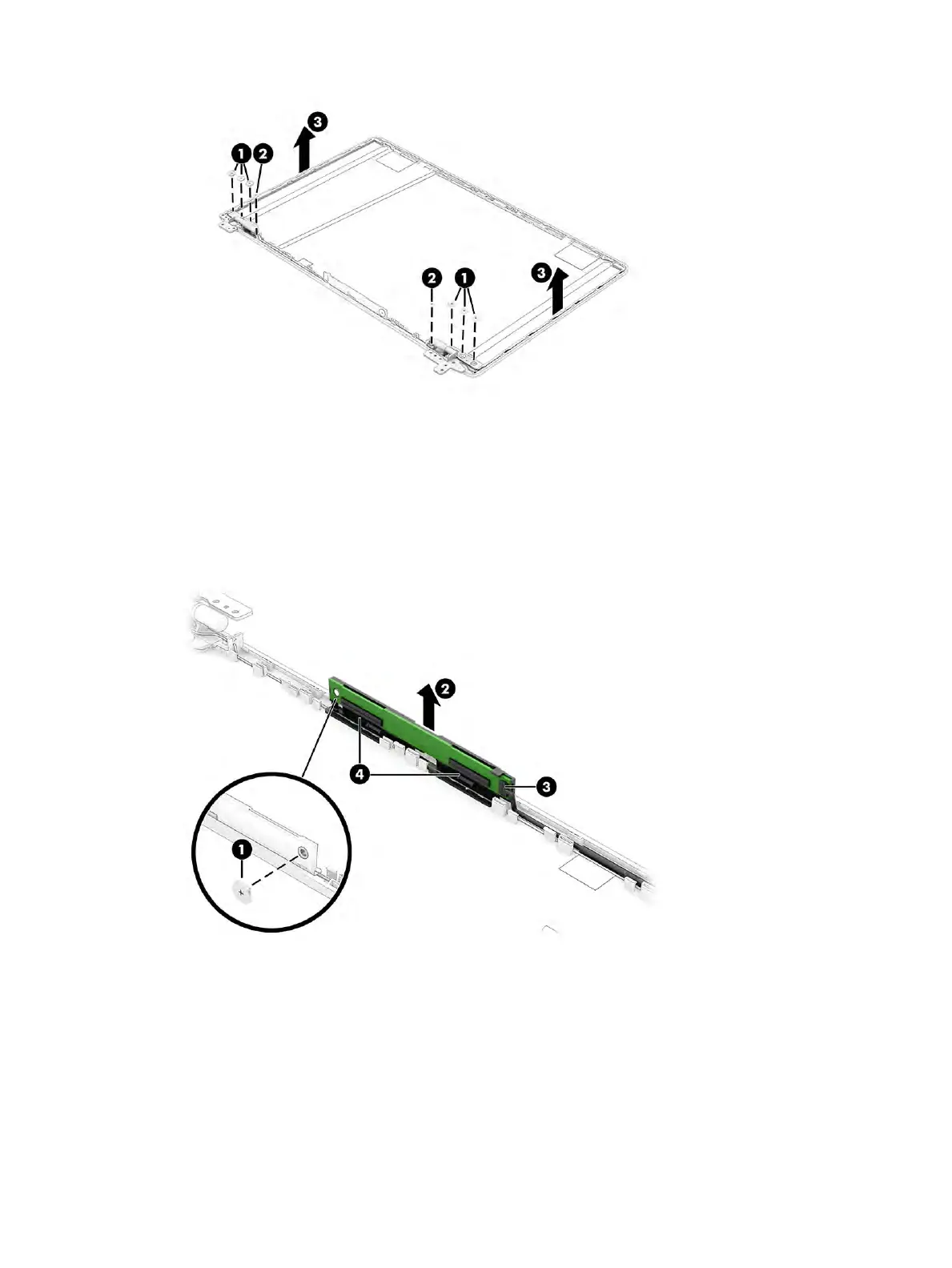

a. Remove the Phillips M2.0 × 3.0 screw (1) that secures the board to the display.
b. Lift the board up enough to disconnect the cables.
c. Disconnect the cable from the end of the board (3) and the two larger ZIF cables (4) from the
board.
The touch control board is available as spare part number M50421-001.
