HP 1810-24G Installation And Getting Started Guide

A-11
Specifications
Twisted-Pair Cable/Connector Pin-Outs
Crossover Twisted-Pair Cable for
10 Mbps or 100 Mbps Network Connection
The Auto-MDIX operation of the 10/100 ports on the switch also allows you to
use crossover cables for all network connections, to PCs, servers or other end
nodes, or to hubs or other switches.
If any of these ports are given a fixed configuration, for example 100 Mbps/
Full Duplex, the ports operate as MDI-X ports, and crossover cables must be
then used for connections to hubs or switches or other MDI-X network
devices.

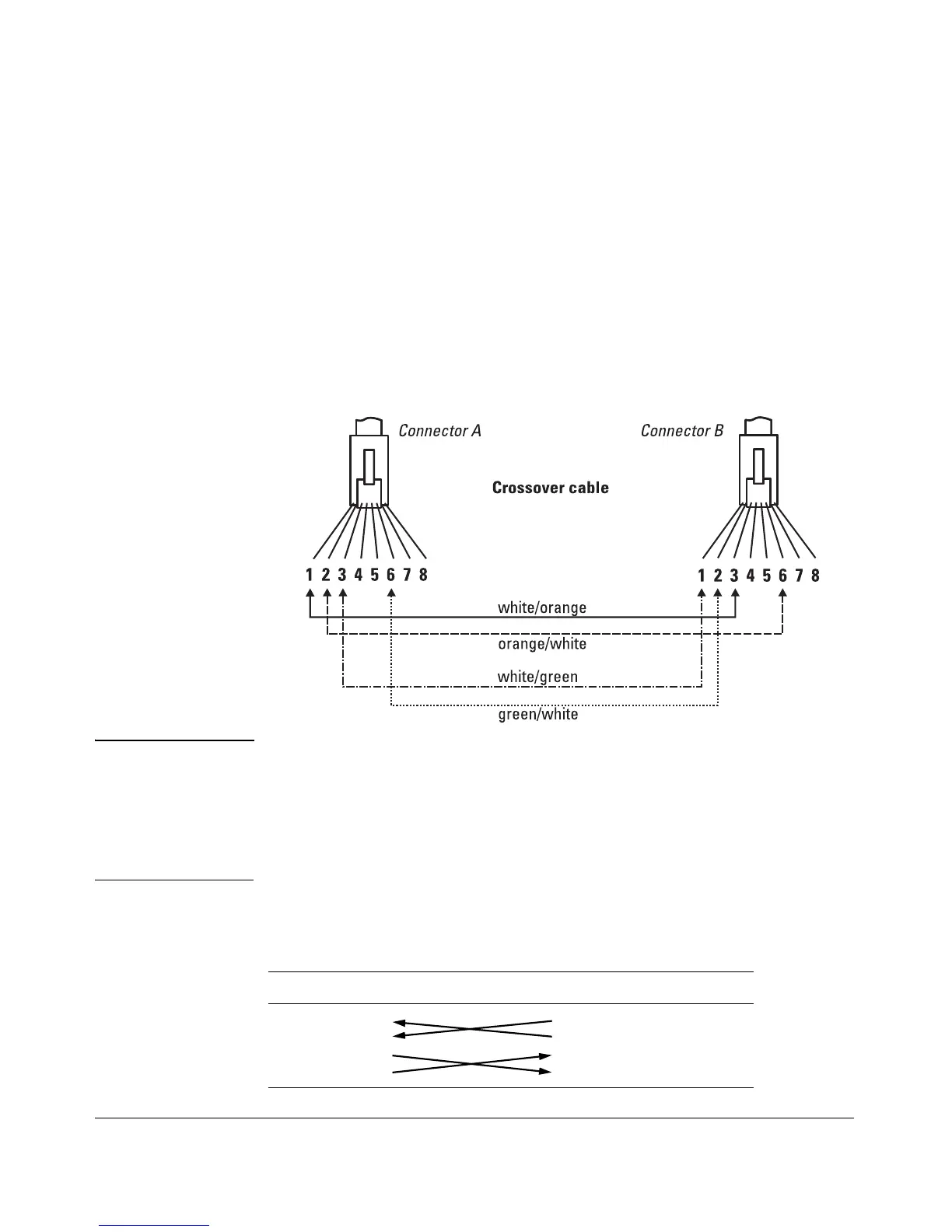

Cable Diagram
Note Pins 1 and 2 on connector “A” must be wired as a twisted pair to pins 3 and 6
on connector “B”.
Pins 3 and 6 on connector “A” must be wired as a twisted pair to pins 1 and 2
on connector “B”.
Pins 4, 5, 7, and 8 are not used in this application, although they may be wired
in the cable.
Pin Assignments
Switch End (MDI-X) Hub or Switch Port, or Other
MDI-X Port End
Signal Pins Pins Signal
receive +
receive -
transmit +
transmit -
1
2
3
6
6
3
2
1
transmit -
transmit +
receive -
receive +

HP 1810-24G Specifications

General

Switching Capacity	52 Gbps
Throughput	38.7 Mpps
Form Factor	Rack-mountable
Management	Web-based GUI
Power Supply	Internal
Layer	Layer 2
Operating Temperature	0°C to 40°C (32°F to 104°F)
Ports	24 RJ-45 10/100/1000 ports
Weight	2.27 kg (5.0 lb)
Operating Humidity	10% to 90% non-condensing
