Table 3 PCM LED Descriptions (continued)
IndicatesAppearanceLEDIcon
Present and chargedOn
GreenBattery Good
Charging or disarmedFlashing
Drive PCM LEDs

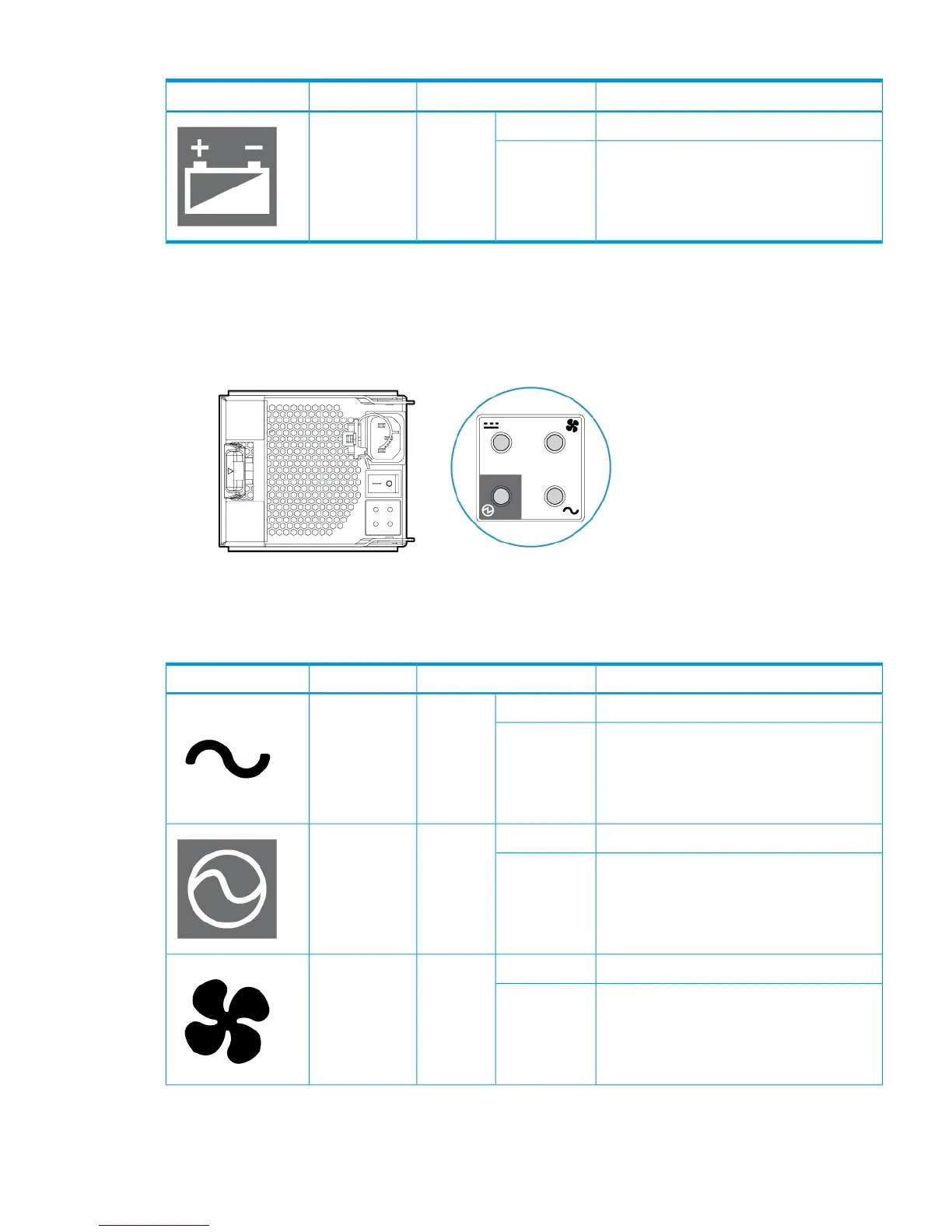

The following figure shows the drive enclosure PCM LEDs.
Figure 27 Drive PCM LEDs
The next table describes the drive PCM LED states.
Table 4 Drive PCM LED Descriptions
IndicatesAppearanceLEDIcon
No AC power or PCM faultOn
AmberAC input fail
FiPartner PCM Faulty/Off or Firmware
Download
Flashing
AC Present and PCM On / OKOn
GreenPCM OK
Standby modeFlashing
PCM fail or PCM faultOn
AmberFan Fail
Firmware downloadFlashing
Storage System Component LEDs 29
