HP 3PAR StoreServ 7400 2-node Service Guide

Table 22 Internal Node Components
CSR TypeQty.DescriptionPart NumberCallout
1Node drive locationN/A1
Not1SPS-Cable Node Drive SATA683807-0012
SPS-Cable Boot Drive (Node
drive cable)
683250-001
Not1SPS-PCIe Riser Assy683247-0013
N/AN/AN/AN/A4
N/AN/AN/AN/A5
Not1SPS-Battery Coin (TOD battery)683249-0016
Not1SPS-Memory DIMM 8GB DDR3
Control Cache 7200, 7400
683806-0017
Not2 (7200)SPS-Memory DIMM 2GB DDR2
7200
683803-0018, 9
Not2 (7400)SPS-Memory DIMM 4GB DDR2
7400
683804-0018, 9
Service Processor

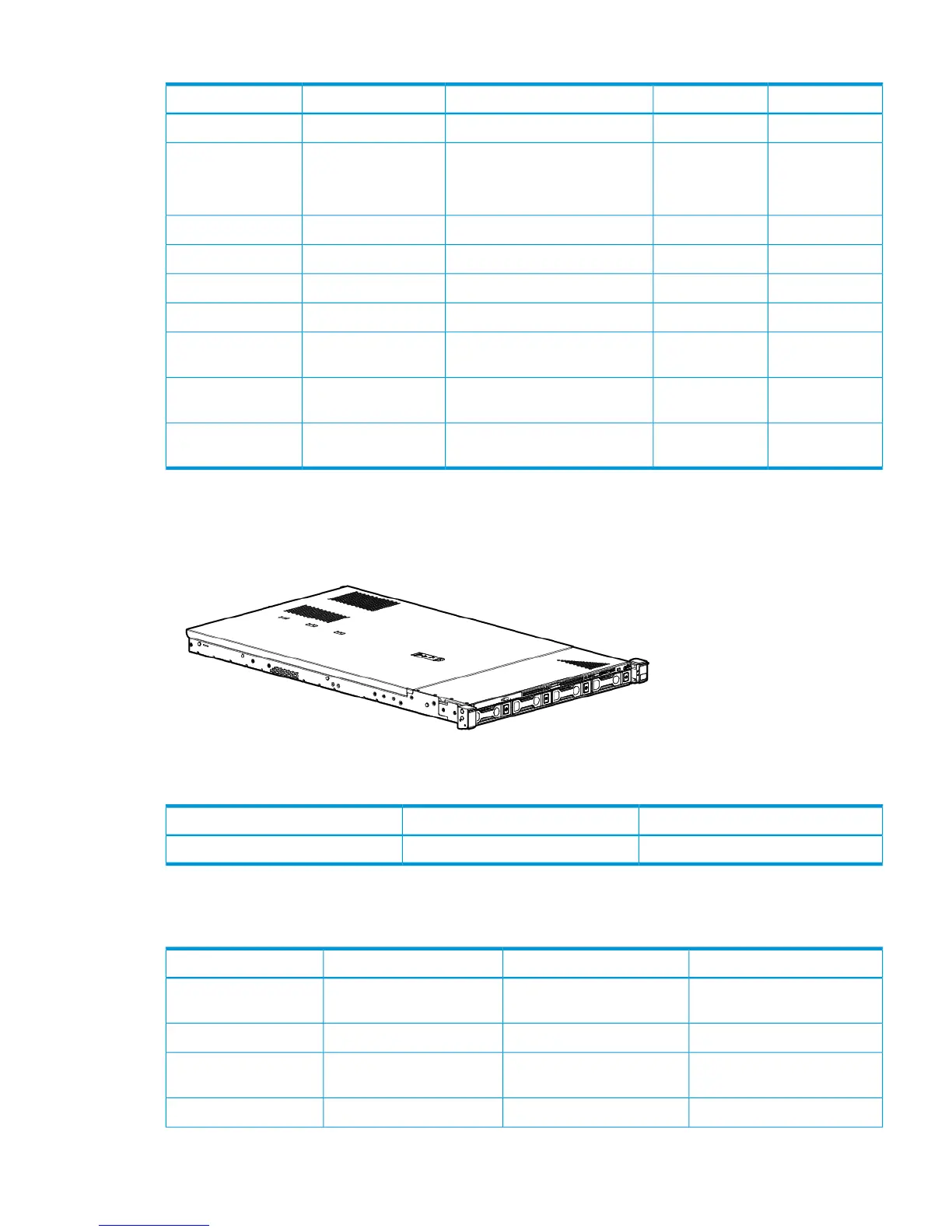

Figure 61 Service Processor DL320e
Table 23 Service Processor
QtyDescriptionPart Number
1HP 3PAR Service Processor DL320e725287-001
Miscellaneous Cables and Parts
Table 24 Storage System Cables
CSR TypeQty.DescriptionPart Number
NotSPS-Cable Node Link PCIe
7400
683808-001
SPS-Cable Console Node683809-001
SPS-Cable Console Drive
Chassis
683810-001
SPS-Power Cord PCM683252-001
Service Processor 63
