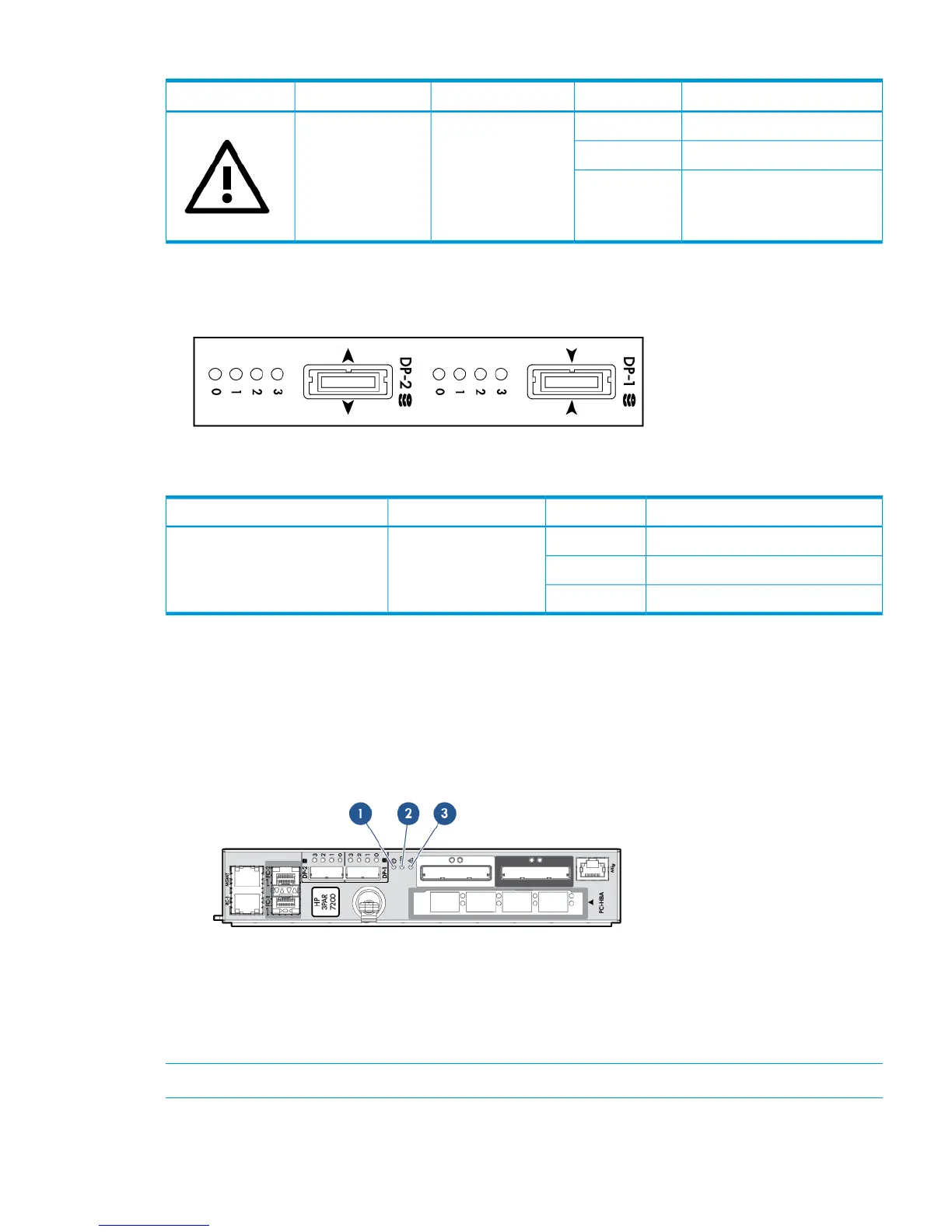

Table 5 I/O module LEDs (continued)
MeaningStateAppearanceFunctionIcon
FaultOnAmberFault
Normal operationOff
Locate command issuedFlashing
Figure 30 External Port Activity LEDs
MeaningStateAppearanceFunction
Ready, no activityOnGreenExternal Port Activity; 4 LEDs for
Data Ports 0 through 3
Not ready or no powerOff
ActivityFlashing
Controller Node and Internal Component LEDs
Controller node LEDs are shown in the following table.
Figure 31 Controller Node LEDs
NOTE: Issue the locatenode command to flash the hotplug LED blue.
Controller Node and Internal Component LEDs 31
