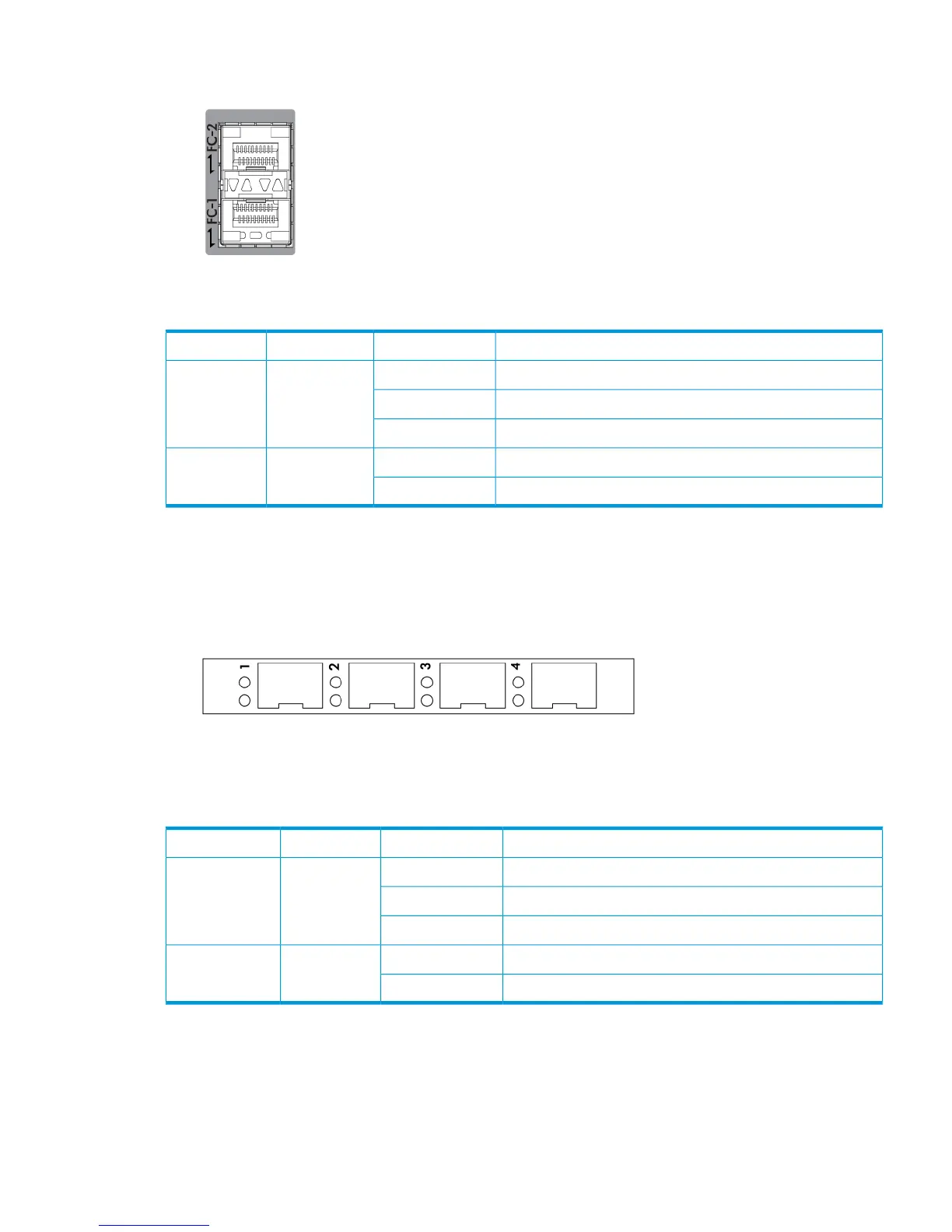

Figure 33 FC Port LEDs
Table 8 FC Port LEDs
Wake up failure (dead device) or power is not appliedOffNo lightAll ports
Not connectedOffAmberFC-1
Connected at 4GB/s3 fast blinks
Connected at 8GB/s4 fast blinks
Normal/Connected – link upOnGreenFC-2
Link down or nor connectedFlashing
Fibre Channel (FC) Adapter LEDs
Figure 34 FC Adapter LEDs
Table 9 FC Adapter LEDs
Wake up failure (dead device) or power is not appliedOffNo lightAll ports
Not connectedOff
AmberPort speed Connected at 4GB/s3 fast blinks
Connected at 4GB/s4 fast blinks
Normal/Connected – link upOn
GreenLink status
Link down or not connectedFlashing
Controller Node and Internal Component LEDs 33
