HP
4155A/4156A
Print/Plot
Guide
PCL
Mode
and
Examples

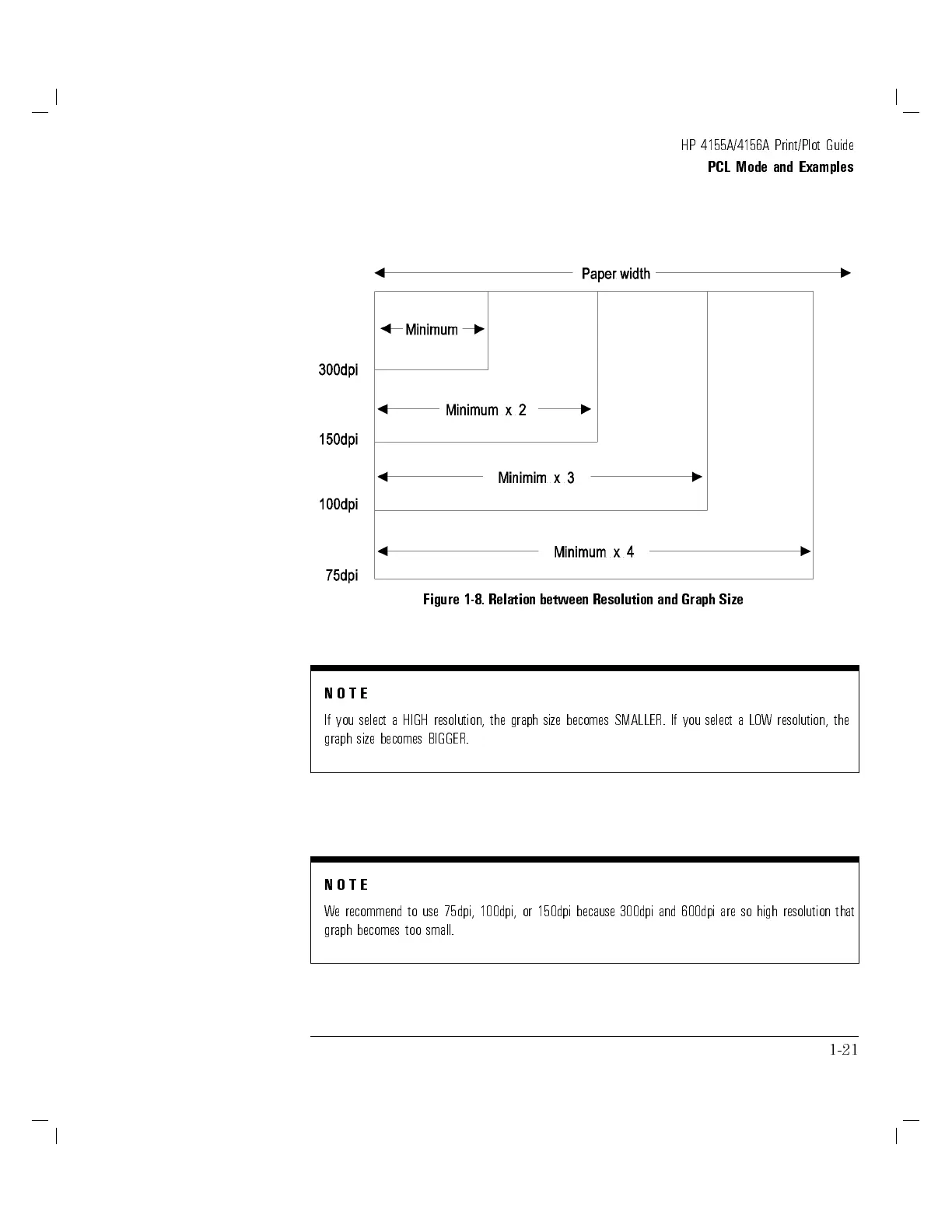

Figure
1-8.
Relation
between
Resolution
and
Graph
Size
NO
T
E
If
you
select
a
HIGH
resolution,
the
graph
size
becomes
SMALLER.
If
you
select
a
L
OW
resolution,
the
graph
size
becomes
BIGGER.
NO
T
E
W
e
recommend
to
use
75dpi,
100dpi,
or
150dpi
because
300dpi
and
600dpi
are
so
high
resolution
that
graph
becomes
too
small.
1-21
23
25
