PCL Examples

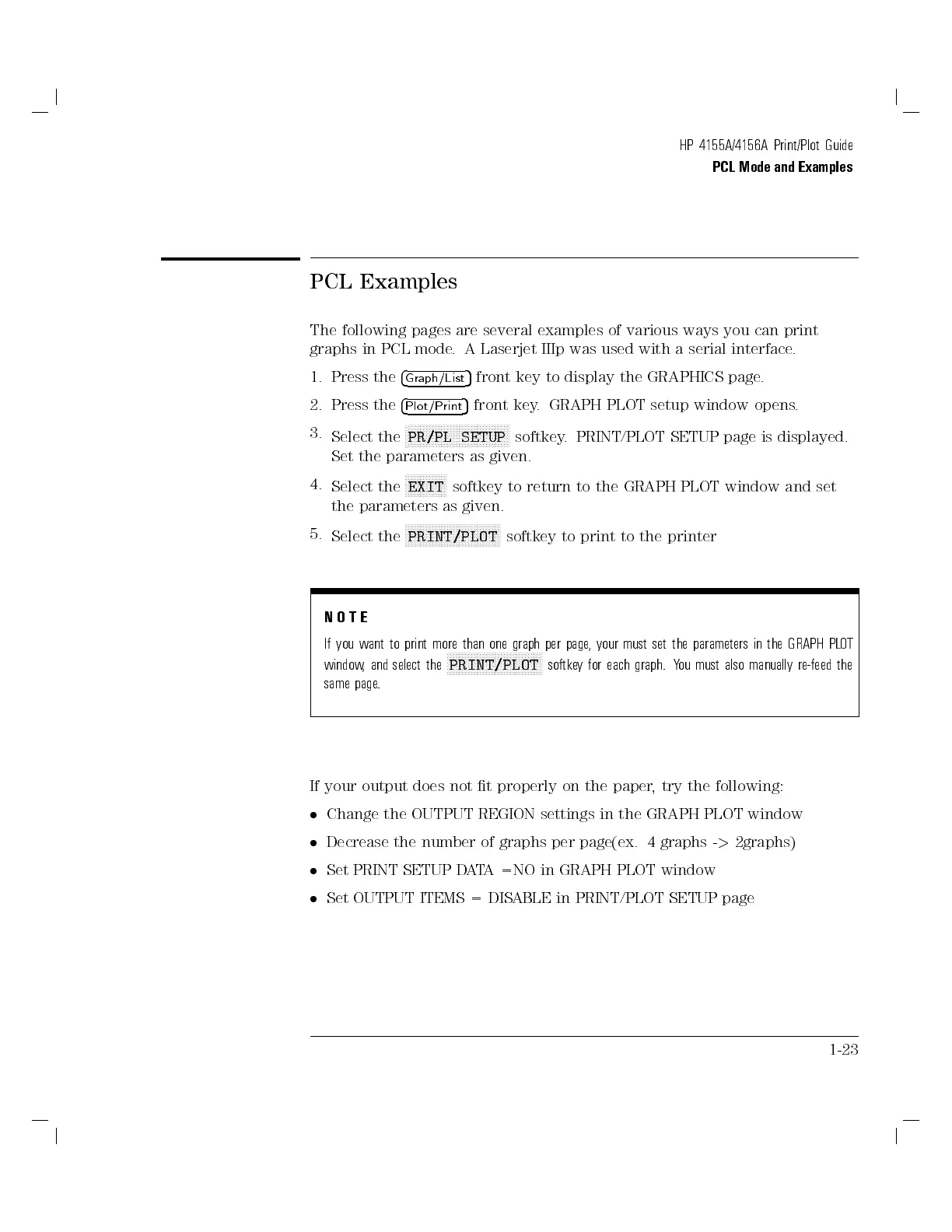

The following pages are several examples of various ways you can print
graphs in PCL mode. A Laserjet IIIp was used with a serial interface.
1. Press the
4
Graph/List
5
front key to display the GRAPHICS page.
2. Press the
4
Plot/Print
5
front key. GRAPH PLOT setup window opens.
3.
Select the
N
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
PR/PL SETUP
softkey. PRINT/PLOT SETUP page is displayed.
Set the parameters as given.
4.
Select the
NNNNNNNNNNNNNN
EXIT
softkey to return to the GRAPH PLOT window and set
the parameters as given.
5.
Select the
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
PRINT/PLOT
softkey to print to the printer
NOTE
If you want to print more than one graph per page
, your must set the parameters in the GRAPH PL
OT
window, and select the
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
PRINT/PLOT
softkey for each graph. You must also manually re-feed the
same page.
If your output does not t properly on the paper, try the following:
Change the OUTPUT REGION settings in the GRAPH PLOT window
Decrease the number of graphs per page(ex. 4 graphs -
>
2graphs)
Set PRINT SETUP DATA =NO in GRAPH PLOT window
Set OUTPUT ITEMS = DISABLE in PRINT/PLOT SETUP page
