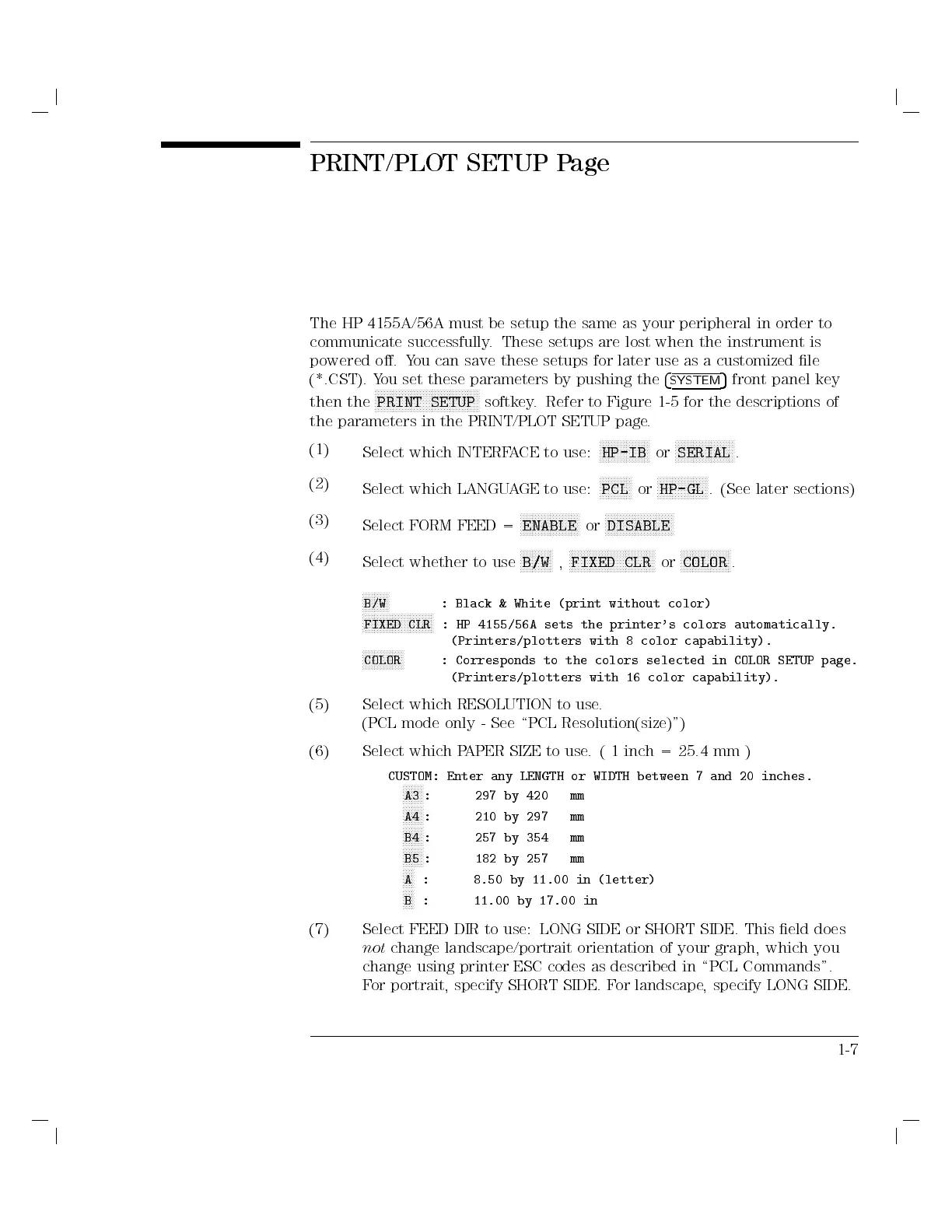

HP 4155A Print/Plot Guide

PRINT/PLOT SETUP Page
The HP 4155A/56A must be setup the same as your peripheral in order to
communicate successfully. These setups are lost when the instrument is
powered o. You can save these setups for later use as a customized le
(*.CST). You set these parameters by pushing the 4
SYSTEM
5 front panel key
then the
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
PRINT SETUP softkey. Refer to Figure 1-5 for the descriptions of
the parameters in the PRINT/PLOT SETUP page.
(1)
Select which INTERFACE to use:
NNNNNNNNNNNNNNNNN
HP-IB or
NNNNNNNNNNNNNNNNNNNN
SERIAL .
(2)
Select which LANGUAGE to use:
NNNNNNNNNNN
PCL or
NNNNNNNNNNNNNNNNN
HP-GL . (See later sections)
(3)
Select FORM FEED =
NNNNNNNNNNNNNNNNNNNN
ENABLE or
NNNNNNNNNNNNNNNNNNNNNNN
DISABLE
(4)
Select whether to use
NNNNNNNNNNN
B/W ,
NNNNNNNNNNNNNNNNNNNNNNNNNNNNN
FIXED CLR or
NNNNNNNNNNNNNNNNN
COLOR .
FFFFFFFFF
B/W : Black & White (print without color)
F
FFFFFFFFFFFFFFFFFFFFFFF
FIXED CLR : HP 4155/56A sets the printer's colors automatically.
(Printers/plotters with 8 color capability).
FFFFFFFFFFFFFF
COLOR : Corresponds to the colors selected in COLOR SETUP page.
(Printers/plotters with 16 color capability).
(5) Select which RESOLUTION to use.
(PCL mode only - See \PCL Resolution(size)")
(6) Select which PAPER SIZE to use. ( 1 inch = 25.4 mm )
CUSTOM: Enter any LENGTH or WIDTH between 7 and 20 inches.
FFFFFFF
A3 : 297 by 420 mm
FFFFFFF
A4 : 210 by 297 mm
FFFFFFF
B4 : 257 by 354 mm
FFFFFFF
B5 : 182 by 257 mm
FFFF
A: 8.50 by 11.00 in (letter)
FFFF
B: 11.00 by 17.00 in
(7) Select FEED DIR to use: LONG SIDE or SHORT SIDE. This eld does
not change landscape/portrait orientation of your graph, which you
change using printer ESC codes as described in \PCL Commands".
For portrait, specify SHORT SIDE. For landscape, specify LONG SIDE.
1-7
