4
Installing the AP

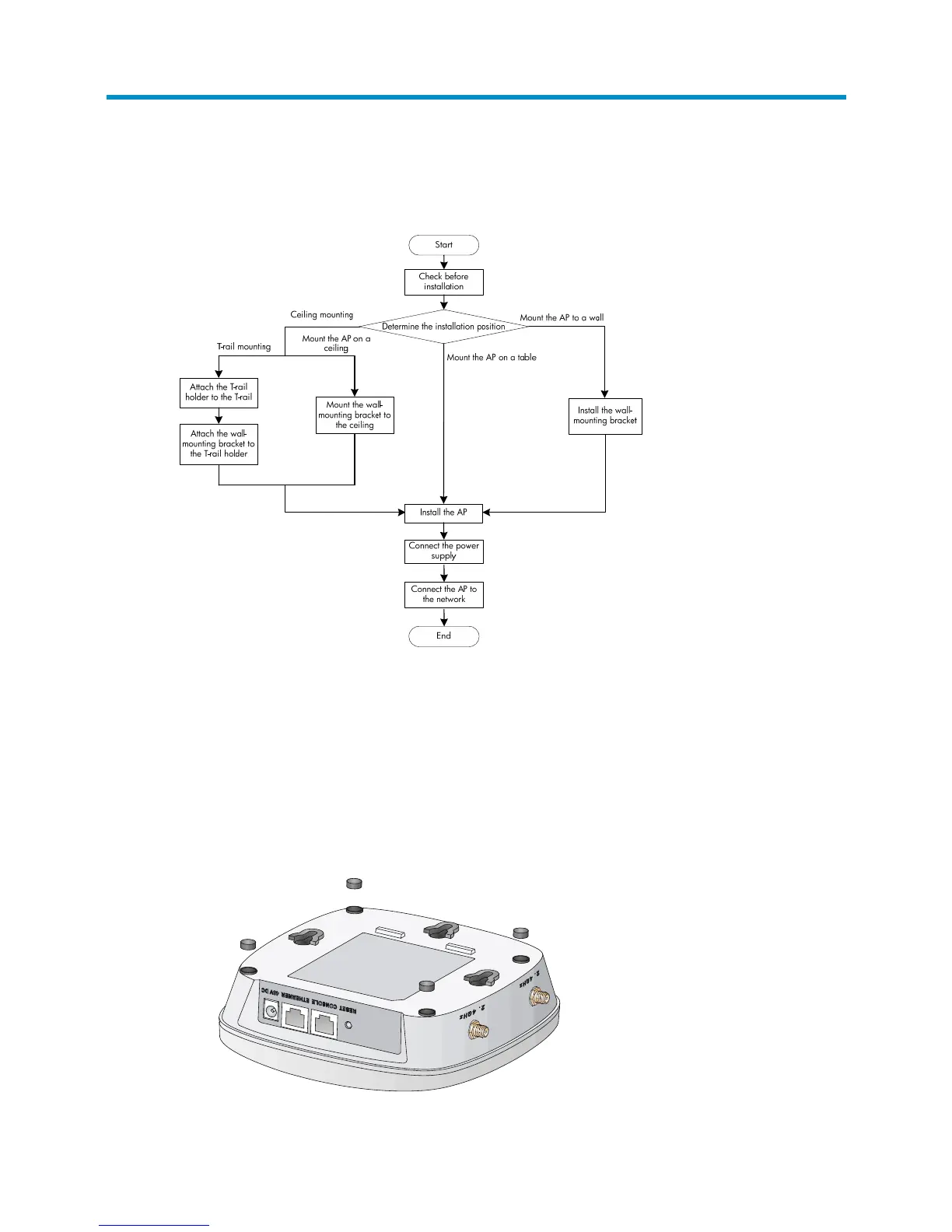

Figure 1 Installation flowchart
The device can only be used indoors and has built-in antennas. When you install the AP, determine
whether external antennas are needed. External antennas are not included with the AP and this
document does not include external antenna installation procedures.
Mounting the AP on a table
1. Attach the rubber feet supplied with the AP to the rear of the AP as shown in Figure 2.
Figure 2 Attaching the rubber feet
