HP 425 - Mounting the AP to a T-rail

8

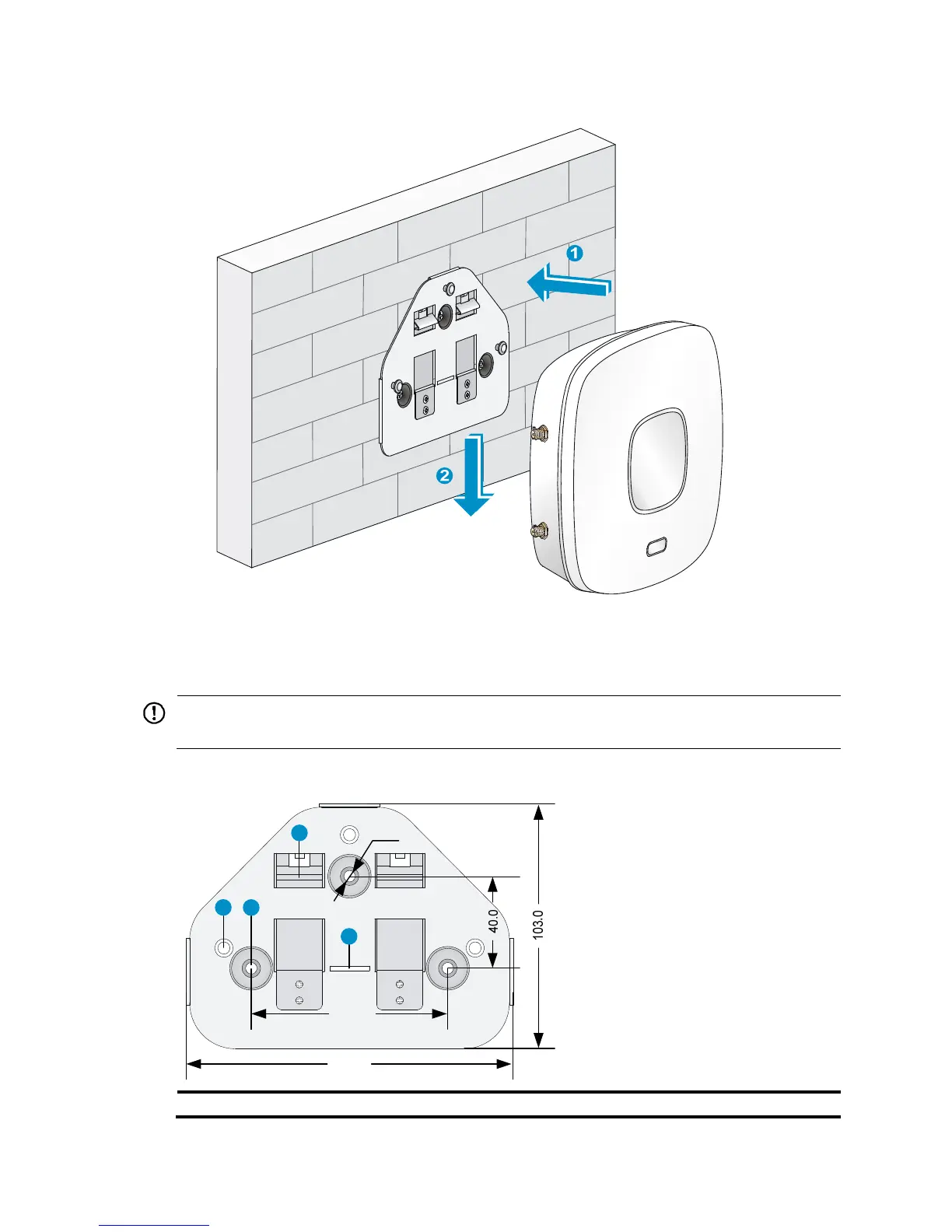

Figure 8 Mounting the AP to the wall mounting bracket
Mounting the AP to a T-rail
IMPORTANT:
The width of the T-rail must be in the range of 16 mm to 28 mm (0.63 in to 1.10 in).
Figure 9 Screw hole locations and sizes (in mm)
(1) Hook (2) Mountin
g
hole (3) Clip (4) Mountin
g
clip
1 2
3
4
Ø5.0
86.0
136.0
