7

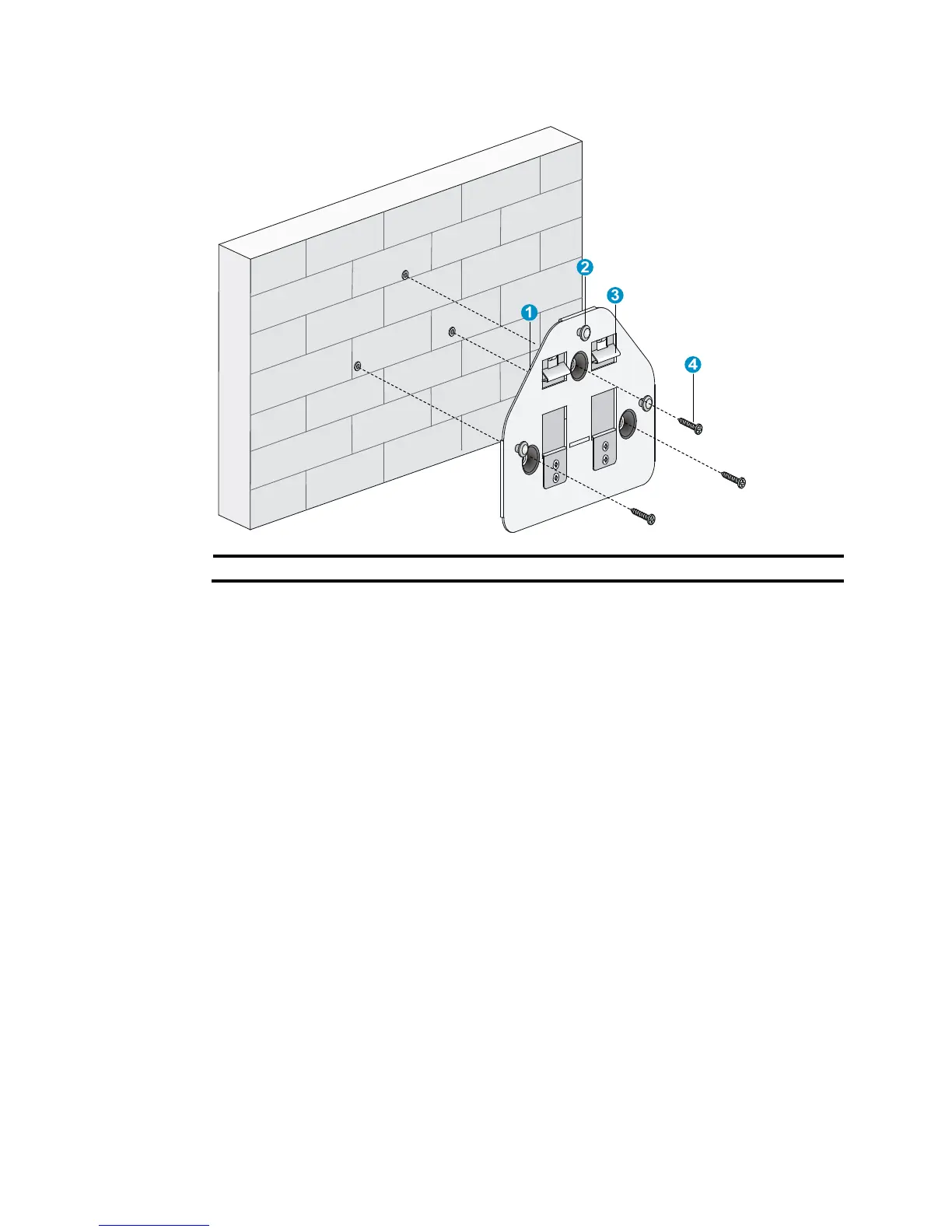

Figure 7 Installing the wall-mounting bracket
(1) Wall-mountin
g
bracket (2) Hook (3) Clip (4) Screw
5. Connect the AP to the network by using an Ethernet cable.
6. Align the mounting keyhole on the rear of the AP over the hook on the wall-mounting bracket.
See Figure 8.
7. Mount the AP
on the hook on the wall-mounting bracket. See callout 1 in Figure 8.
8. Pull down the
AP until it clicks into place. See callout 2 in Figure 8.
