Hewlett-Packard Model 4934A Transmission Impairment Measuring Set
Location:
Serial No.:
Tested by:
Temperature:
Certified by:
Humidity:
Date:

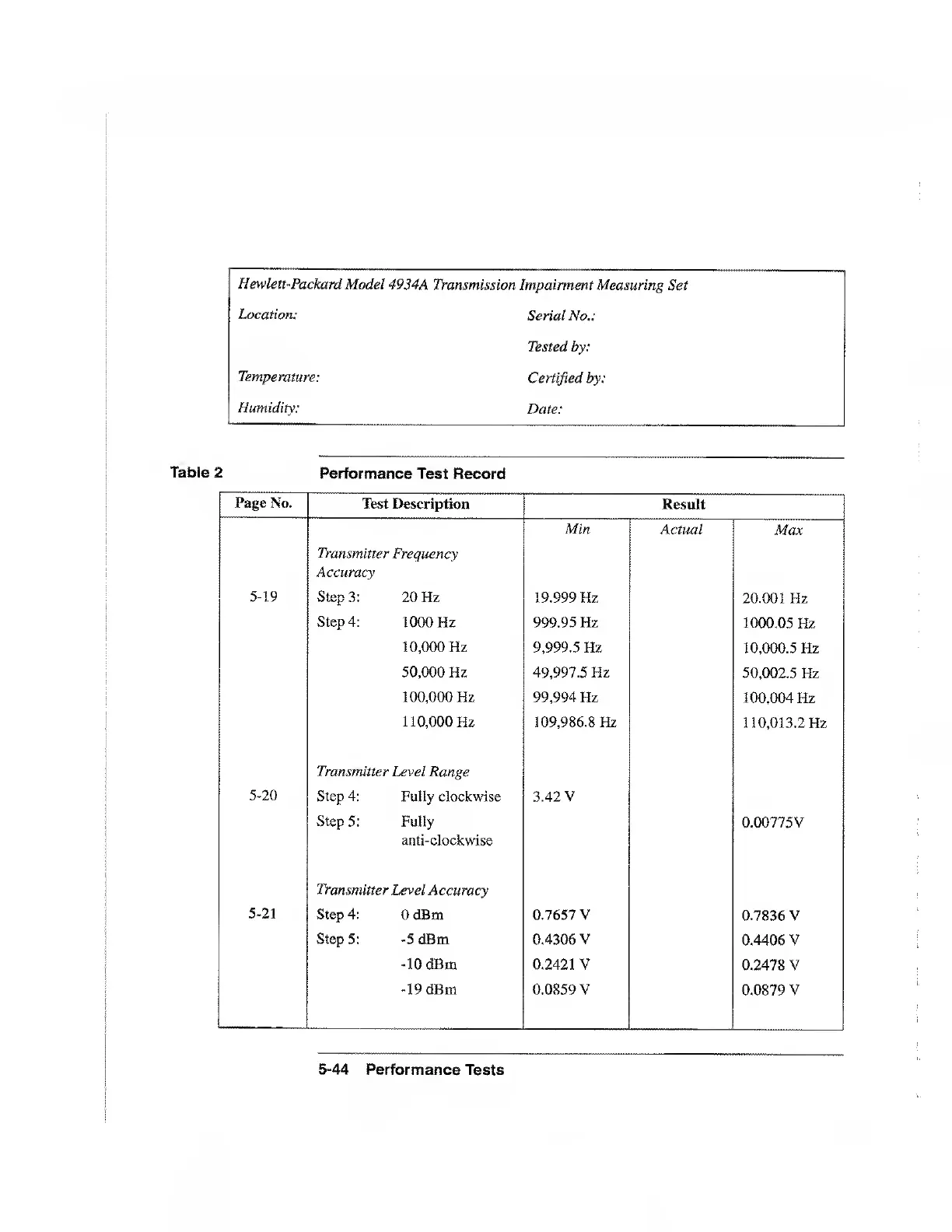

Table 2 Performance Test Record
Page No.
Test Description
Result
Min Actual
Max
Transmitter Frequency
Accuracy
5-19
Step 3: 20 Hz
19.999 Hz
20.001 Hz
Step 4: 1000 Hz
999.95 Hz
1000.05 Hz
10,000 Hz
9,999.5 Hz
10,000.5 Hz
50,000 Hz
49,997.5 Hz
50,002.5 Hz
100,000 Hz 99,994 Hz
100,004 Hz
110,000 Hz 109,986.8 Hz
110,013.2 Hz
Transmitter Level Range
5-20
Step 4: Fully clockwise 3.42 V
Step 5: Fully
anti-clockwise
0.00775V
Transmitter Level Accuracy
5-21
Step 4: 0 dBm
0.7657 V
0.7836 V
Steps: ~5dBm
0.4306 V
0.4406 V
-10 dBm 0.2421 V
0.2478 V
-19 dBm
0.0859 V
0.0879 V
5-44 Performance Tests
