HP 4934A - Page 109

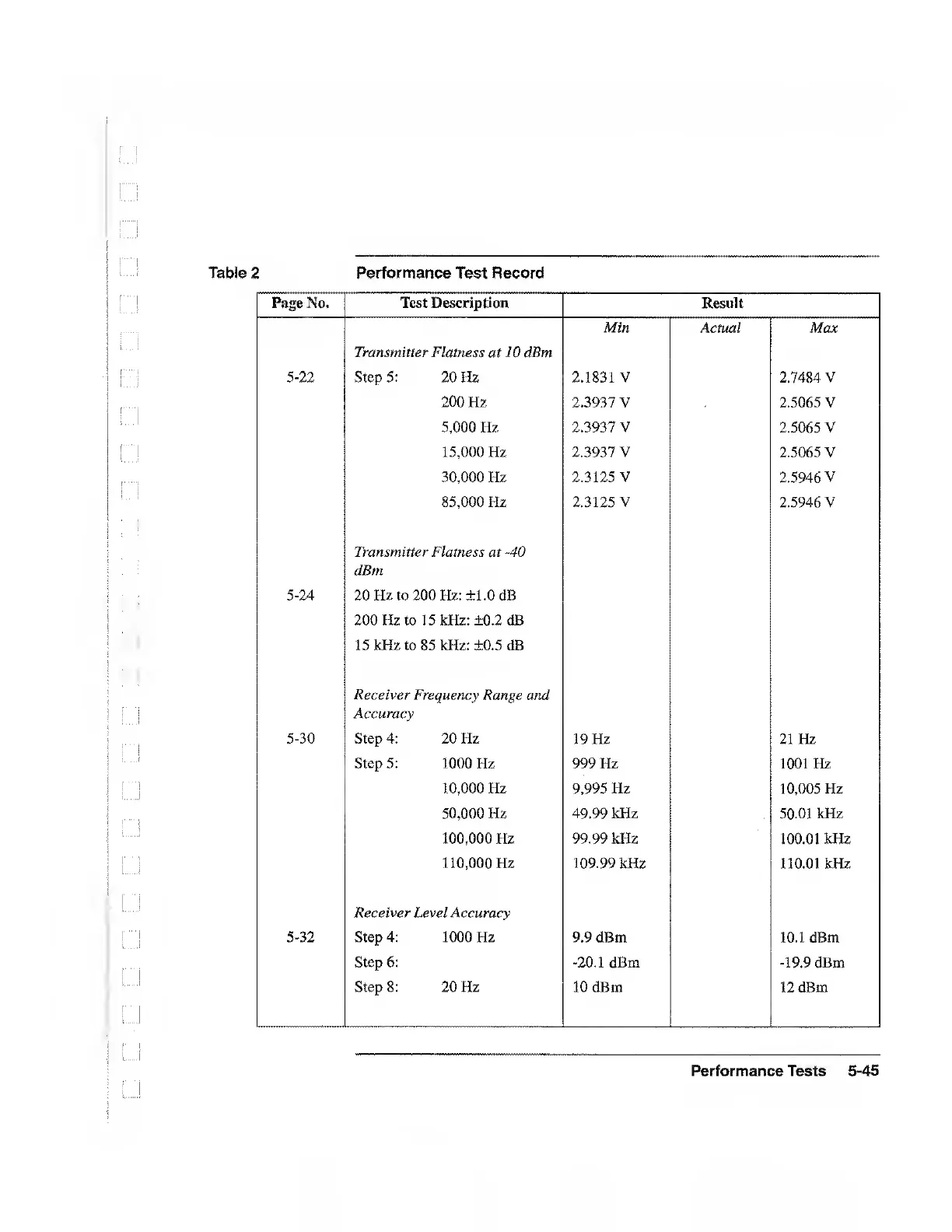

Performance Test Record
Test Description Result
Min Actual Max
Transmitter Flatness at 10 dBm
steps: 20 Hz 2.1831 V 2.7484 V
200 Hz 2.3937 V 2.5065 V
5,000 Hz 2.3937 V
2.5065 V
15,000 Hz
2.3937 V 2.5065 V
30,000 Hz 2.3125 V
2.5946 V
85,000 Hz 2.3125 V
2.5946 V
Transmitter Flatness at -40
dBm
20 Hz to 200 Hz: ±1.0 dB
200 Hz to 15 kHz: ±0.2 dB
15 kHz to 85 kHz: ±0.5 dB
Receiver Frequency Range and
Accuracy
Step 4: 20 Hz
19 Hz 21 Hz
Step 5: 1000 Hz 999 Hz 1001 Hz
10,000 Hz
9,995 Hz 10,005 Hz
50,000 Hz 49.99 kHz 50.01 kHz
100,000 Hz 99.99 kHz
100.01 kHz
110,000 Hz 109.99 kHz 110.01 kHz
Receiver Level Accuracy
Step 4: 1000 Hz
9.9 dBm 10.1 dBm
Step 6: "20.1 dBm
-19.9 dBm
Step 8: 20 Hz
10 dBm 12 dBm
Performance Tests 5-45
