HP 4934A - Page 110

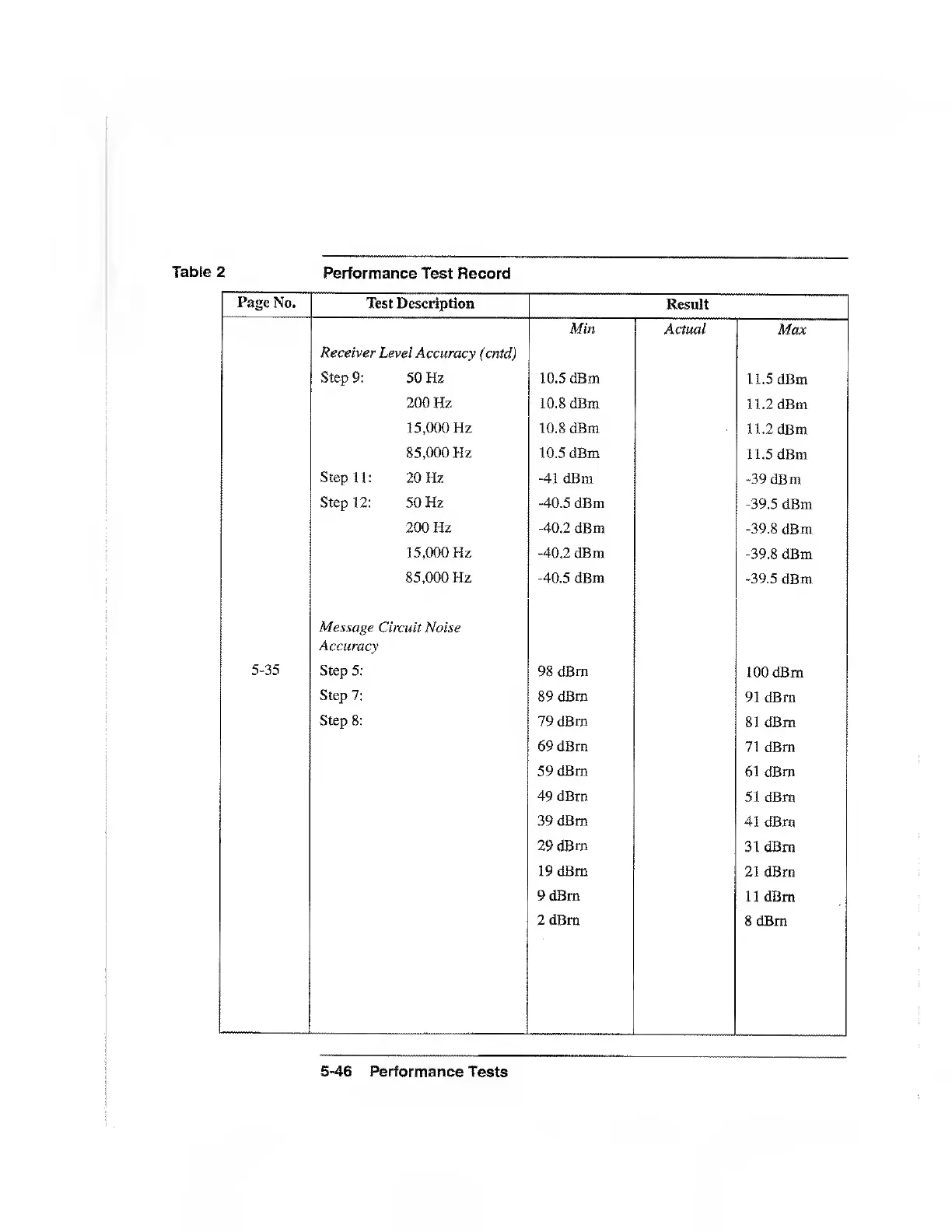

Table 2 Performance Test Record
Page No.
Test Description
Result
Min
Actual
Max
Receiver Level Accuracy (cntd)
Step 9: 50 Hz
10.5 dBm
11.5 dBm
200 Hz
10.8 dBm
11.2 dBm
15,000 Hz
10.8 dBm
11.2 dBm
85,000 Hz 10.5 dBm
11.5 dBm
Step 11: 20 Hz
-41 dBm
-39 dBm
Step 12: 50 Hz
-40.5 dBm
-39.5 dBm
200 Hz
-40.2 dBm
-39.8 dBm
15,000 Hz -40.2 dBm
-39.8 dBm
85,000 Hz
-40.5 dBm
-39.5 dBm
Message Circuit Noise
Accuracy
5^35
Step 5;
98 dBm
100 dBm
Step 7:
89 dBm
91 dBm
Step 8:
79 dBm
81 dBm
69 dBm
71 dBm
59 dBm
61 dBm
49 dBm
51 dBm
39 dBm
41 dBm
29 dBm
31 dBm
19 dBm
21 dBm
9 dBm
11 dBm
2 dBm
8 dBm
5-46 Performance Tests
