HP Omnibook 6000/6100 Removal and Replacement 2-25

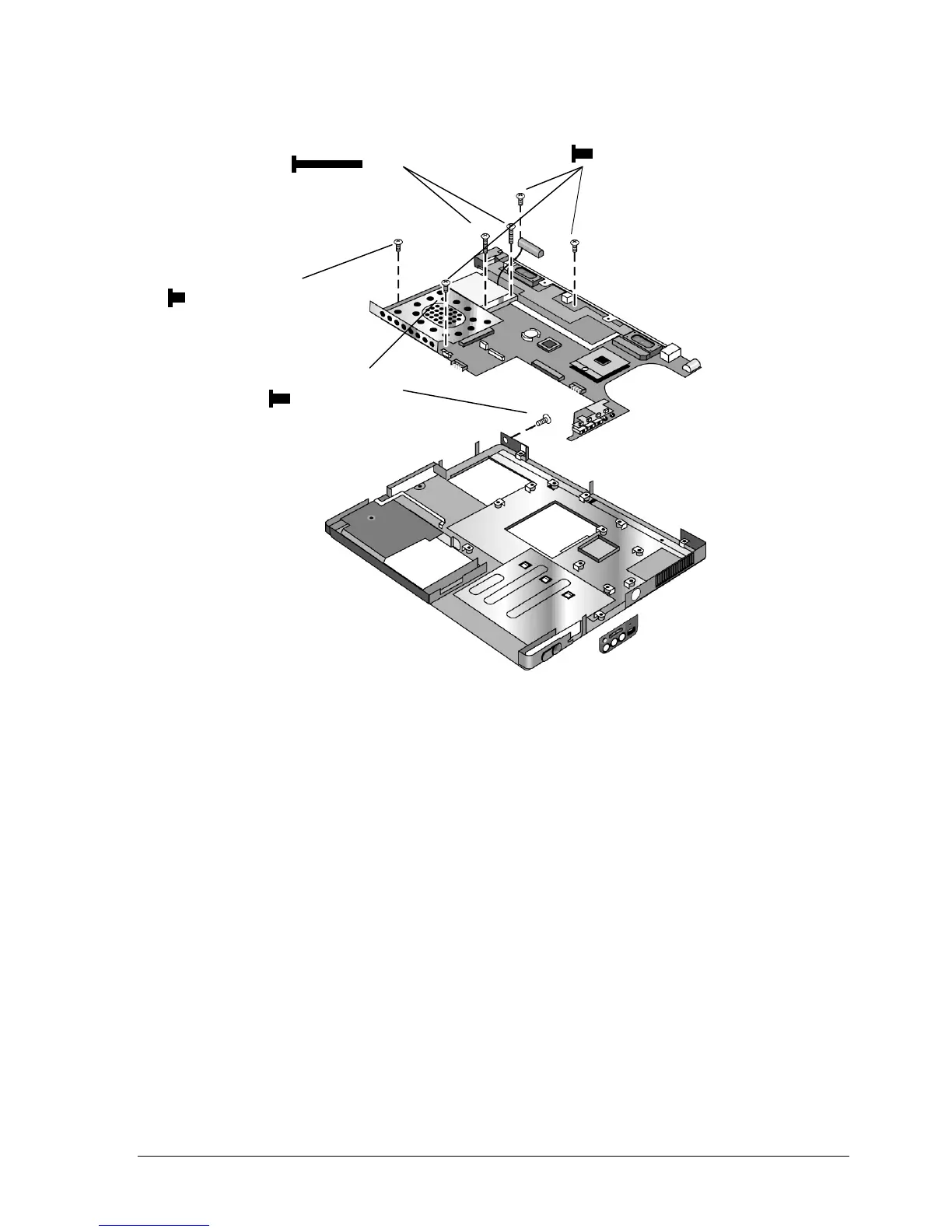

Figure 2-17. Removing the Motherboard: Omnibook 6100 Models
Omnibook 6000 Models Only
Perform steps 1 and 2 at the beginning of this topic.
1. From the bottom of the computer, remove the three screws from the bottom case.
2. From the top of the computer, remove the six screws that attach the motherboard to the bottom
case.
3. Bend the casing that surrounds the audio connectors outward slightly to release the connectors.
4. Lift the motherboard off of the bottom case.
Screws, M2x15mm (2)
Screws, M2.5x4mm (3)
Screw, M2.5x3mm
Screw, M2x3mm
(Nearest to edge)
