HP Omnibook 6000/6100 Product Information 1-3
Features
The following three illustrations show the computer’s main external features. For an exploded view of
the computer, see page 4-2.

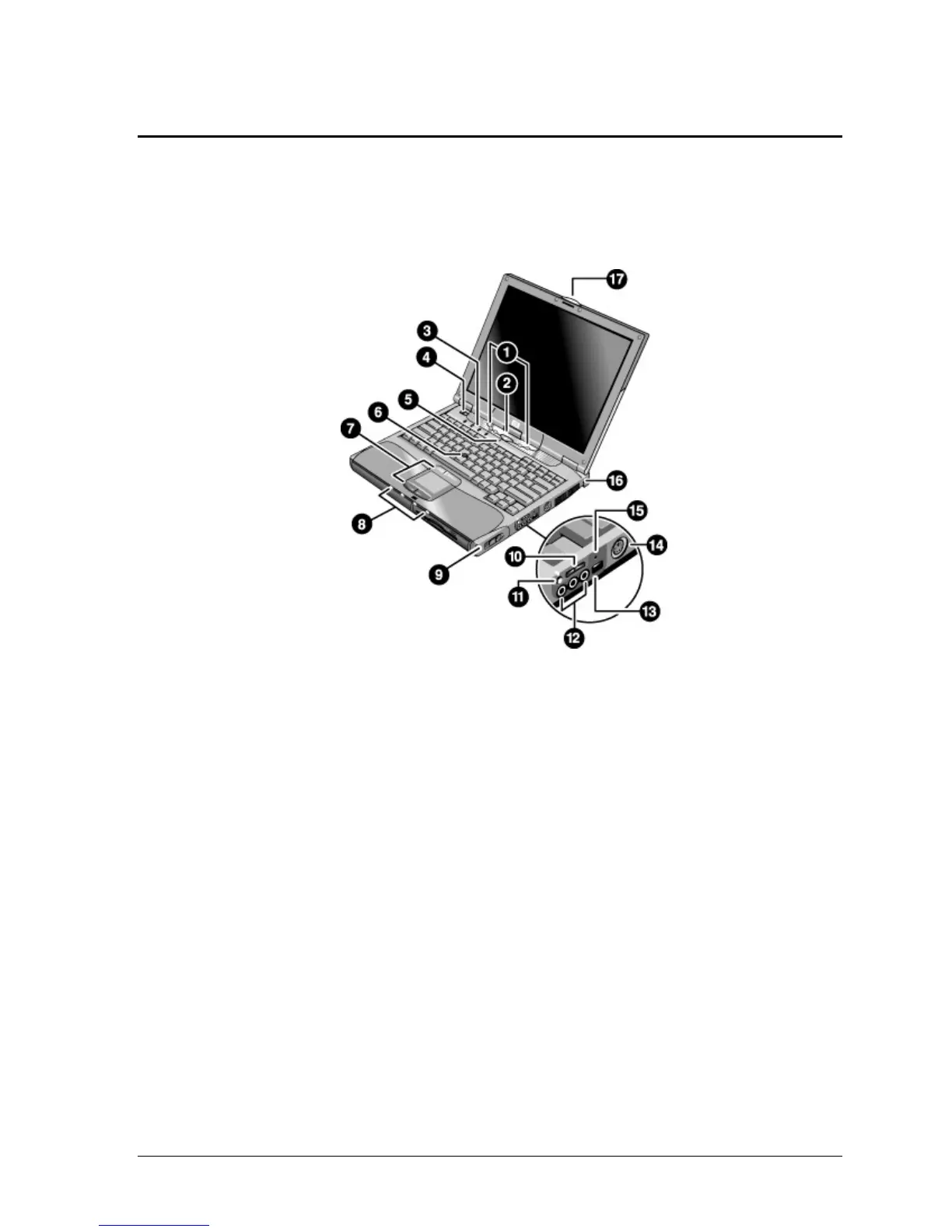

Figure 1-1. Omnibook — Front View
1. One-Touch buttons (on Omnibook 6100
models only).
2. Sleep button. Suspends and resumes operation.
3. Keyboard status lights (left to right: Caps Lock,
Num Lock, Keypad Lock, Scroll Lock).
4. Power slide button. Turns the computer on and off.
5. Built-in microphone.
6. Pointing stick (pointing device).
7. Touch pad, click and scroll buttons.
8. Main status lights (left to right): power mode, hard
disk activity, charging status for main battery, and
charging status for secondary battery.
9. Module eject latch.
10. Volume control.
11. Audio-off button and audio-off light.
12. Audio jacks (left to right): audio out
(headphones), external microphone, audio in*.
13. Infrared port.
14. S-video port (TV-out) (on Omnibook 6100
models only).
15. System-off switch.
16. Kensington lock slot (security connector).
17. Computer open/close latch.
*This diagram represents the Omnibook 6100 models. Placement varies slightly on Omnibook 6000 models.
