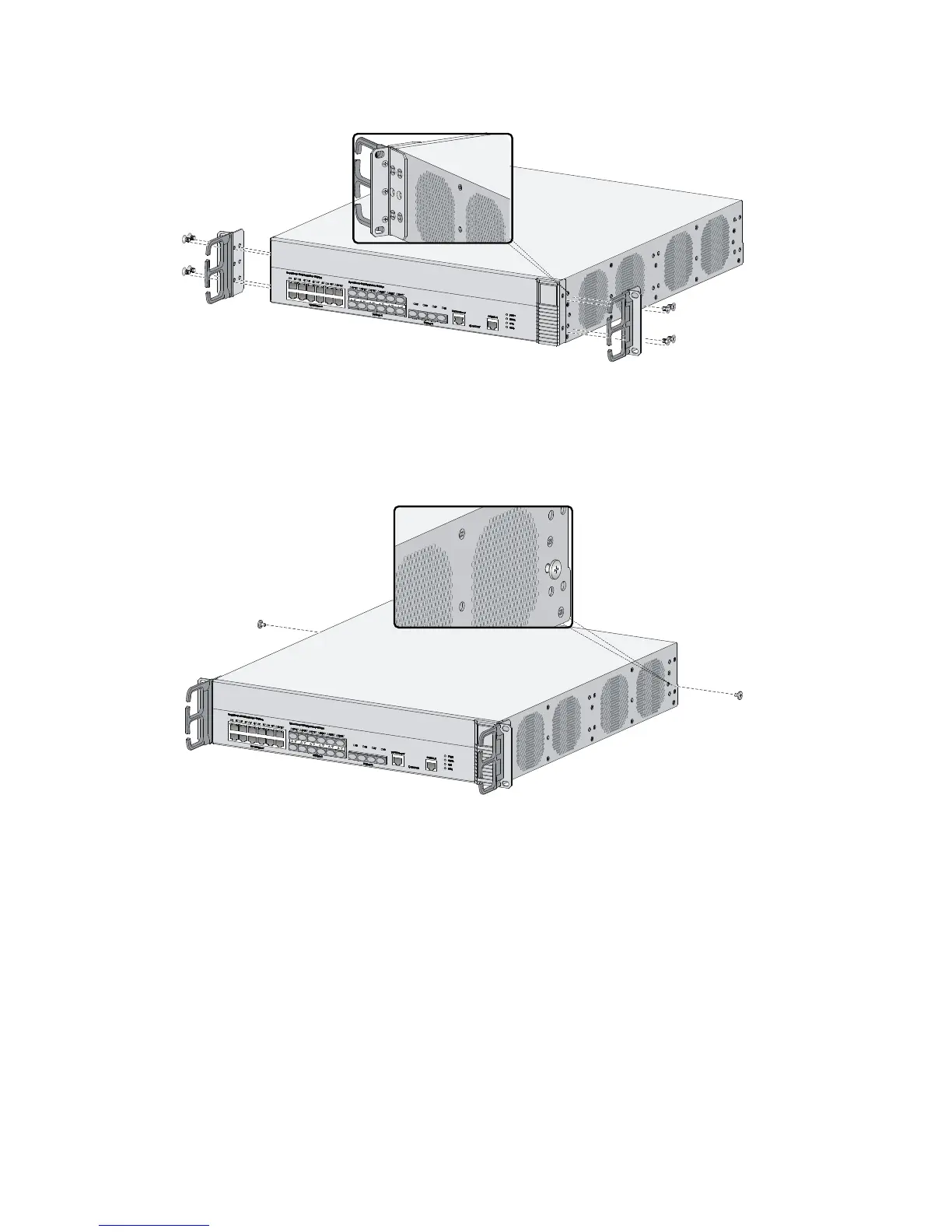

Figure 8 Installing the front mounting brackets
4. Attach the weight-bearing screws packed with the rear mounting brackets to both sides of the
device.
The rear mounting brackets work with the weight-bearing screws to support the device.
Figure 9 Installing the weight-bearing screws
5. Determine the device installation position in the rack and use screws and cage nuts to attach the
rear mounting brackets to the rear rack posts.
