Appendix A Chassis views and technical
specifications
The figures in this document are for illustration only.
Chassis views

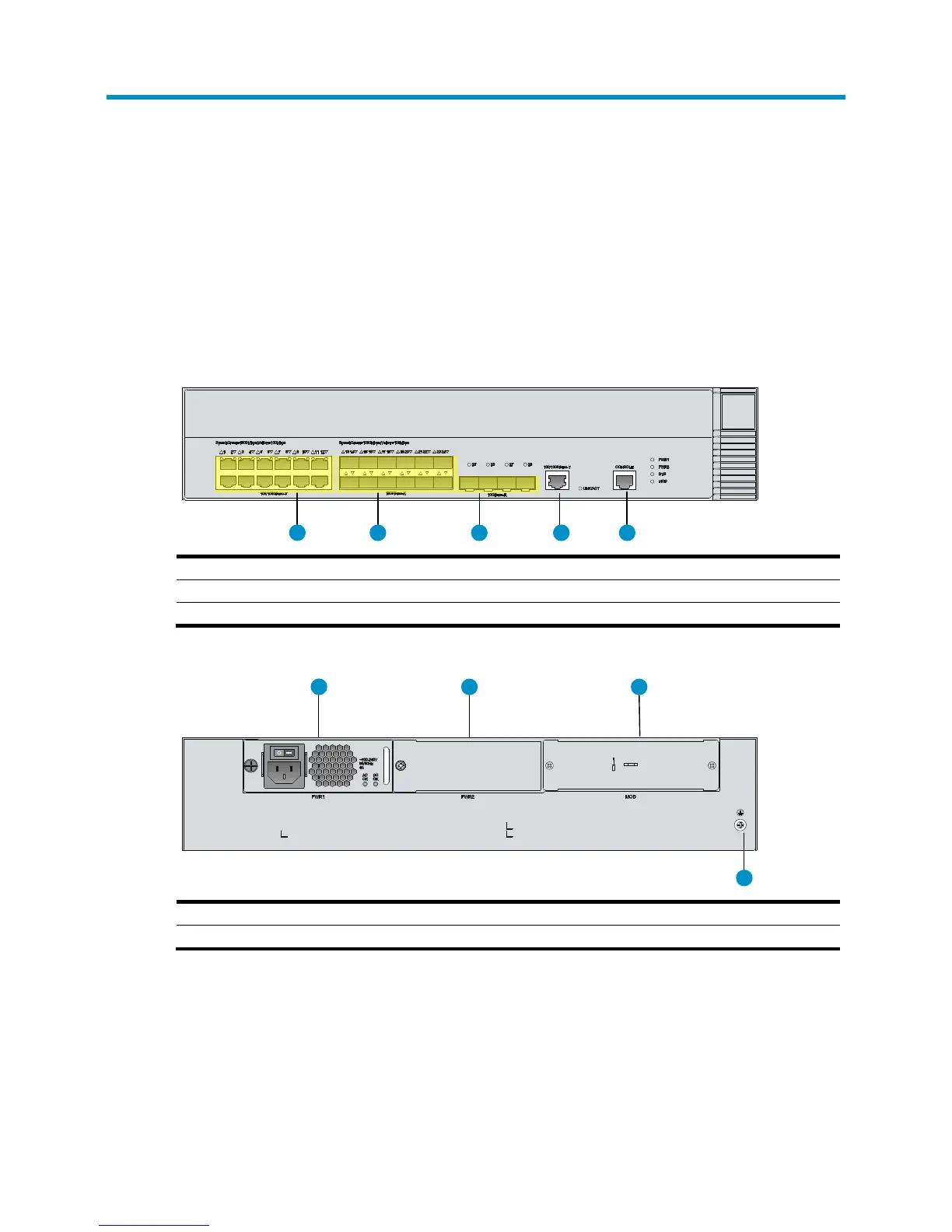

Figure 2 Front view
(1) 100/1000Base-T autosensing Ethernet ports (1 to 12)
(2) 100Base-FX/1000Base-X SFP ports (13 to 24)
(3) 10GBase-R SFP+ ports (25 to 28)
(4) 100/1000 Base-T management Ethernet ports
(5) Console port
Figure 3 Rear view
(1) Power supply slot (PWR1, with an AC power supply installed)
(2) Power supply slot (PWR2)
(3) Expansion slot
(4) Grounding screw
1
2 3
4
5
1 2 3
4
