Appendix B LEDs
Panel LEDs

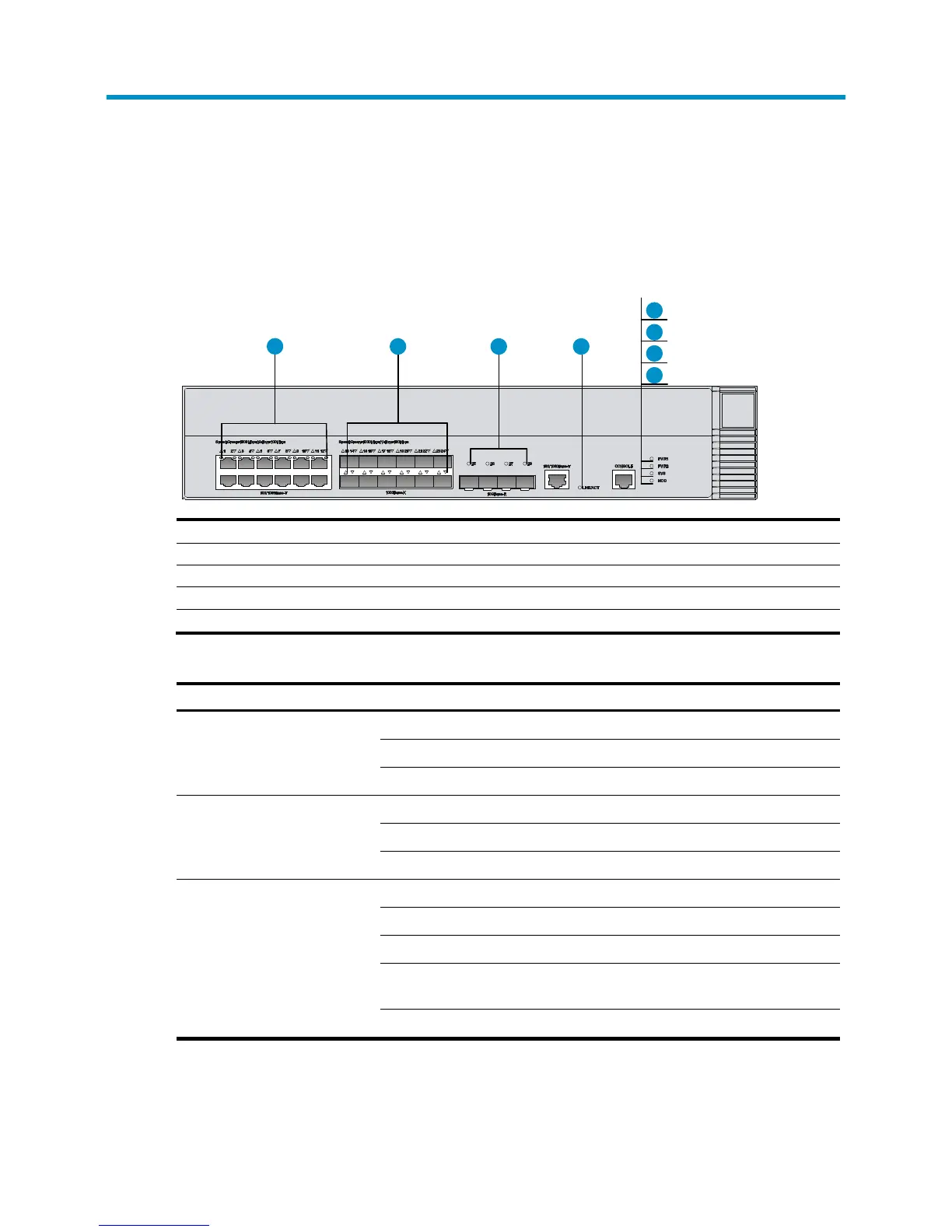

Figure 9 LEDs
(1) 100/1000Base-T autosensing Ethernet port status LEDs
(2) 100Base-FX/1000Base-X SFP port status LEDs
(3) 10GBase-R SFP+ port status LEDs
(4) 100/1000 Base-T out-of-band management Ethernet port status LEDs (LINK/ACT)
(5) Power supply 1 status LED (PWR1)
(6) Power supply 2 status LED (PWR2)
(7) System status LED (SYS)
(8) Expansion slot status LED (MOD)
Table 24 LED description
LED
Mark
Status
Description
Power supply 1 status
LED
PWR1
Steady green Power supply 1 is operating correctly.
Steady yellow Power supply 1 is faulty
Off No power supply is installed to the slot.
Power supply 2 status
LED
PWR2
Steady green Power supply 2 is operating correctly.
Steady yellow Power supply 2 is faulty.
Off No power supply is installed to the slot.
System status LED SYS
Steady green The system is starting up.
Flashing green The system is operating correctly.
Flashing green The system is downloading files.
Steady yellow
The system has failed to pass the power on self
test (POST) or has detected a serious fault.
Off No power input is present.
1 2 3 4
5
6
7
8
