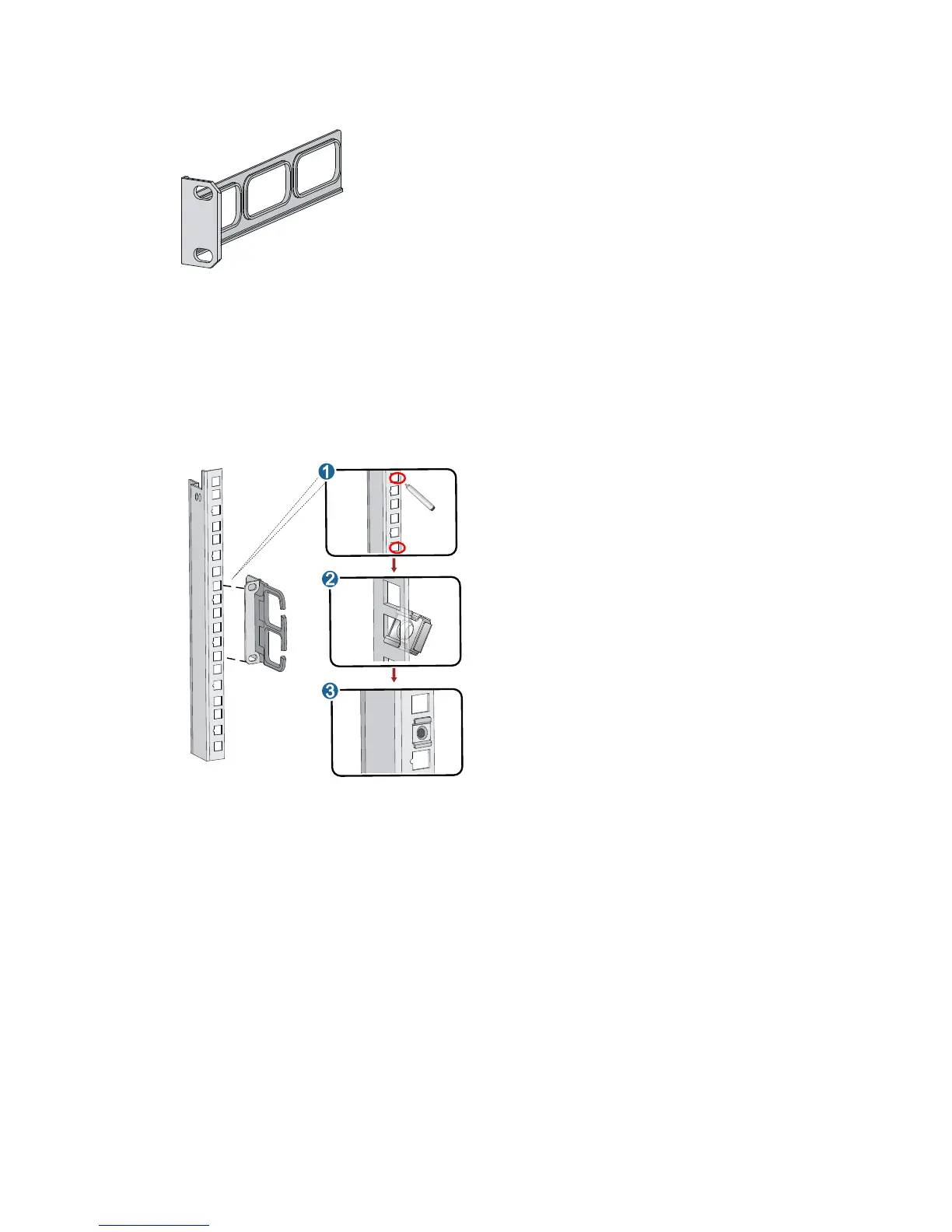

Figure 6 Rear mounting bracket
Installing the device by using front and rear mounting brackets
1. Wear the ESD-preventive wrist strap and make sure the rack is well grounded and sturdy enough.
2. Mark the position on the rack for installing the mounting brackets, and install cage nuts.
Figure 7 Installing cage nuts
3. Use the screws packed with the front mounting brackets to secure the front mounting brackets to
both sides of the device.
