Installing the device by using front mounting brackets and a
rack shelf
The rack shelf is an optional component that needs to be separately ordered if needed. The rack shelf in
this example is for illustration only.
To install the device by using front mounting brackets and a rack shelf:
1. Wear the ESD-preventive wrist strap and verify that the rack is well grounded and sturdy enough.
2. Use the screws packed with the front mounting brackets to attach the front mounting brackets to the
device, as shown in Figure 8.
3. Attach the rack shelf to the appropriate position of the rack. See Figure 12 for reference.

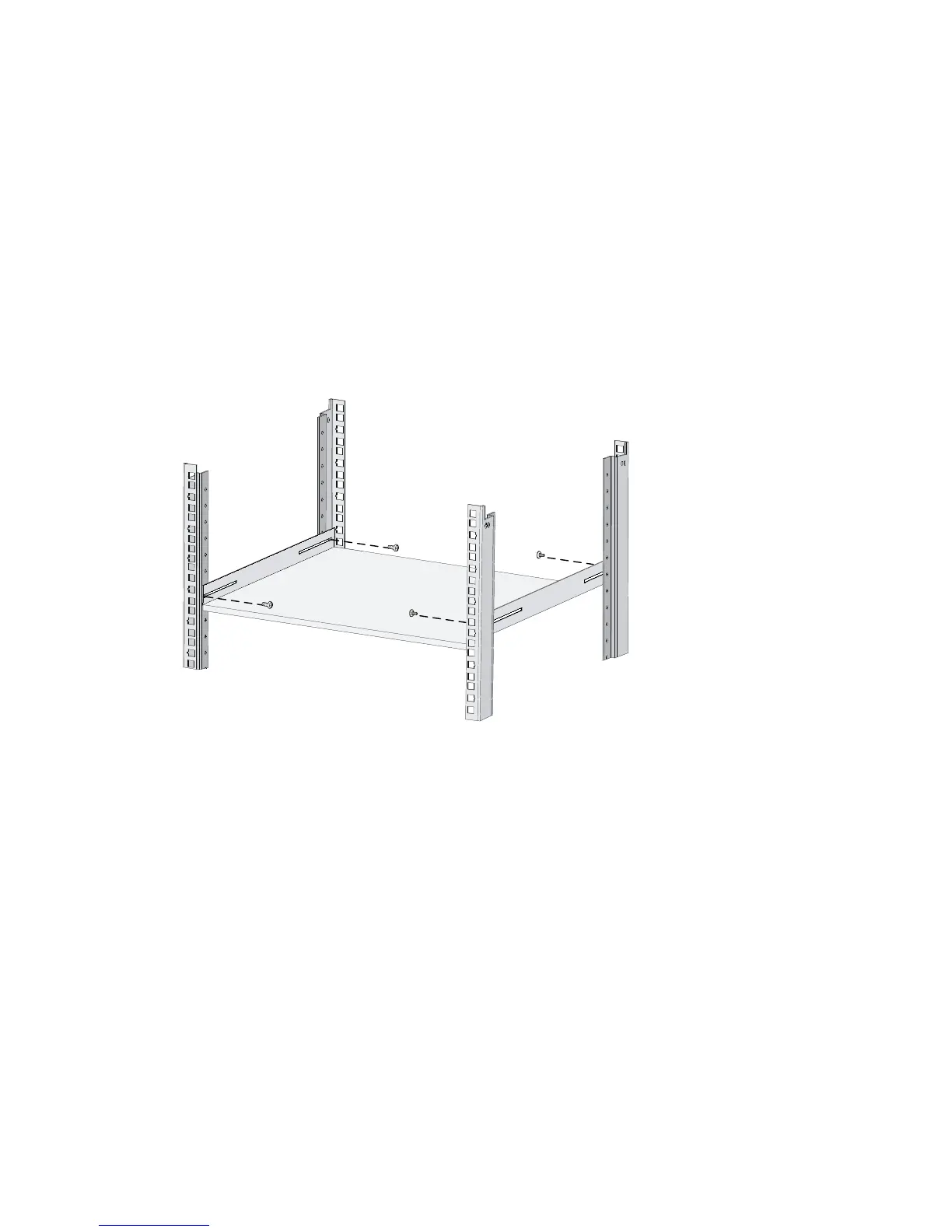

Figure 12 Installing the rack shelf
4. Push the device to the rack along the rack shelf, and attach the front mounting brackets on the
device to the front rack posts by using screws and cage nuts, as shown in Figure 13.
