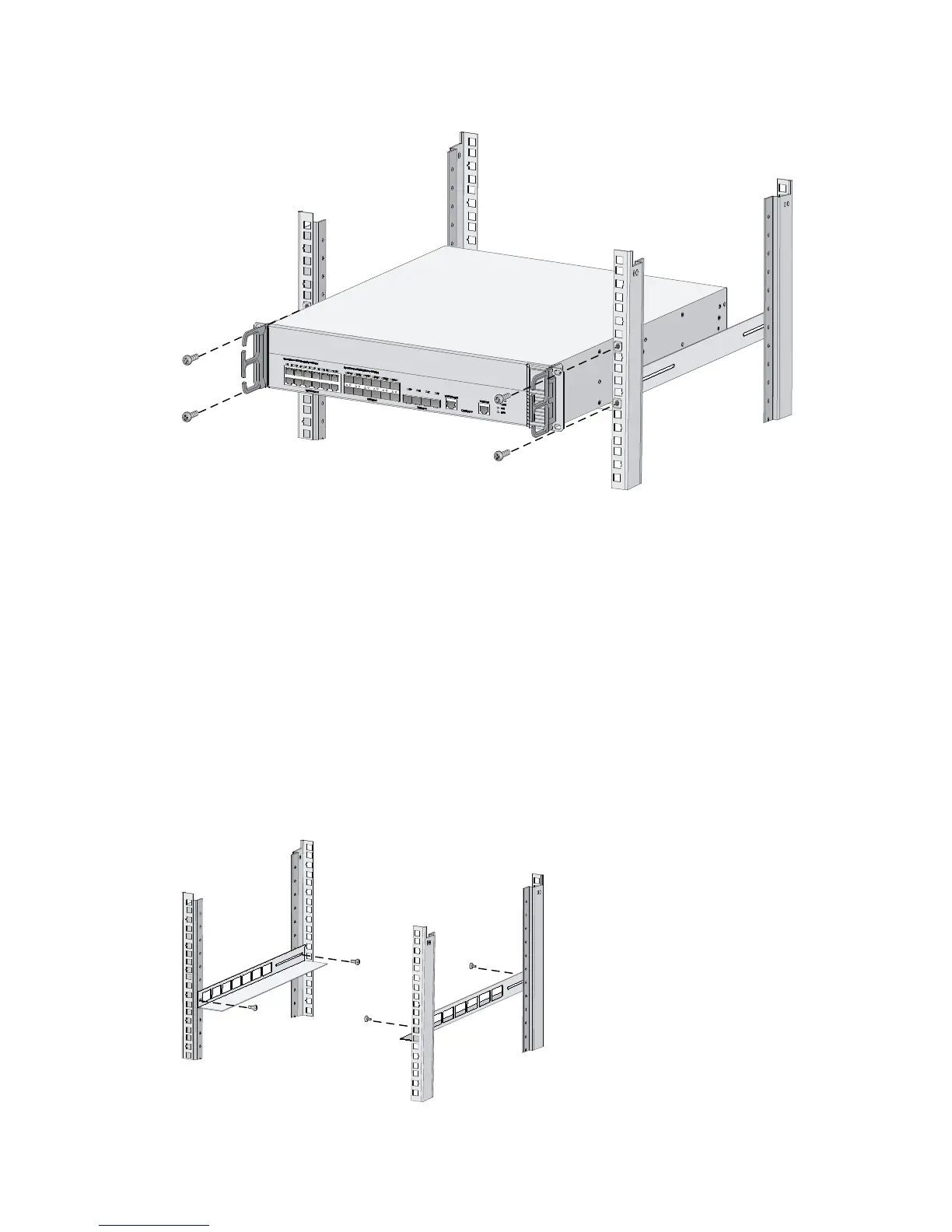

Figure 13 Installing the device to the rack
Installing the device by using front mounting brackets and slide
rails
The slide rails are optional components that need to be separately ordered if needed. The slide rails in
this example are for illustration only.
To install the device by using front mounting brackets and slide rails:
1. Wear the ESD-preventive wrist strap and verify that the rack is well grounded and sturdy enough.
2. Use the screws packed with the front mounting brackets to attach the front mounting brackets to the
device, as shown in Figure 8.
3. Install the slide rails to the rack. See Figure 14 for reference.
Figure 14 Installing slide rails
